Removal And Installation: Notes

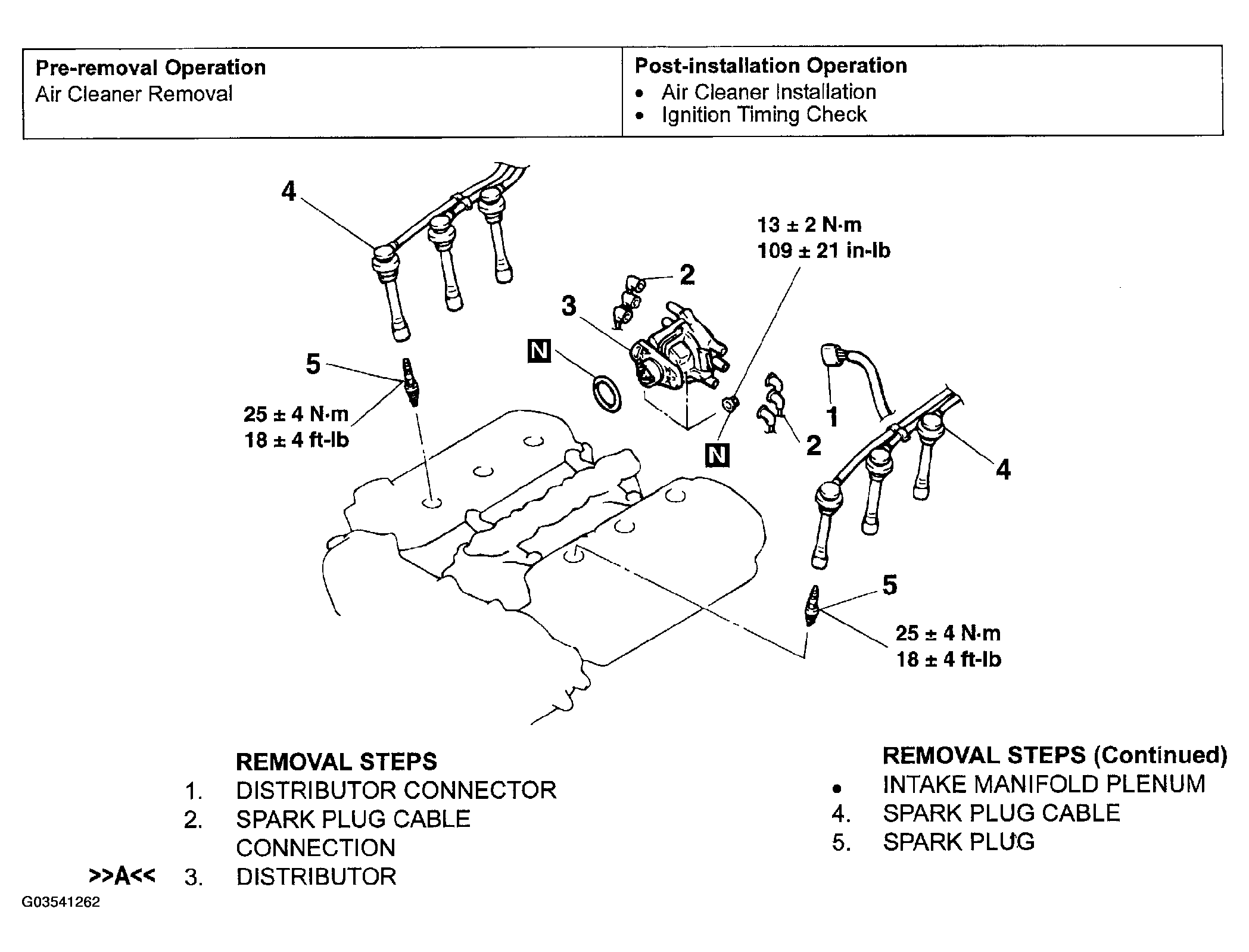

Fig 1: Removing/Installing Distributor Assembly Parts

G03541262

Courtesy of DAIMLERCHRYSLER CORP.
