Windshield: Testing and Inspection

WINDSHIELD WASHERS

Windshield Washer Diagnosis:

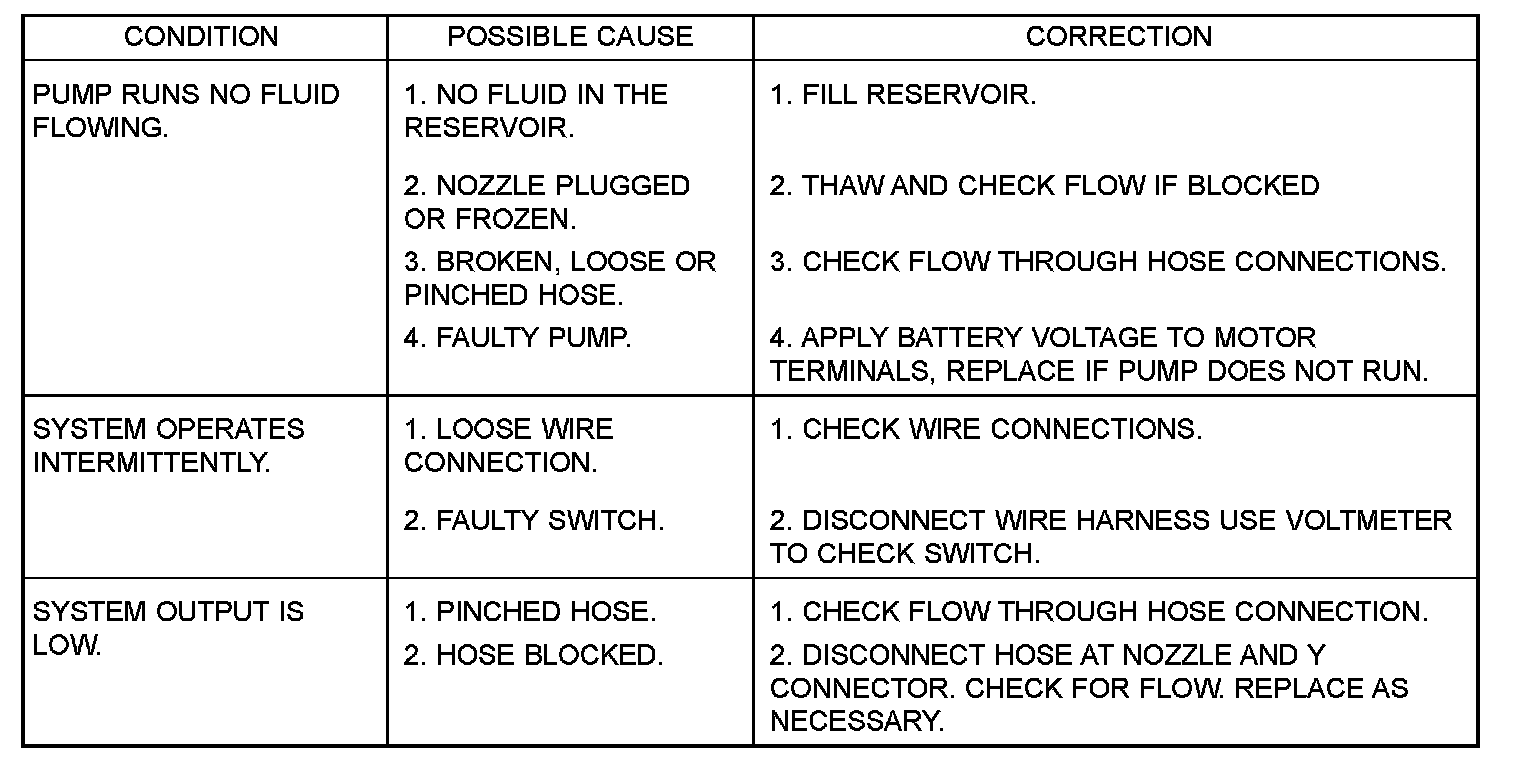

Whenever a windshield washer malfunction occurs, first verify that the windshield washer wire harness is properly connected to all connectors before starting normal diagnosis and repair procedures Refer to the WINDSHIELD WASHER DIAGNOSIS table.
