Installation - 2.7L

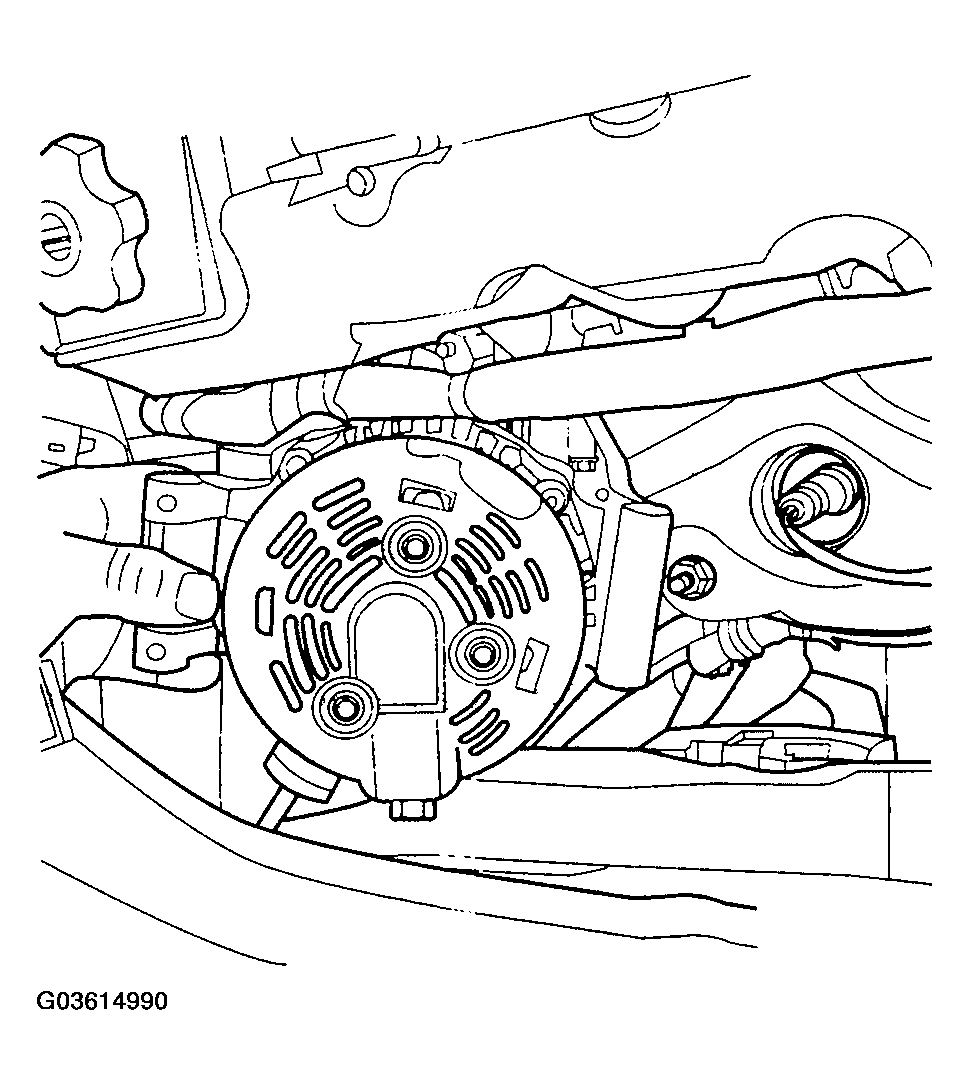

  1. Install generator (Figure).
  2. Install the 2 upper bolts but do not tighten.
  3. Install the engine dip stick tube.
  4. Connect the A/C pressure switch and A/C clutch electrical connectors.

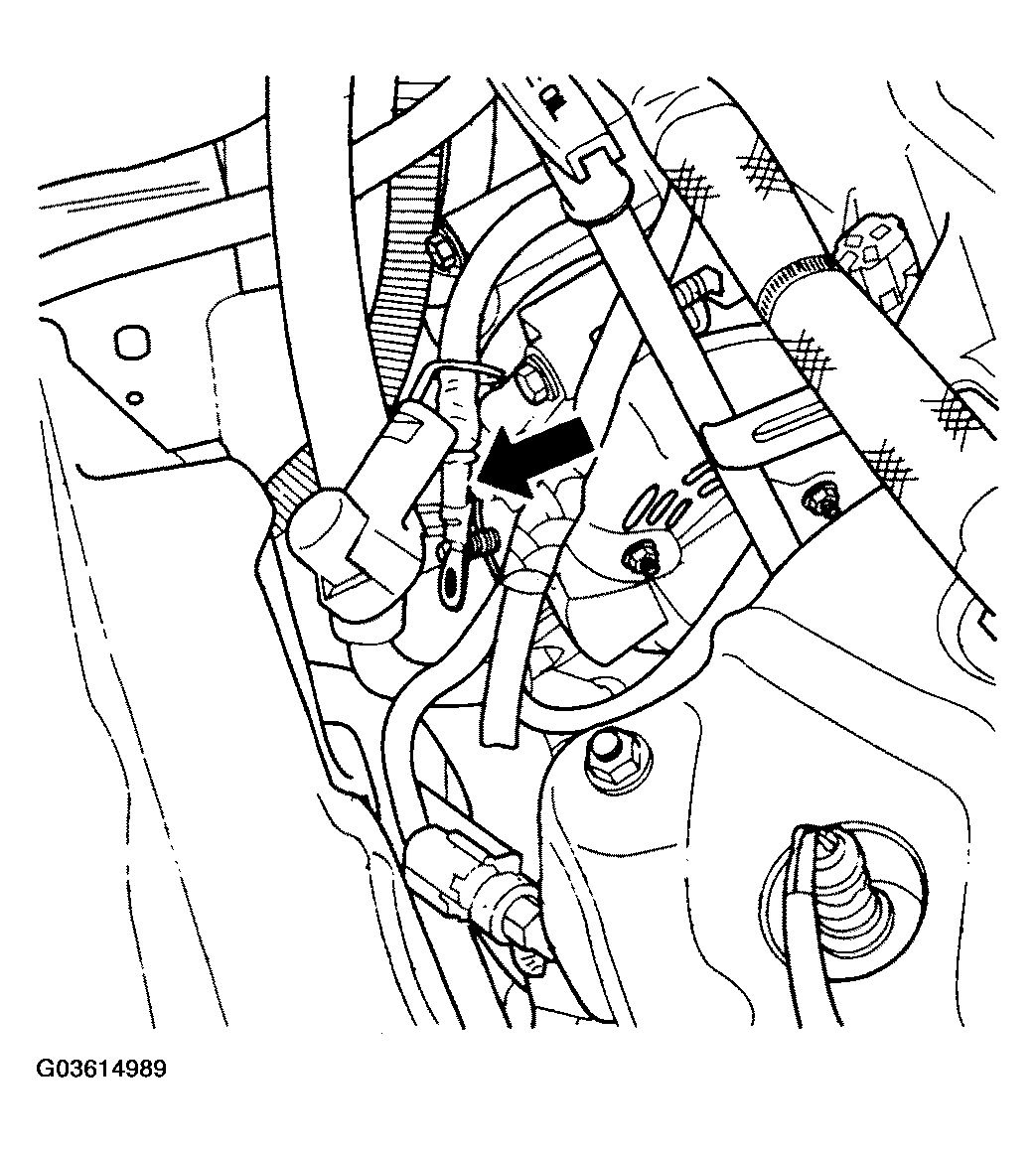

  5. Connect the B+ terminal and field connectors (Figure).
  6. Raise vehicle and support.
  7. Install the lower bolt and tighten.
  8. Install the accessory drive belt, refer to the COOLING - EXCEPT COUPE .
  9. Install the accessory drive splash shield.
  10. Lower the vehicle.
  11. Tighten the 2 upper mounting bolts.
  12. Connect the negative battery cable.
