Power Window Switch: Removal

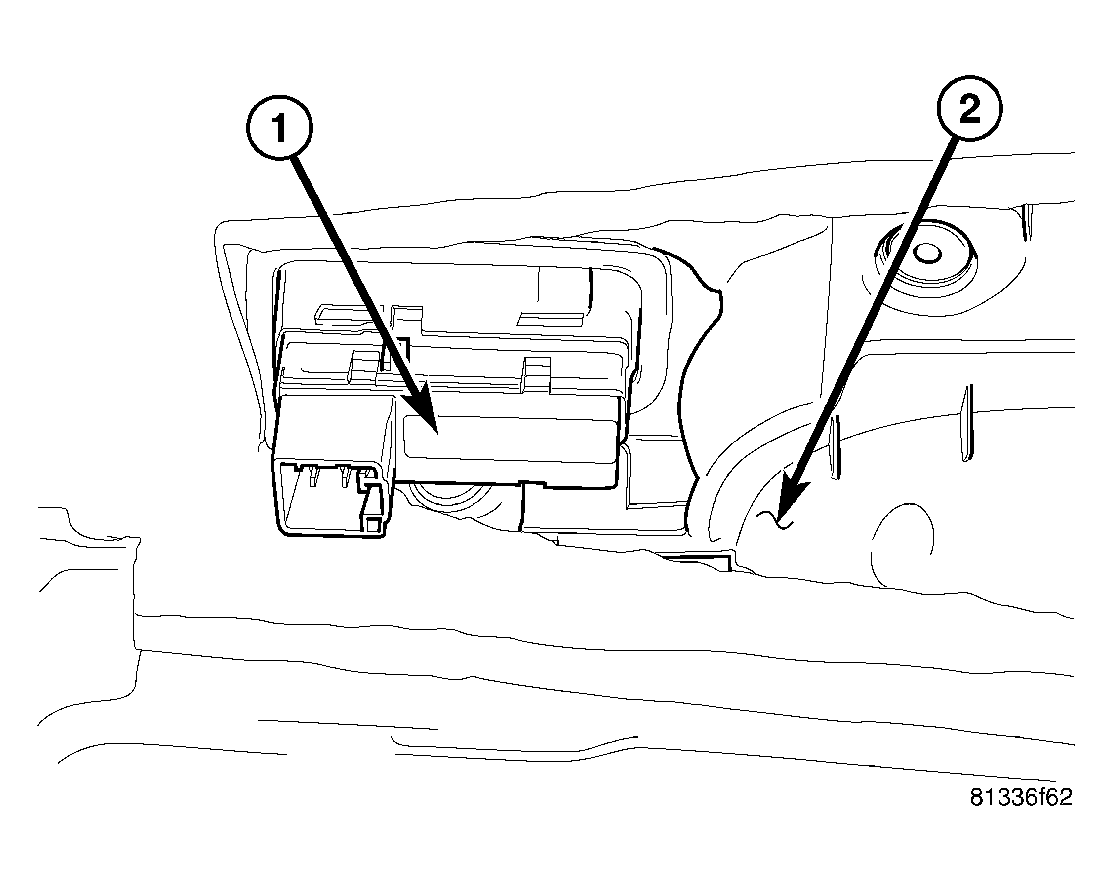

Fig 1: View Of Switch At Door Trim Panel
GC0016484Courtesy of DAIMLERCHRYSLER CORP.
NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE) .
  1. Disconnect and isolate the battery negative cable.
  2. Remove rear door trim panel (Refer to BODY/DOORS - REAR/TRIM PANEL - REMOVAL) .
  3. Remove switch (1) from door trim panel (2).
