Schematics And Diagrams

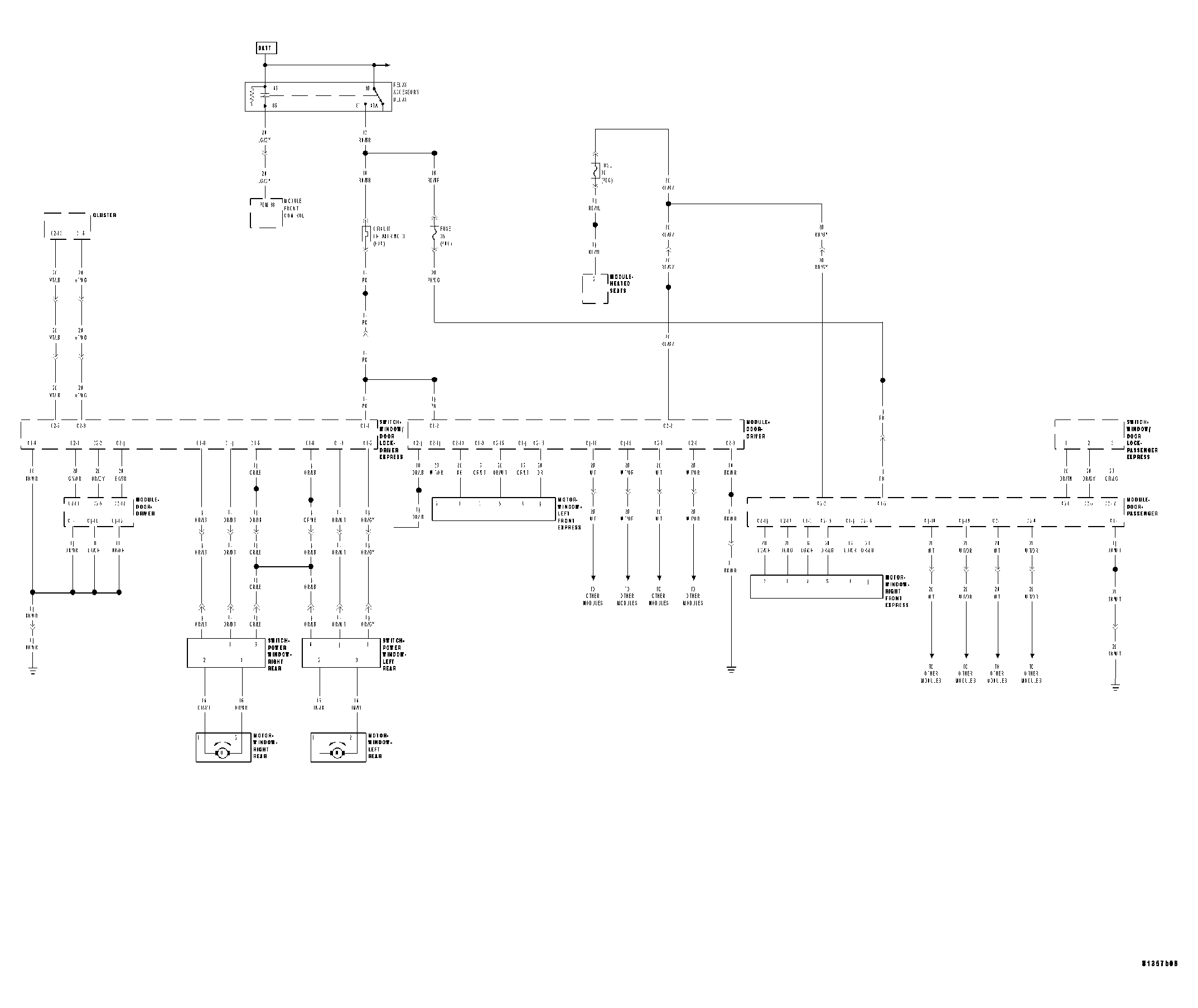

Fig 1: POWER WINDOW CIRCUIT DIAGRAM
GC0016423Courtesy of DAIMLERCHRYSLER CORP.
