Sensor-Brake Pressure: Installation

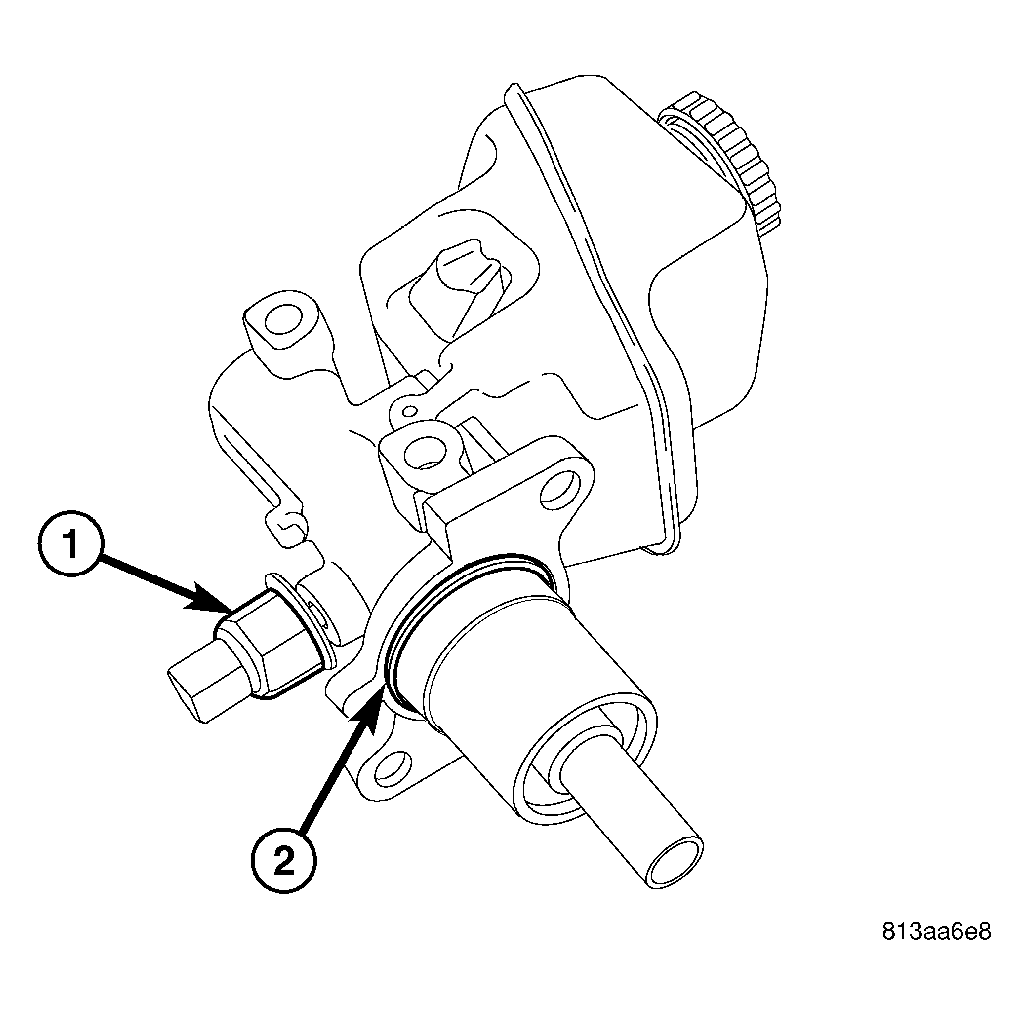

Fig 1: PRESSURE SWITCH AND VACUUM SEAL

Courtesy of DAIMLERCHRYSLER CORP.

Install pressure switch (1) on bottom of master cylinder. Tighten switch to 28 N.m (250 in. lbs.) torque.

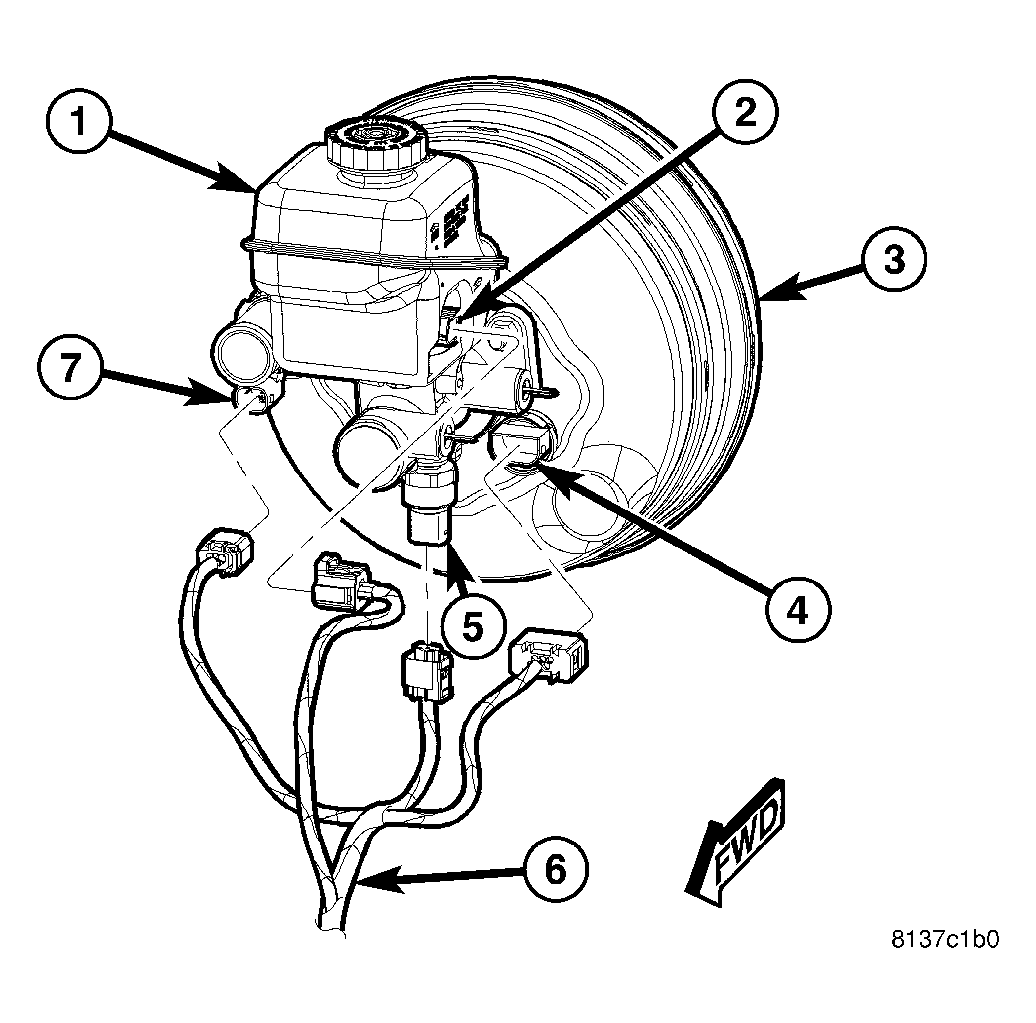

Fig 2: ESP WIRING CONNECTIONS AT BOOSTER AND MASTER
Courtesy of DAIMLERCHRYSLER CORP.
Connect wiring harness (6) connector to pressure switch (5).

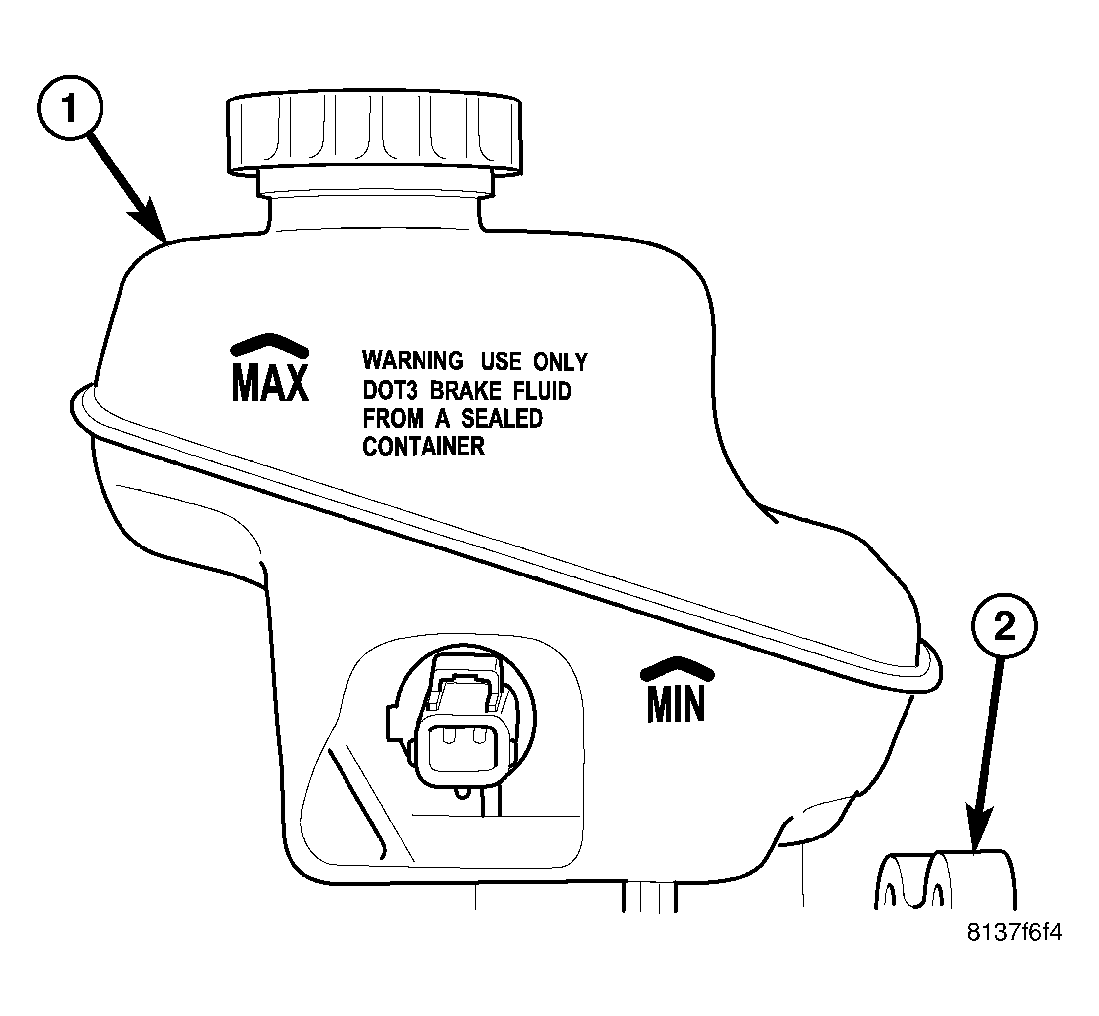

Fig 3: RESERVOIR FLUID LEVEL MARKINGS
Courtesy of DAIMLERCHRYSLER CORP.
Fill master cylinder fluid reservoir (1) with clean, fresh Mopar(R) Brake Fluid or equivalent.
Perform Verification Test and clear any faults. (Refer to BRAKES - DIAGNOSIS AND TESTING)
