Sensor-Steering Angle: Removal

WARNING: BEFORE SERVICING THE STEERING COLUMN THE AIRBAG SYSTEM MUST BE DISARMED. REFER TO RESTRAINTS - SERVICE INFORMATION FOR SERVICE PROCEDURES. FAILURE TO DO SO MAY RESULT IN ACCIDENTAL DEPLOYMENT OF THE AIRBAG AND POSSIBLE PERSONAL INJURY.

CAUTION: All fasteners must be torqued to specification to ensure proper operation of the steering column.

Position the front wheels straight ahead .
Fully extend or pull out adjustable steering column.
Disconnect the negative (ground) cable from the battery.

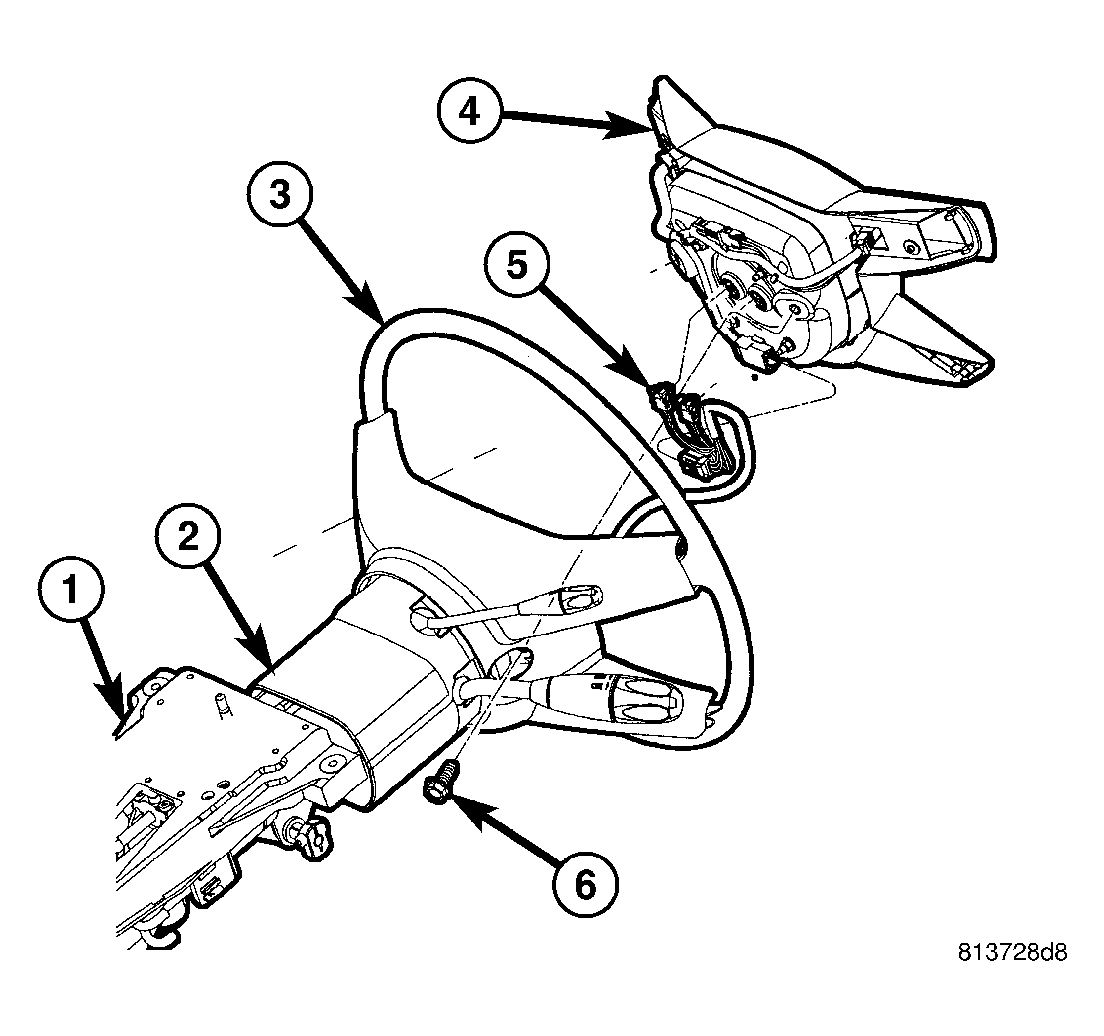

Fig 1: AIR BAG
Courtesy of DAIMLERCHRYSLER CORP.
Remove the airbag (4), (Refer to ELECTRICAL/RESTRAINTS/DRIVER AIRBAG - REMOVAL) .

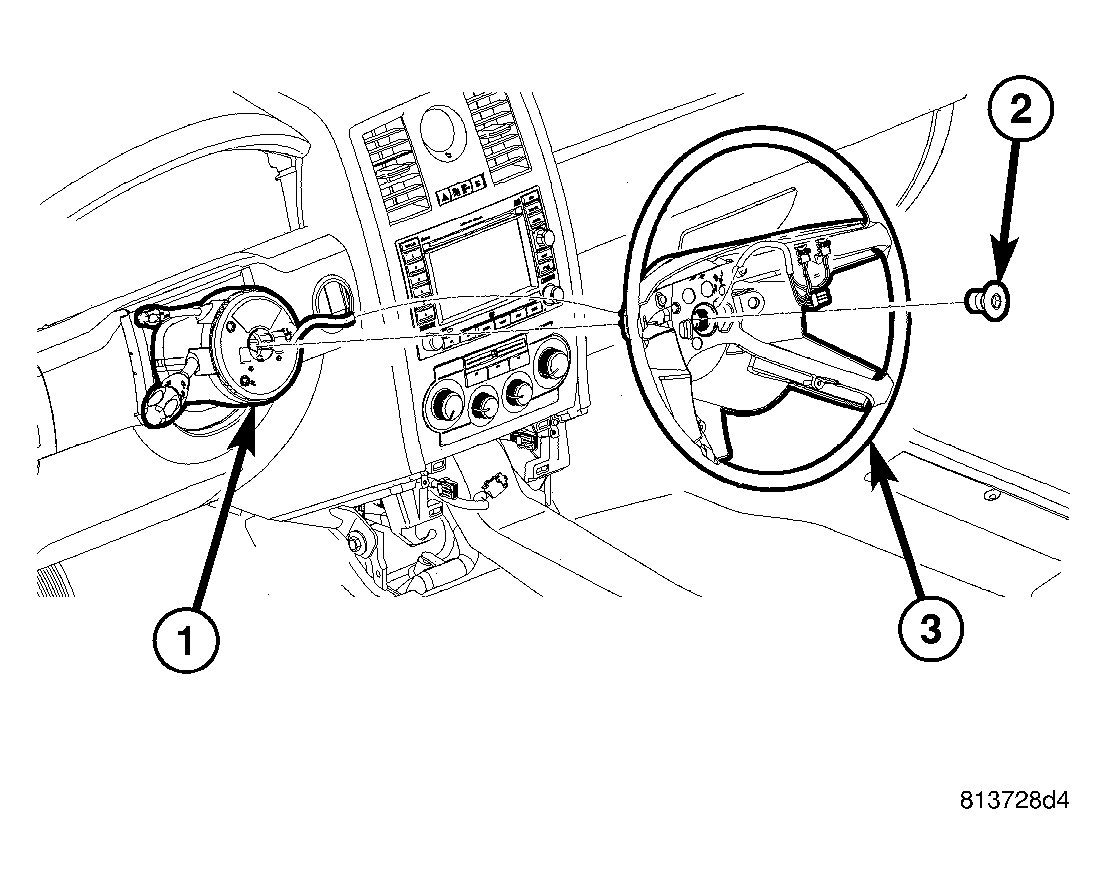

Fig 2: STEERING WHEEL
Courtesy of DAIMLERCHRYSLER CORP.
Remove the steering wheel Allen bolt (2) then remove the steering wheel (3).

Fig 3: CLOCKSPRING SCREWS
Courtesy of DAIMLERCHRYSLER CORP.
Remove the clock spring screws (1), (Refer to RESTRAINTS - SERVICE INFORMATION ).

Fig 4: STEERING ANGLE SENSOR SCREW
Courtesy of DAIMLERCHRYSLER CORP.
Remove the steering angle sensor (3) screws.

Fig 5: STEERING ANGLE SENSOR
Courtesy of DAIMLERCHRYSLER CORP.
Remove the steering angle sensor (1) from the column (2).
