Section 110 (Cruise Control Systems): Servo: Removal

WARNING: This page is about a different car, the 2003 Dodge Grand Caravan, 2003 Dodge Caravan, 2003 Chrysler Voyager, and 2003 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

Release hood latch and open hood.
Disconnect the negative battery cable.
Disconnect the throttle and speed control cable ends from throttle body (Fig 1).

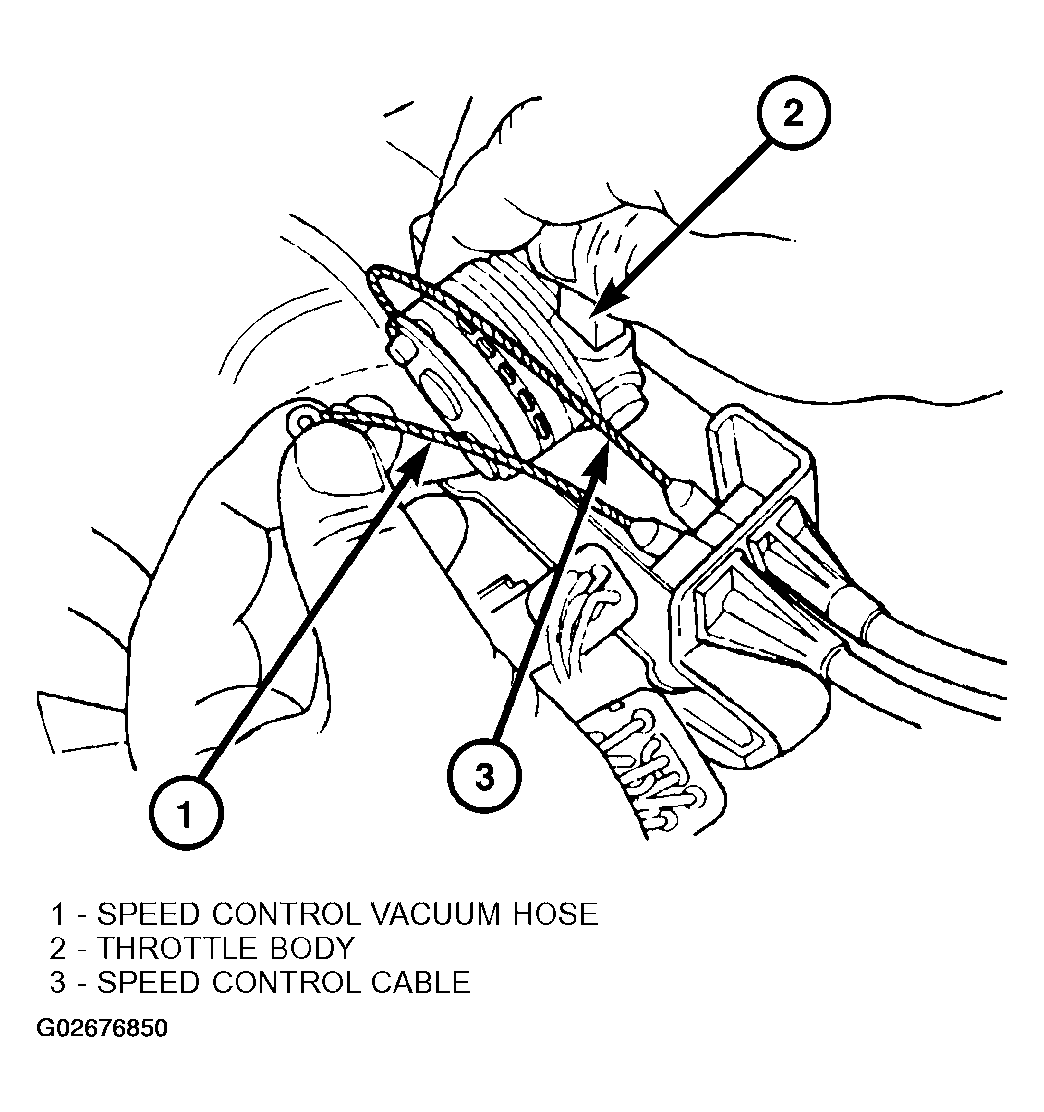

Fig 1: Removing Speed Control Cable End
Courtesy of DAIMLERCHRYSLER CORP.
Depress lock tabs holding speed control and throttle cable casing to cable mount bracket.
Disconnect vacuum line from speed control servo that leads to the battery tray/vacuum reservoir.
Remove battery tray/vacuum reservoir, refer to the BATTERY for more information (Fig 2).

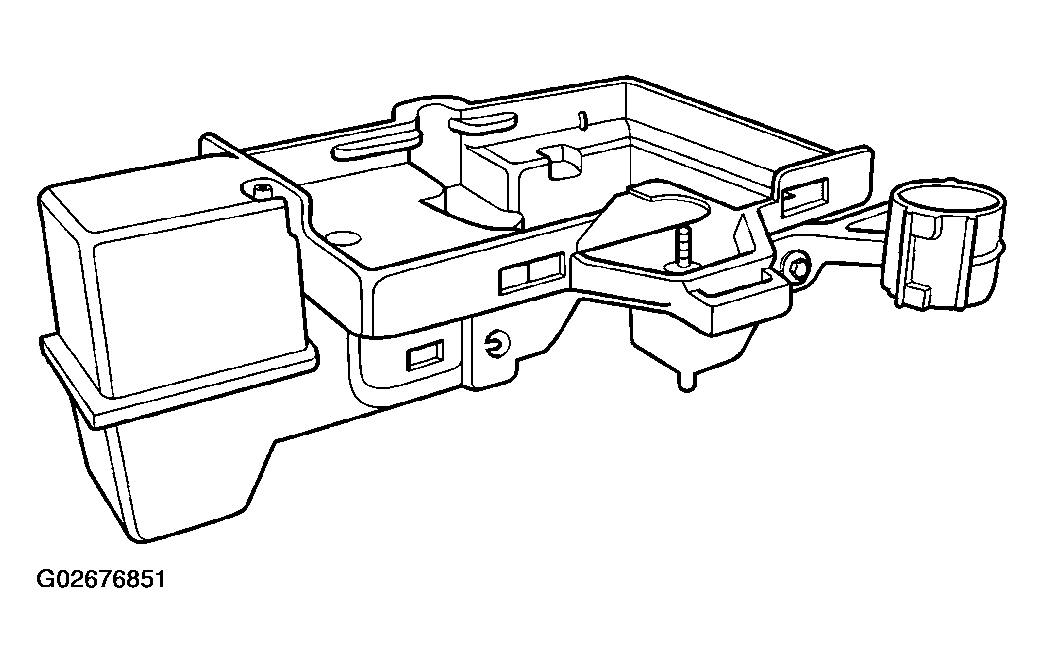

Fig 2: Identifying Battery Tray/Vacuum Reservoir
Courtesy of DAIMLERCHRYSLER CORP.
Remove speed control servo and bracket (Fig 3).

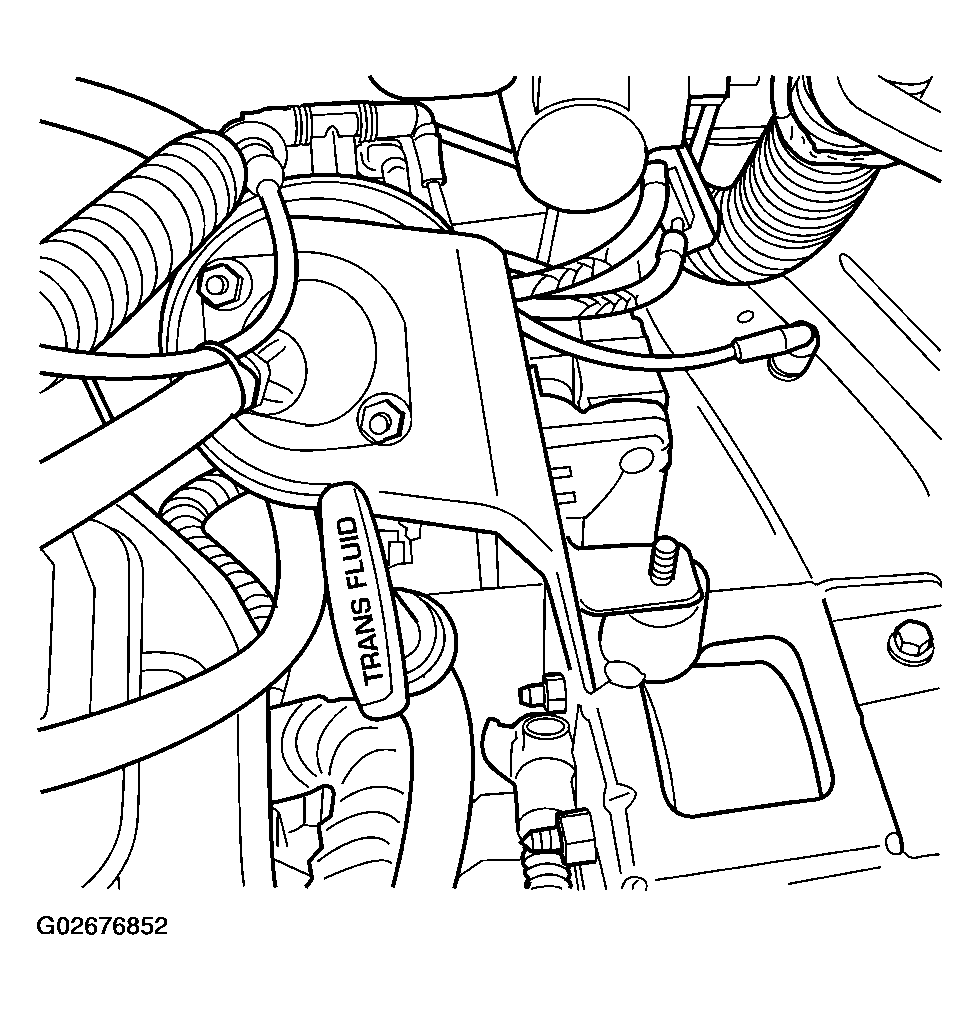

Fig 3: Removing Speed Control Servo
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect wire connector from speed control servo.
Remove speed control servo.
