Washer Fluid Level Switch: Installation
WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Install a new rubber grommet seal into the washer fluid level switch mounting hole in the washer reservoir. Always use a new rubber grommet seal on the reservoir.
- Insert the float of the washer fluid level switch through the rubber grommet seal and into the washer reservoir. The connector receptacle of the washer fluid level switch should be pointed upward.
- Using hand pressure, press firmly and evenly on the washer fluid level switch mounting flange until the barbed nipple is fully seated in the rubber grommet seal in the washer reservoir mounting hole.

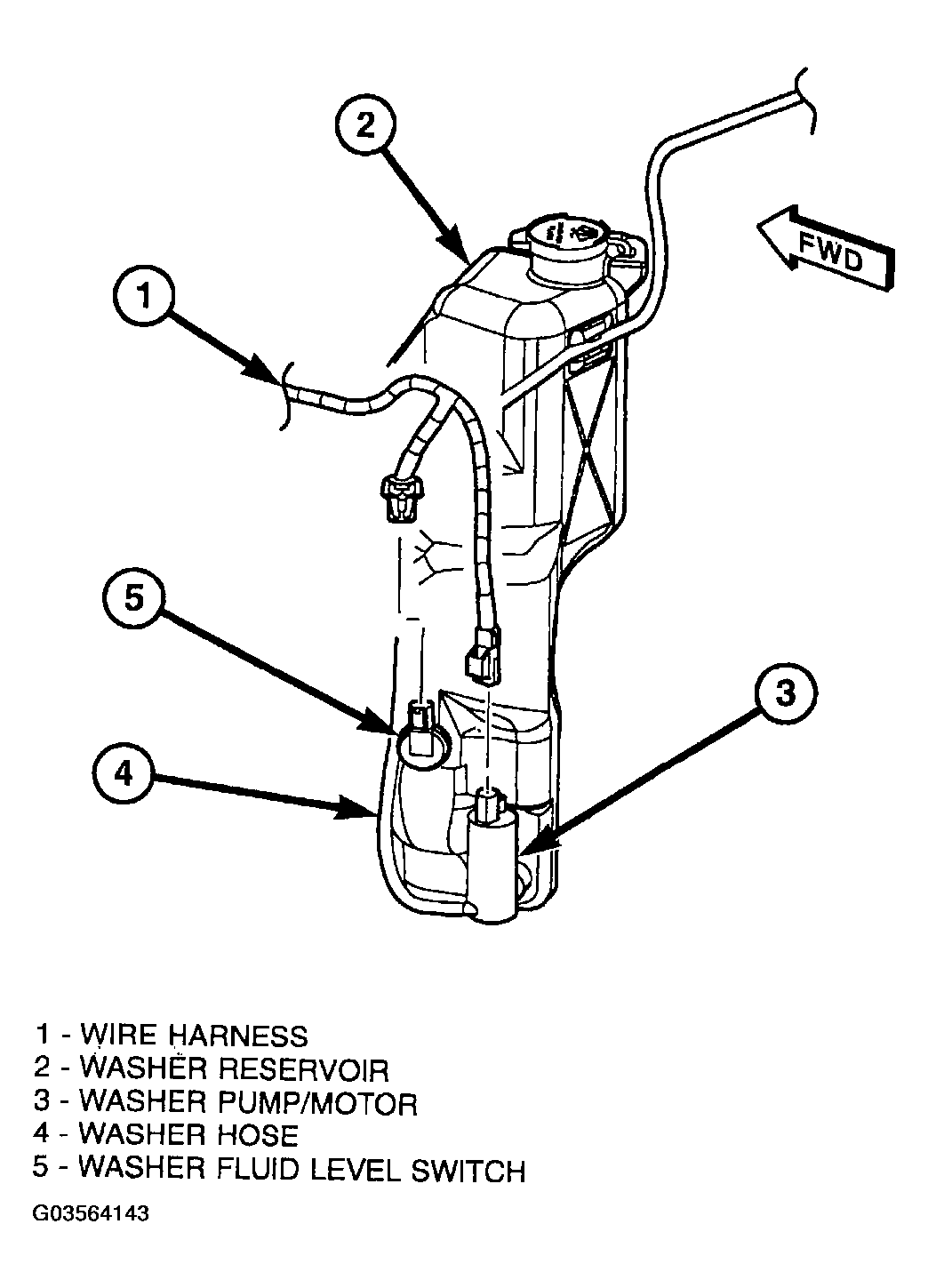

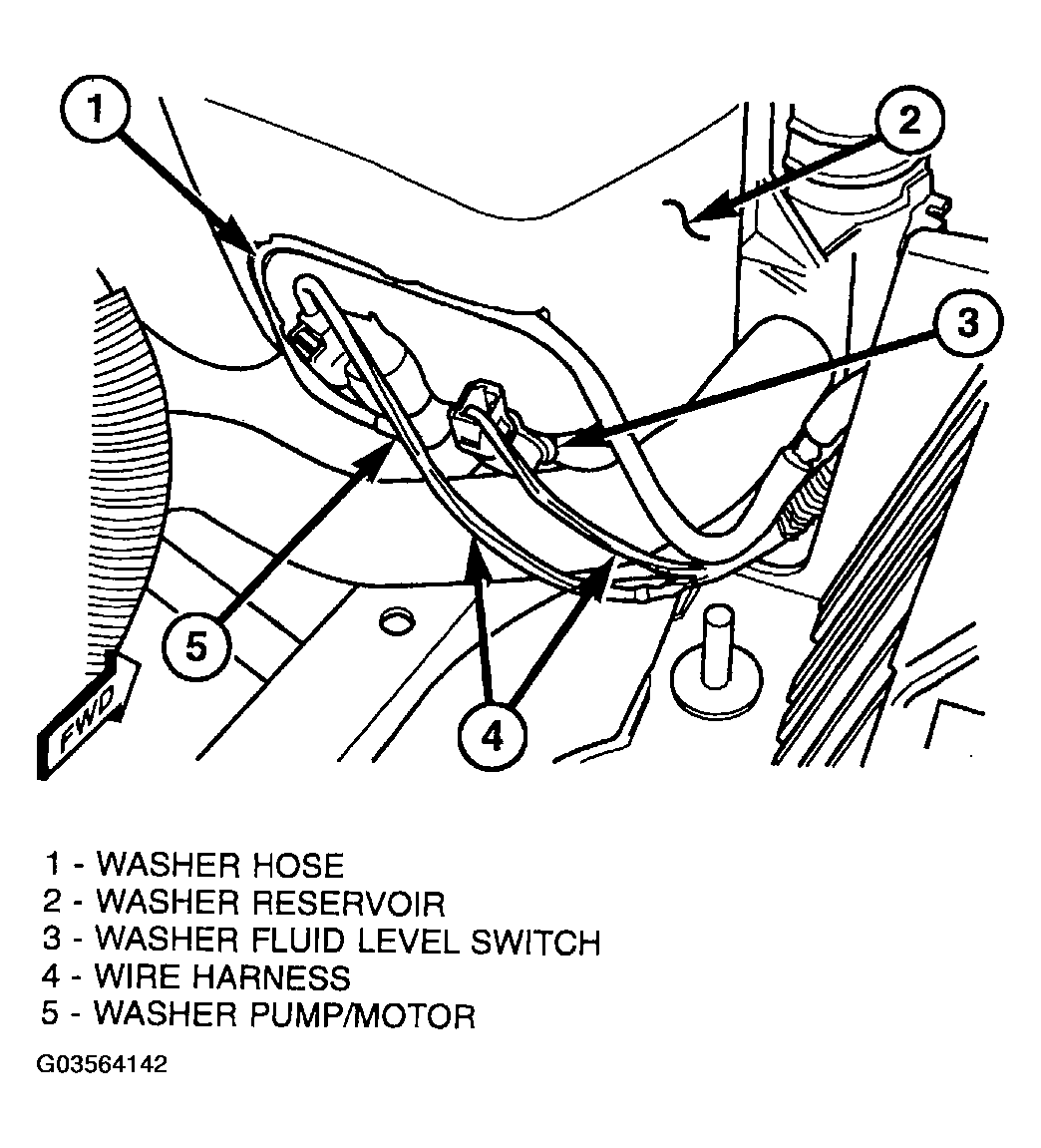

- Reconnect the right (except diesel engine) or left (diesel engine only) headlamp and dash wire harness connector for the washer fluid level switch to the switch connector receptacle (Figure ) or (Figure ).
- Reconnect the removed washer hose to the barbed outlet nipple of the washer pump/motor unit.
- Refill the washer reservoir with the washer fluid drained from the reservoir during the removal procedure.
- Reconnect the battery negative cable.
- Close and latch the hood.
