Wiper Module: Installation
WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

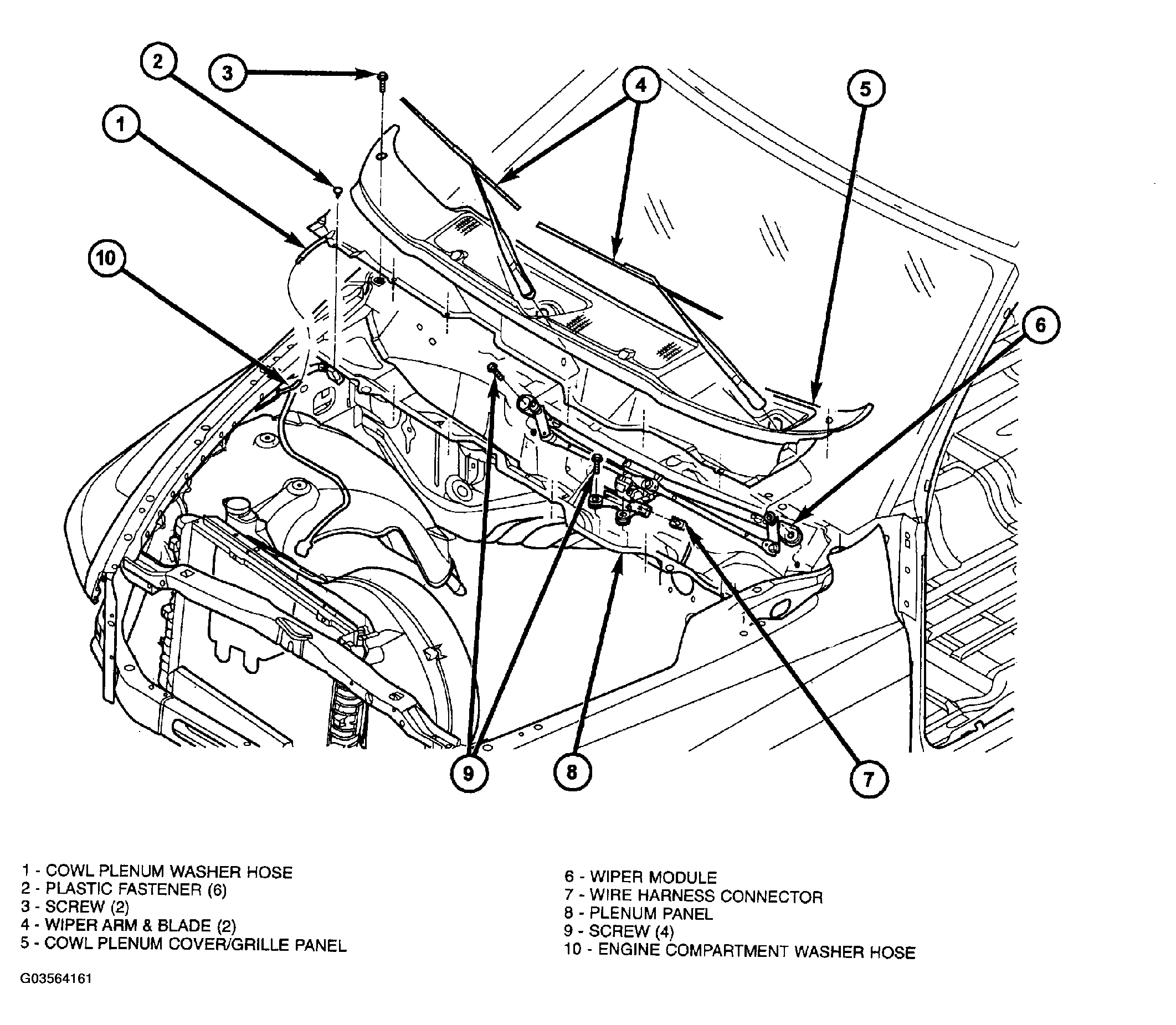

- Position the wiper module into the cowl plenum as a unit (Fig 1 ).
- Install the two screws that secure the wiper module to the top of the cowl plenum panel at the pivot brackets. Tighten the screw on the driver side, followed by the screw on the passenger side. Tighten the screws to 7 N.m (60 in. lbs.).
- Install and tighten the screws that secure the wiper module to the bottom of the cowl plenum panel. Tighten the screw on the passenger side, followed by the screw on the driver side. Tighten the screws to 7 N.m (60 in. lbs.)
- Reconnect the left headlamp and dash wire harness connector for the wiper motor to the motor pigtail wire connector.
- Reinstall the cowl plenum cover/grille panel over the cowl plenum. (Refer to COWL GRILLE ).
- Reconnect the battery negative cable.
- Close and latch the hood.
- Reinstall both wiper arms onto the wiper pivots. (Refer to INSTALLATION ).
