Blower Motor Resistor Block: Installation

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the blower motor resistor block into the HVAC housing.
  2. Install the two screws that secure the resistor block to the HVAC housing. Tighten the screws to 2.2 N.m (20 in. lbs.).
  3. Connect the wire harness connector to the resistor block.

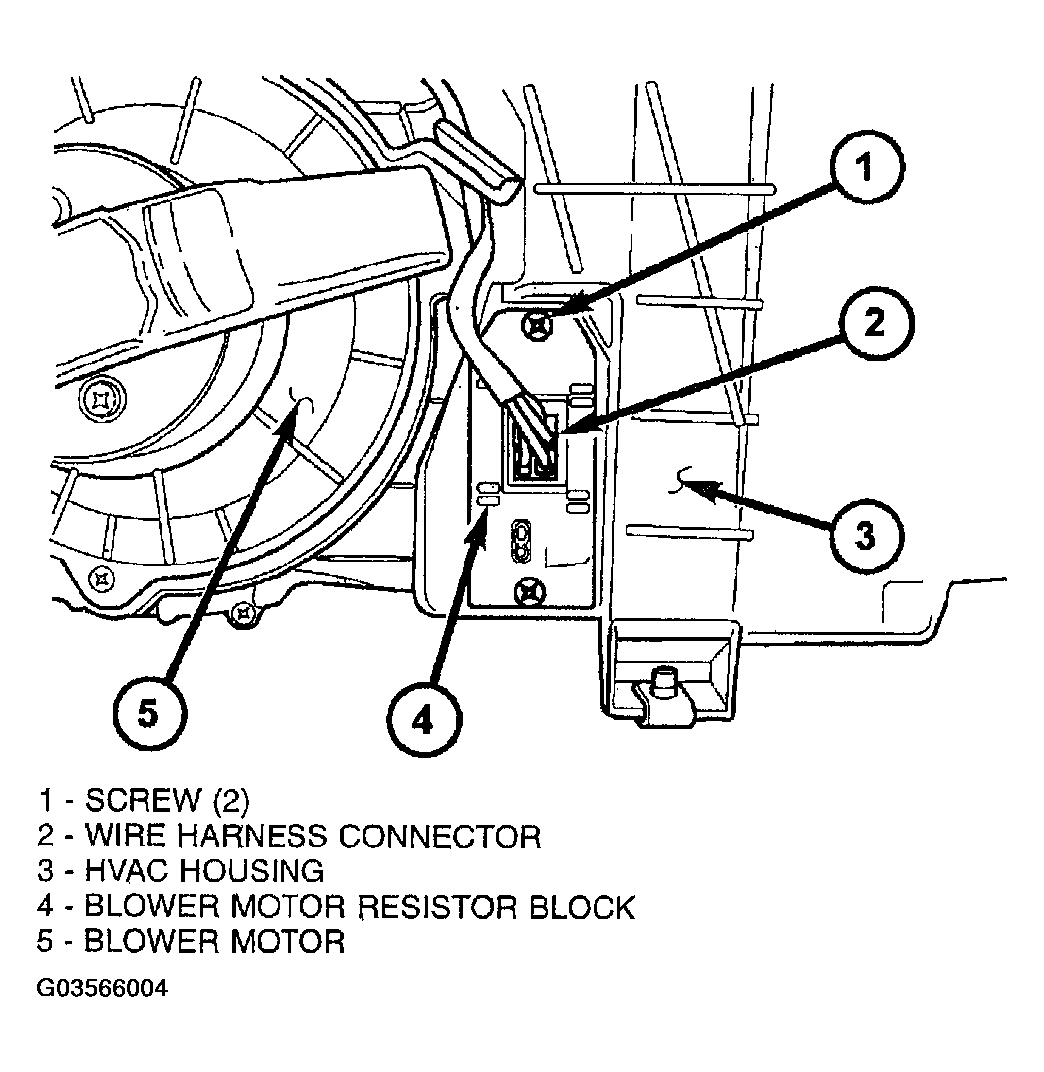

    Fig 1: Identifying Blower Motor Resistor Block
    G03566004Courtesy of DAIMLERCHRYSLER CORP.
  4. Reconnect the battery negative cable.
