A/C Heater Control: Installation

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the A/C-heater control onto the back of instrument panel center bezel.
  2. Install the six screws that secure the A/Cheater control to the back of the instrument panel center bezel. Tighten the screws to 2 N.m (17 in. lbs.).
  3. If the vehicle is equipped with the optional ATC system, reconnect the infrared sensor jumper harness connector to A/C-heater control.

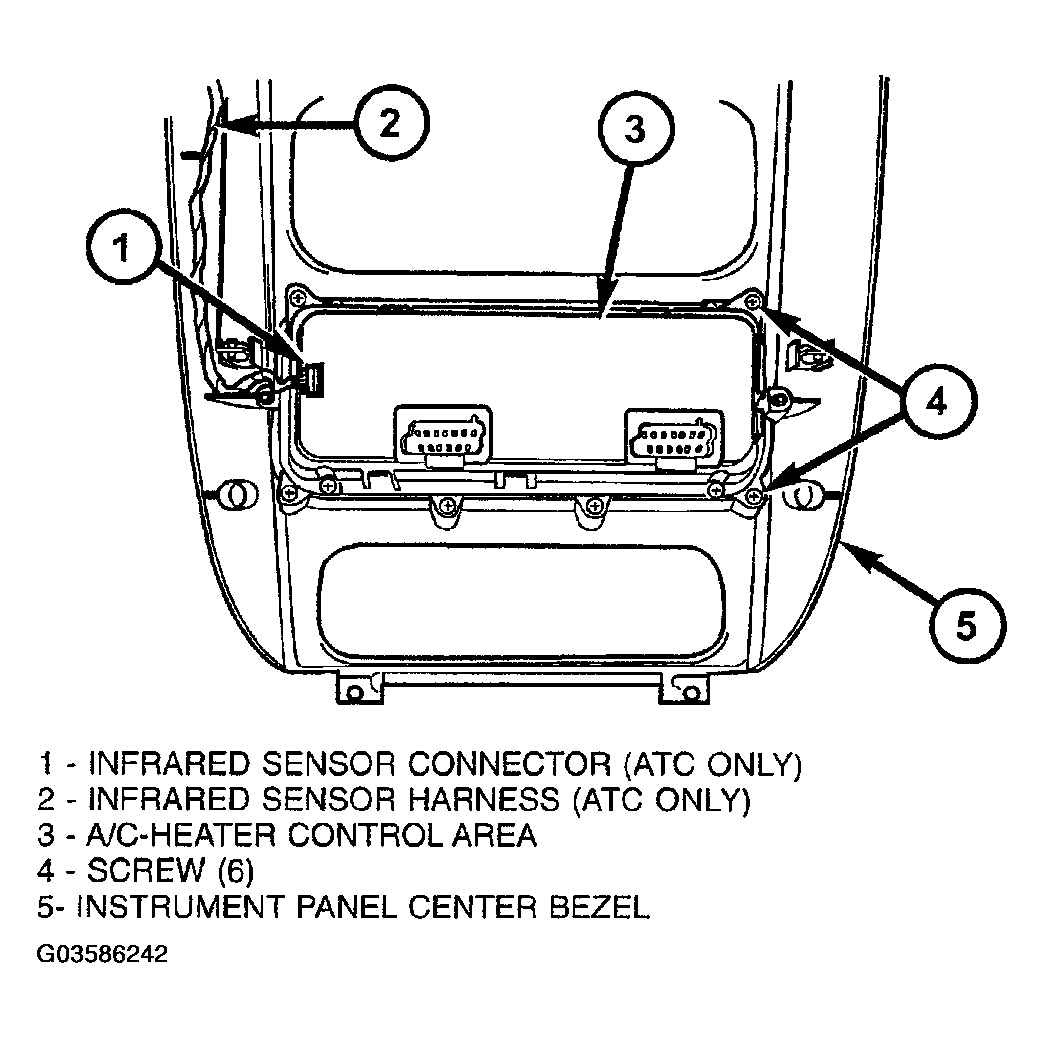

    Fig 1: Identifying A/C-Heater Control
    G03586242Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the center bezel onto the instrument panel (Refer to INSTRUMENT PANEL CENTER BEZEL ).
  5. Reconnect the battery negative cable.
