Relay-Auto Shut Down: Installation

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

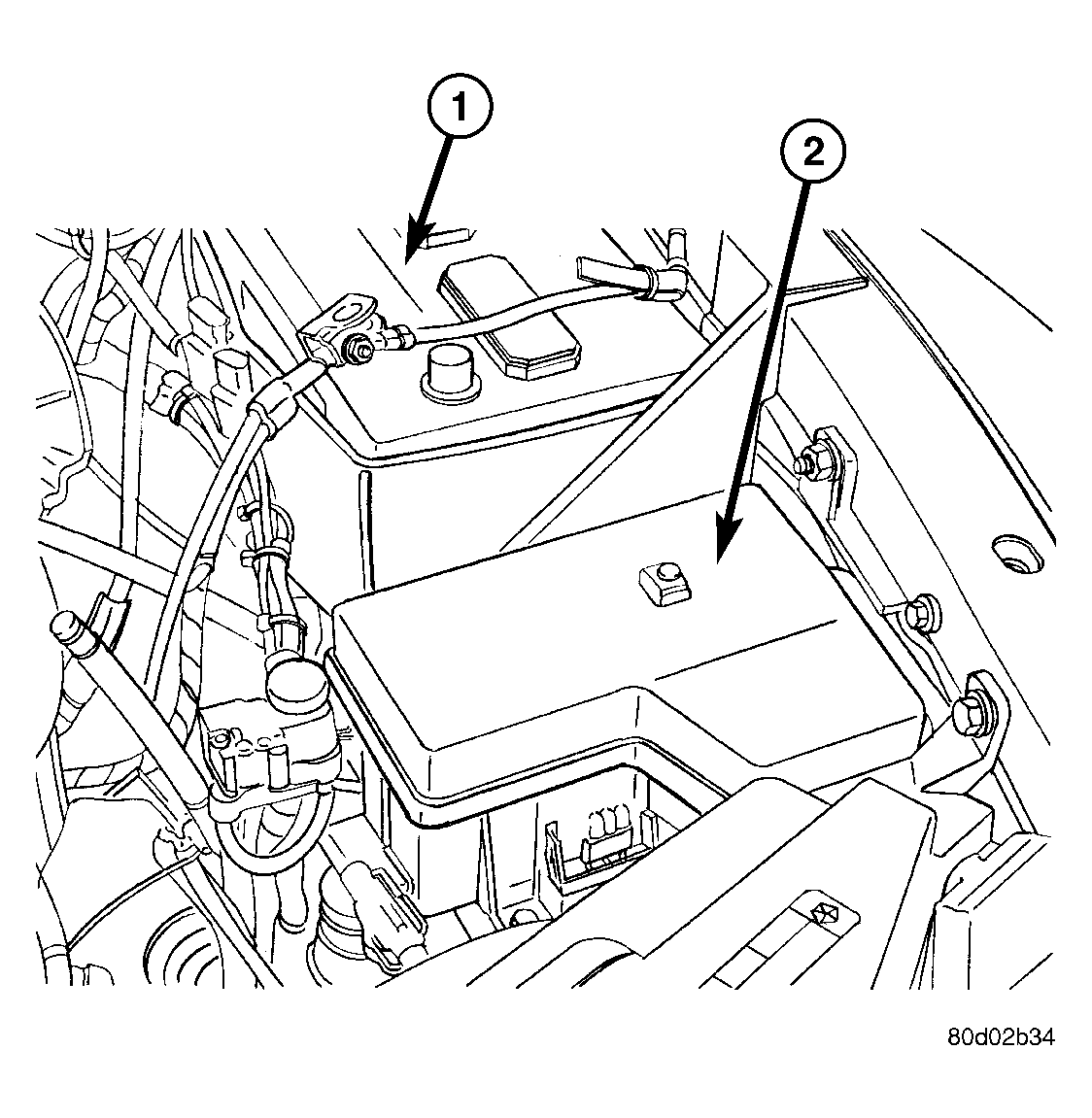

The ASD relay is located in the Power Distribution Center (PDC). See Figure. Refer to label on PDC cover for relay location.

  1. Install relay to PDC.
  2. Install cover to PDC.
