Module-Compass Temperature: Installation

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If a new Electronic overhead Module (EOM) has been installed, the compass will have to be calibrated and the variance set. COMPASS CALIBRATION and COMPASS VARIATION ADJUSTMENT for the appropriate procedures.

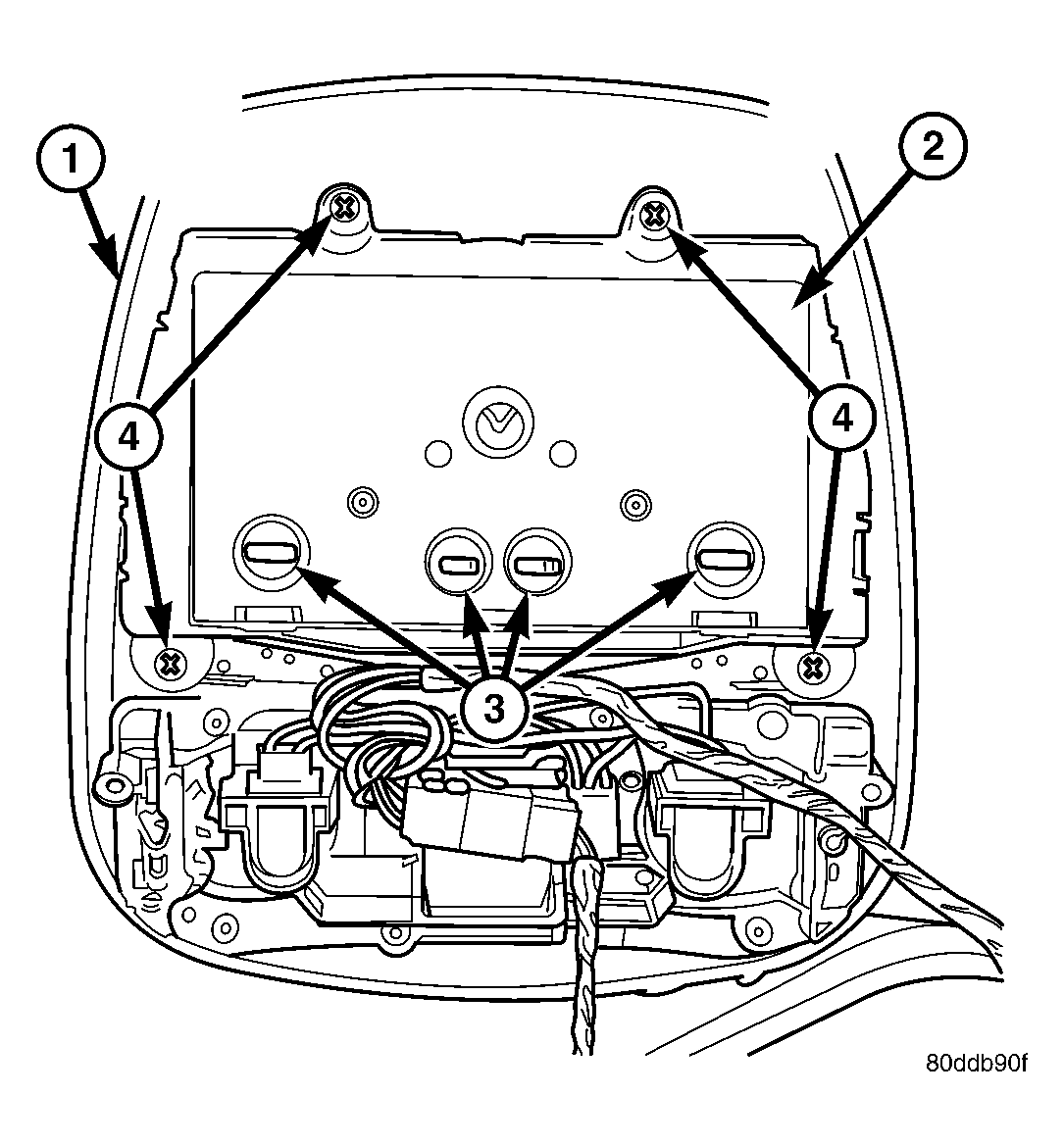

Fig 1: Removing/Installing Electronic Overhead Module

Courtesy of DAIMLERCHRYSLER CORP.

Position the Electronic overhead Module (EOM) (2) onto the overhead console housing (1).
Reconnect the overhead console wire harness connector to the EOM connector receptacle.
Install the screws (4) that secure the EOM (2) to the overhead console housing (1). Tighten the screws to 2.2 N.m (20 in. lbs.).
Install the overhead console (1) onto the headliner (Refer to ELECTRICAL/OVERHEAD CONSOLE - INSTALLATION) .
Reconnect the battery negative cable.
