Junction Block: Installation
WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of DAIMLERCHRYSLER CORP.

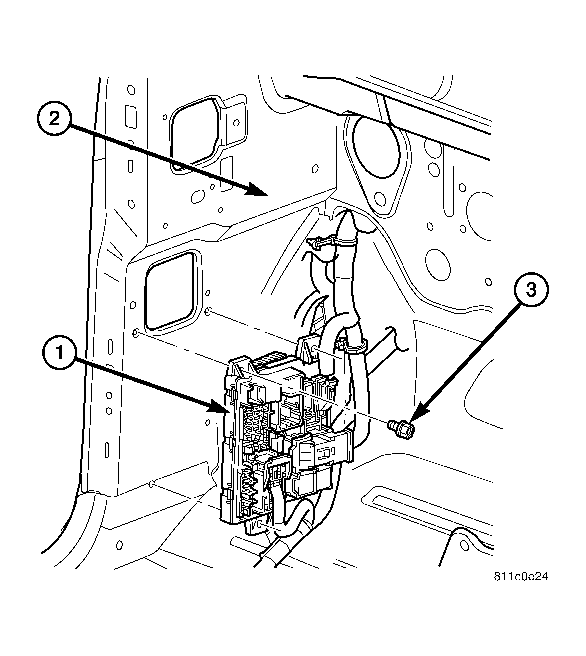

- Connect wire harness connectors to the Junction Block (JB) (1).
- Position JB and install mounting fasteners (3).
- Install cowl trim cover
(Refer to BODY/INTERIOR/COWL TRIM COVER - INSTALLATION).
- Connect the battery negative cable.
