Module-Integrated Power: Installation
WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

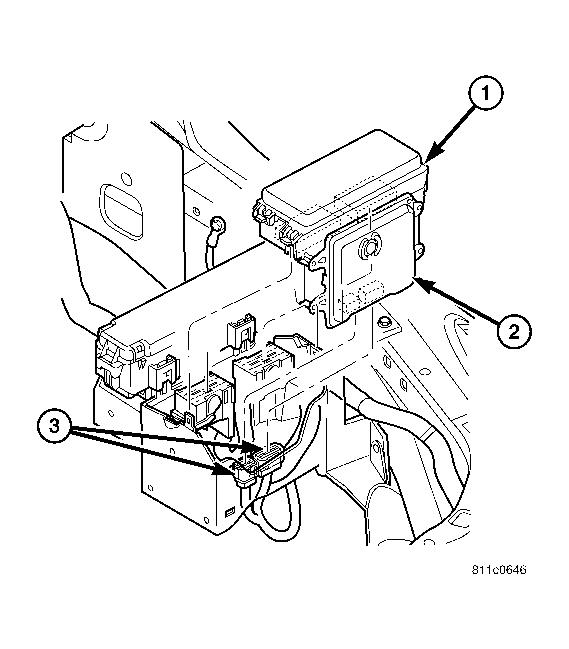

- Install the Front Control Module (FCM) (2) to the Integrated Power Module (IPM).
- Connect the electrical connectors to the IPM (1).
- Install the IPM to the retaining bracket.
- Install the B+ cable and nut on the IPM B+ terminal. Snap the cover in place.
- Connect the negative and positive battery cables.
