Module-Integrated Power: Removal

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

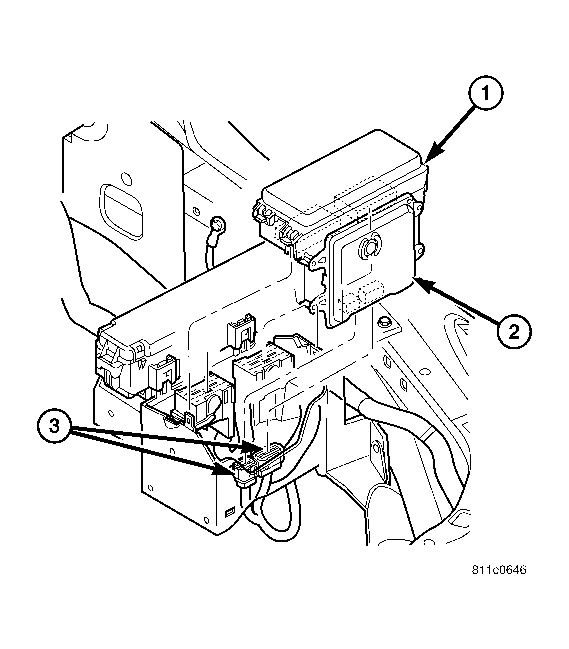

Fig 1: Removing IPM
GC0012507Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect the negative and positive battery cables.
  2. Unsnap cover and remove the B+ terminal nut from the integrated power module (IPM). Remove the B+ cable.
  3. Remove the IPM from the retaining bracket (1).
  4. Disconnect the connectors from the (IPM).
  5. Remove the Front Control Module (FCM) (2) retaining screws.
  6. Disconnect the front control module by pulling it straight off the integrated power module.
