Installation - AWD

WARNING: This page is about a different variant/trim than selected.

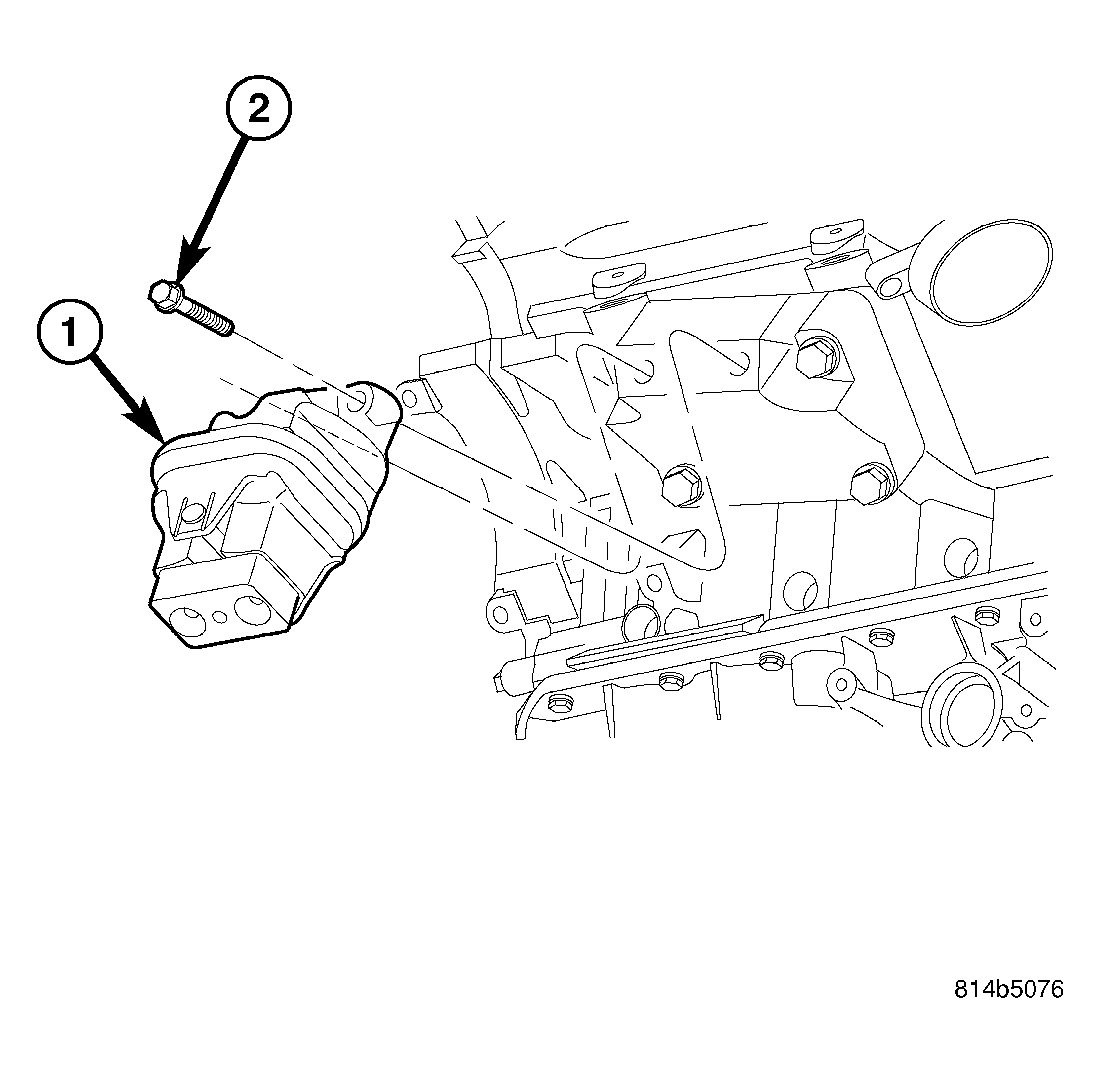

Fig 1: HYDROMOUNT 5.7L AWD LEFT
GC0015469Courtesy of DAIMLERCHRYSLER CORP.
1 - HYDROMOUNT
2 - BOLT

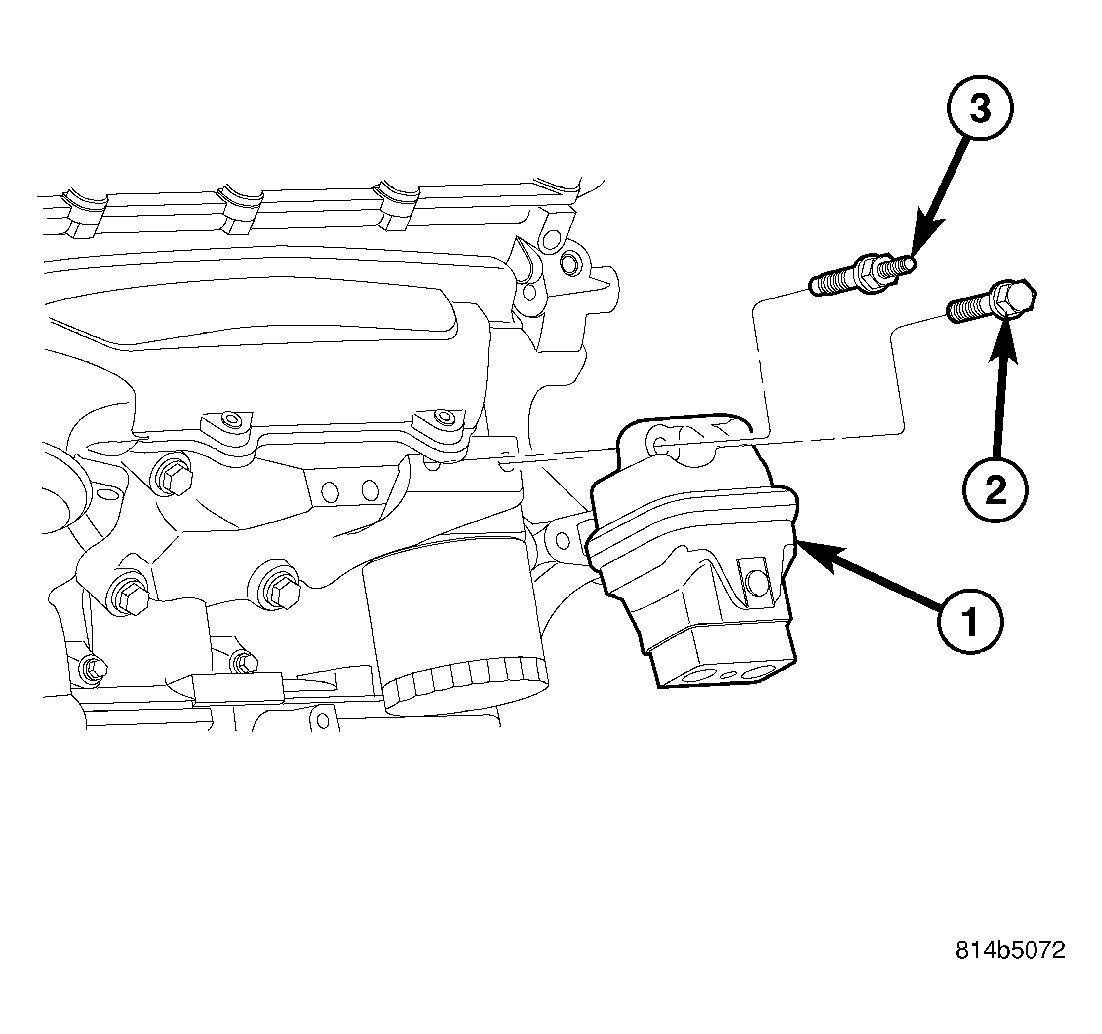

Fig 2: HYDROMOUNT 5.7L AWD RIGHT
GC0015468Courtesy of DAIMLERCHRYSLER CORP.
1 - HYDROMOUNT
2 - BOLT
3 - STUD
  1. Install the engine mount brackets, if removed.
  2. Install hydromount (1) on the engine. Tighten hydromount to bracket fasteners.
  3. Install the fasteners to the hydromount (2,3,).
  4. Install the generator support bracket.

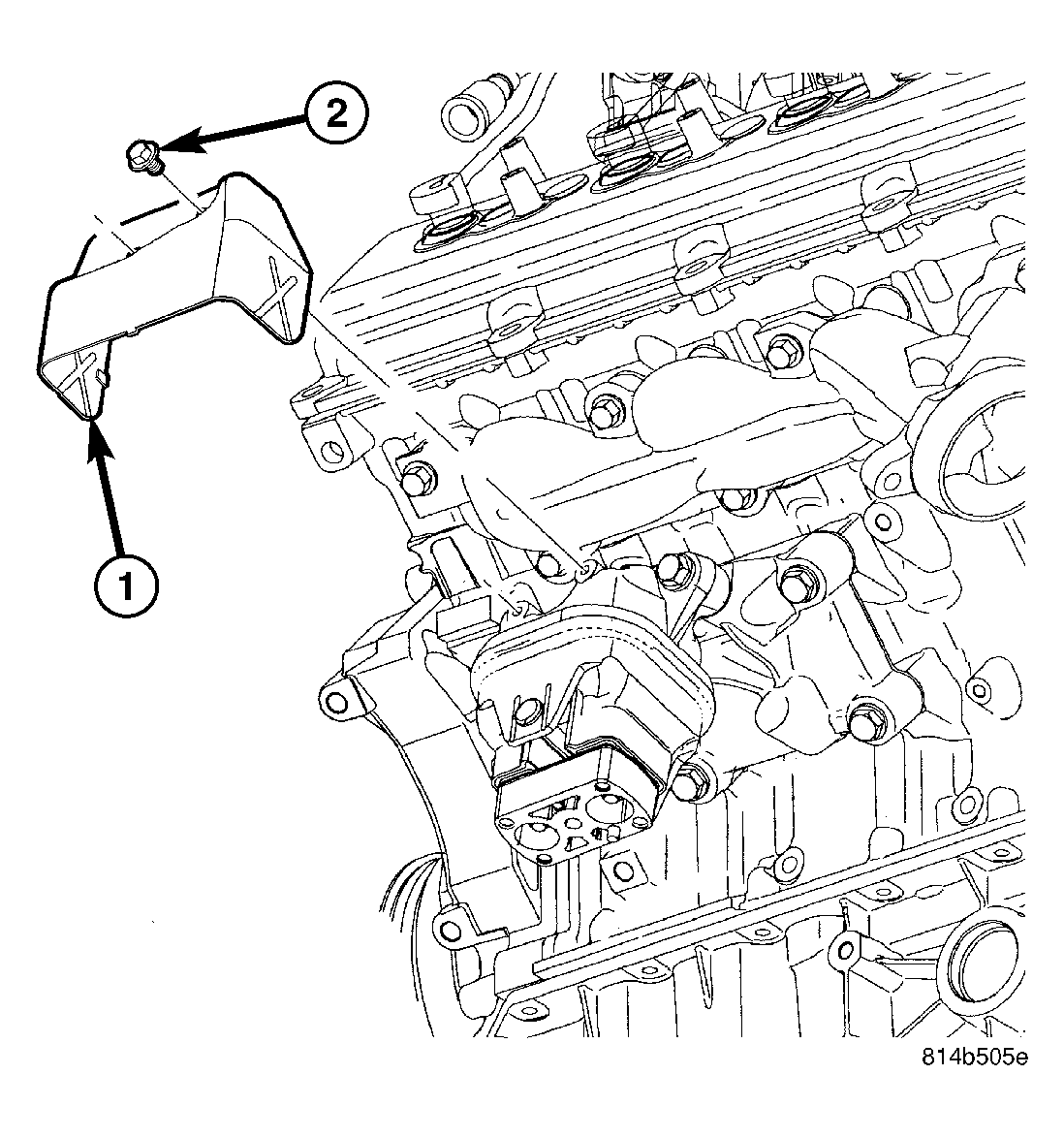

    Fig 3: HEAT SHIELD 5.7L AWD LEFT
    GC0015467Courtesy of DAIMLERCHRYSLER CORP.
    1 - HEAT SHIELD
    2 - BOLT

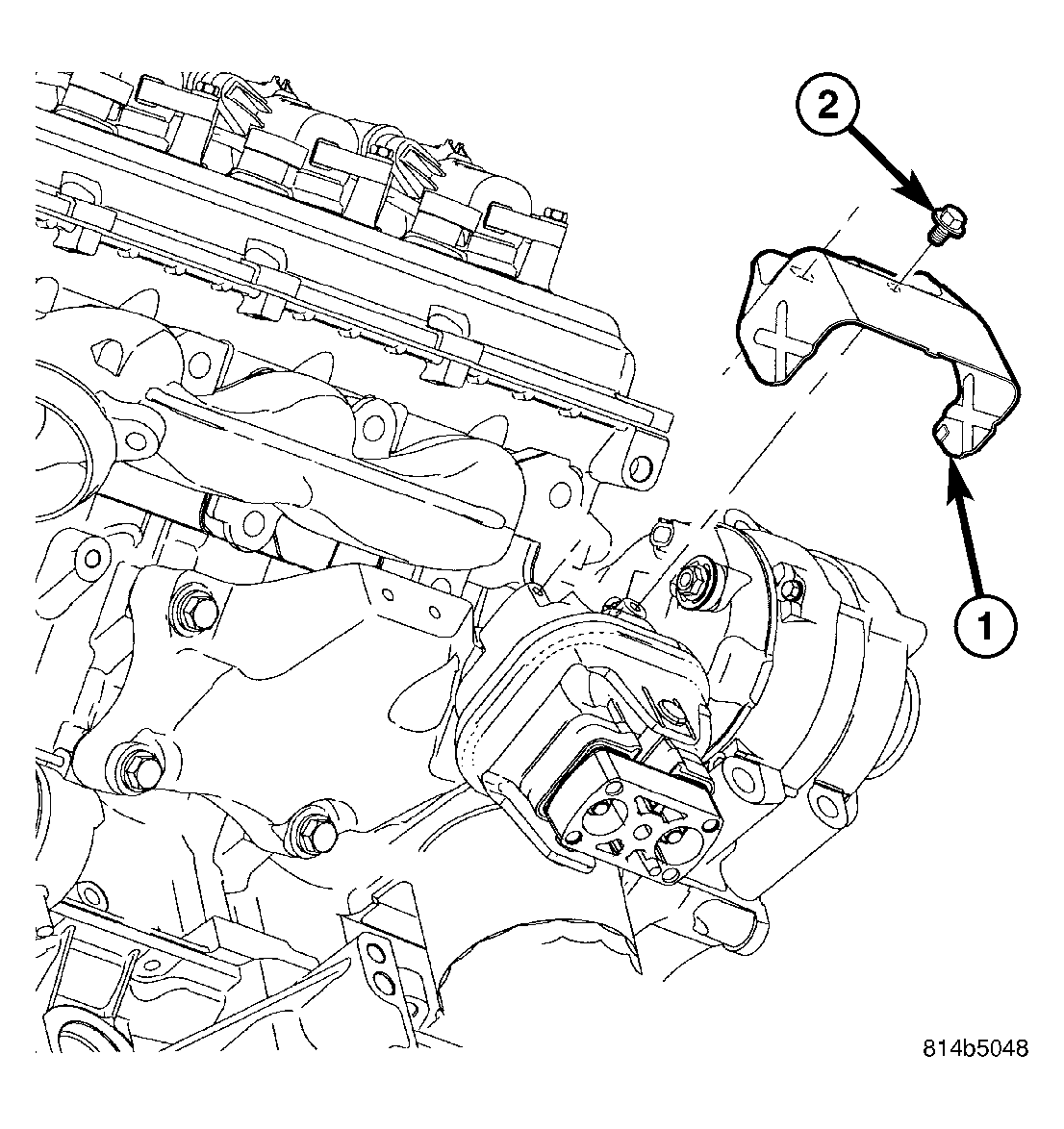

    Fig 4: HEAT SHIELD 5.7L AWD RIGHT
    GC0015466Courtesy of DAIMLERCHRYSLER CORP.
    1 - HEAT SHIELD
    2 - BOLT
  5. Install the heat shields (1).
  6. Lower the engine.
    Fig 5: HYDROMOUNT 5.7L AWD LEFT
    GC0015469Courtesy of DAIMLERCHRYSLER CORP.
    1 - HYDROMOUNT
    2 - BOLT
    Fig 6: HYDROMOUNT 5.7L AWD RIGHT
    GC0015468Courtesy of DAIMLERCHRYSLER CORP.
    1 - HYDROMOUNT
    2 - BOLT
    3 - STUD
  7. Install the hydromount (1) to frame nuts on the studs, and tighten.
  8. Lower vehicle.
  9. Connect negative battery cable.
