Sensor-Crankshaft Position: Installation: 2.7L

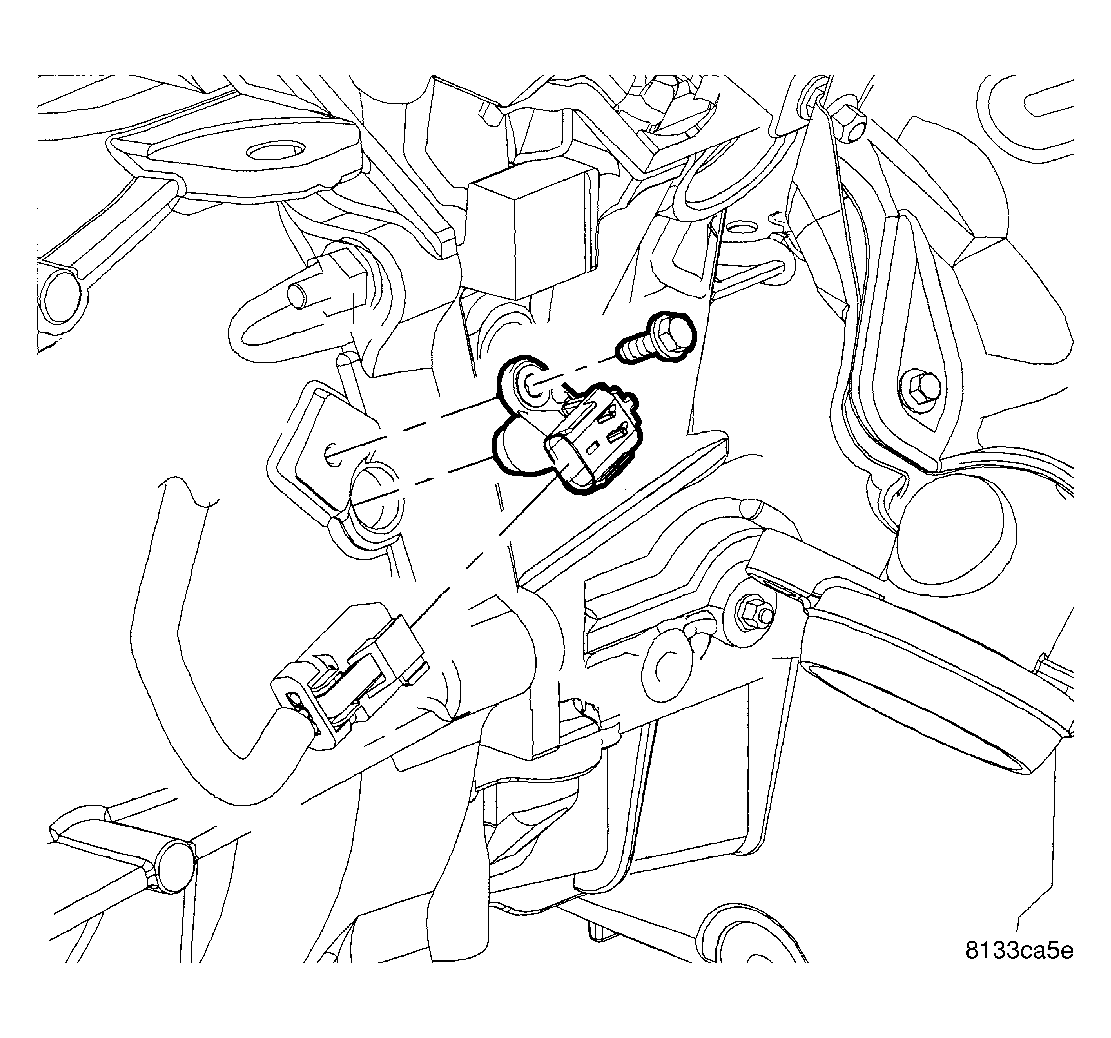

Fig 1: Crankshaft Position Sensor
GC0012853Courtesy of DAIMLERCHRYSLER CORP.
  1. Install sensor.
  2. Install mounting bolt and tighten to 12 N.m (105 in. lbs.).
  3. Connect the electrical connector and lock.
  4. Lower vehicle.
  5. Connect negative battery cable.
