Rear Wheel Speed Sensor: Installation

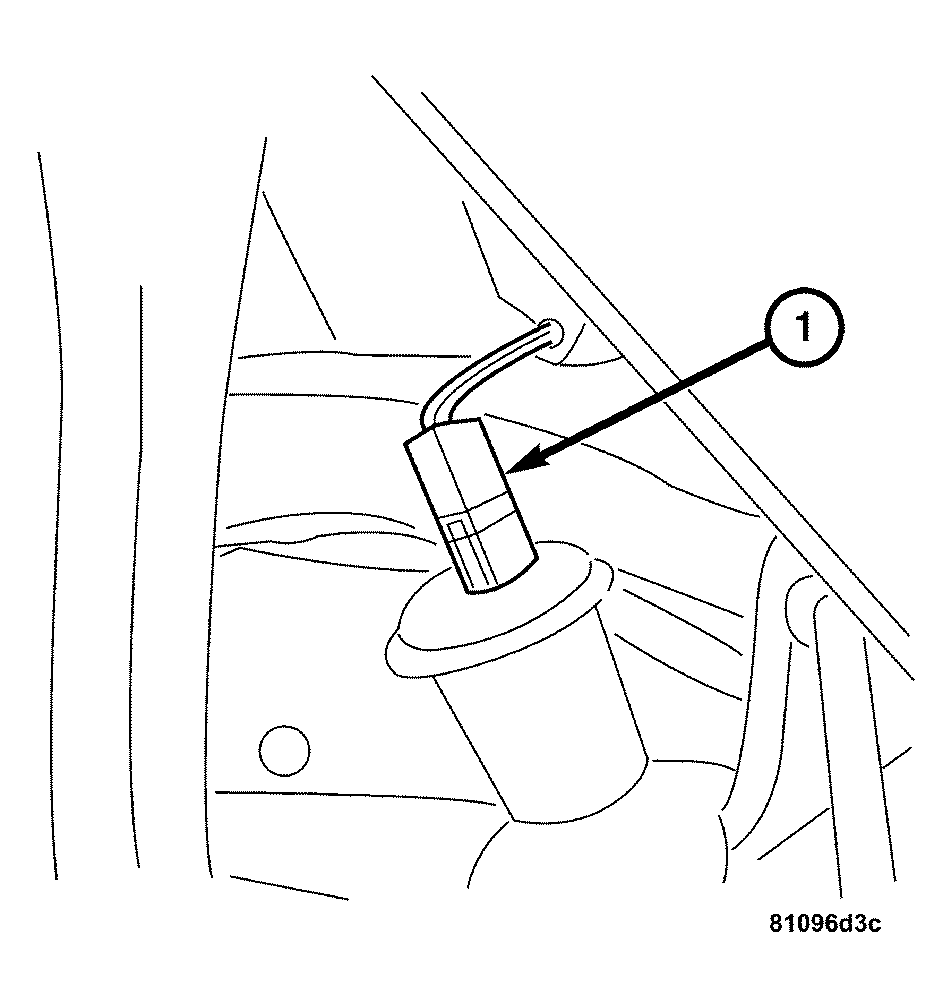

Fig 1: Disconnecting/Connecting Wheel Speed Sensor Harness Connector
GC0033912Courtesy of DAIMLERCHRYSLER CORP.
  1. Connect the wheel speed sensor wire harness connector (1).

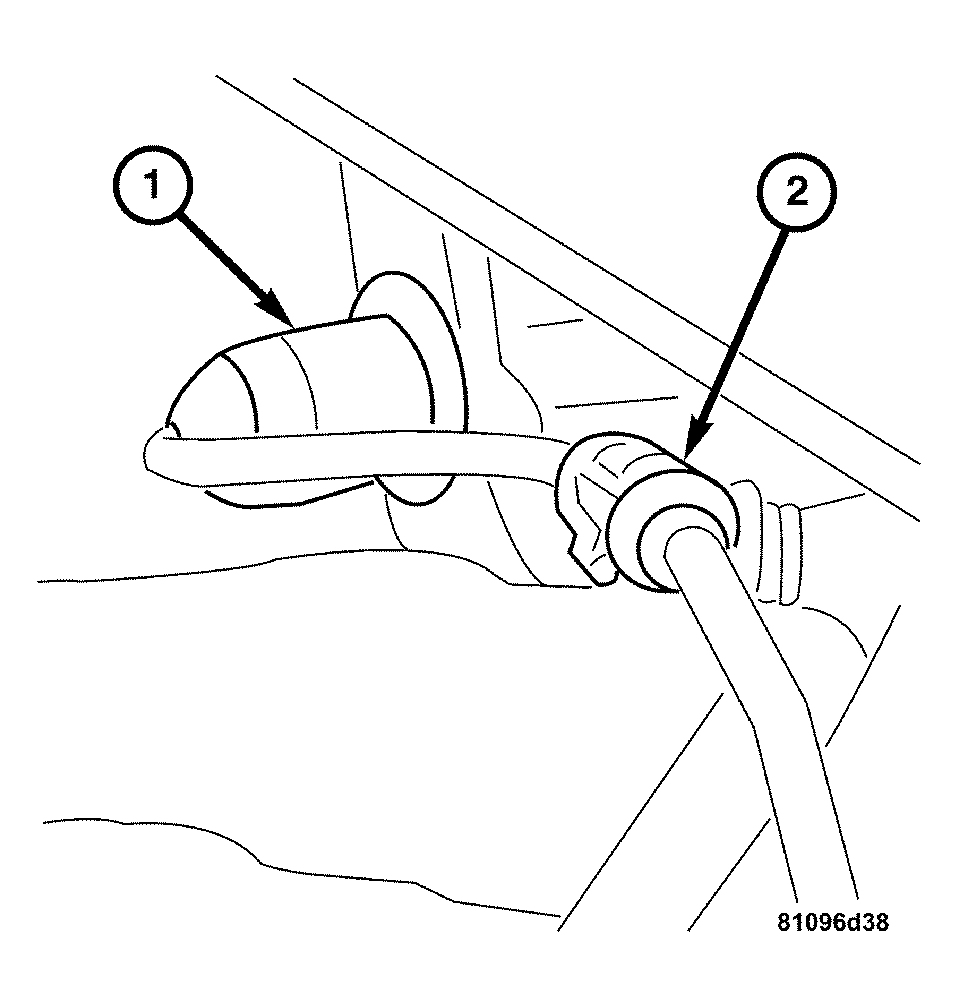

    Fig 2: Identifying Rubber Grommet & Wheel Speed Sensor Mount
    GC0033911Courtesy of DAIMLERCHRYSLER CORP.
  2. Install the rubber grommet (1) to the body and then hook the wheel speed sensor wire harness to the mount (2).

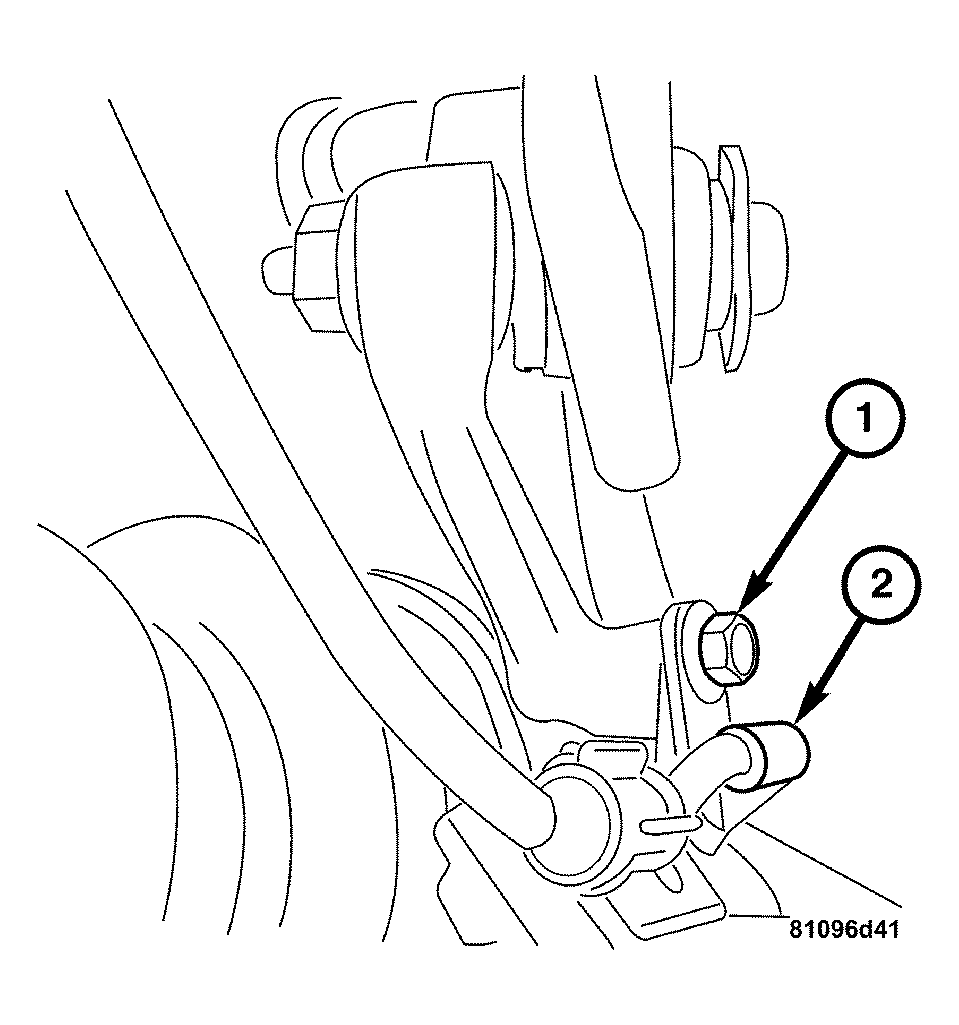

    Fig 3: Removing/Installing Rear Wheel Speed Sensor
    GC0033673Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the wheel speed sensor (2) to the knuckle.
  4. Install the bolt (1) attaching the wheel speed sensor to the knuckle. Tighten to 12 N.m (106 in. lbs.).
