Yaw Rate/Lateral Acceleration Sensor: Installation

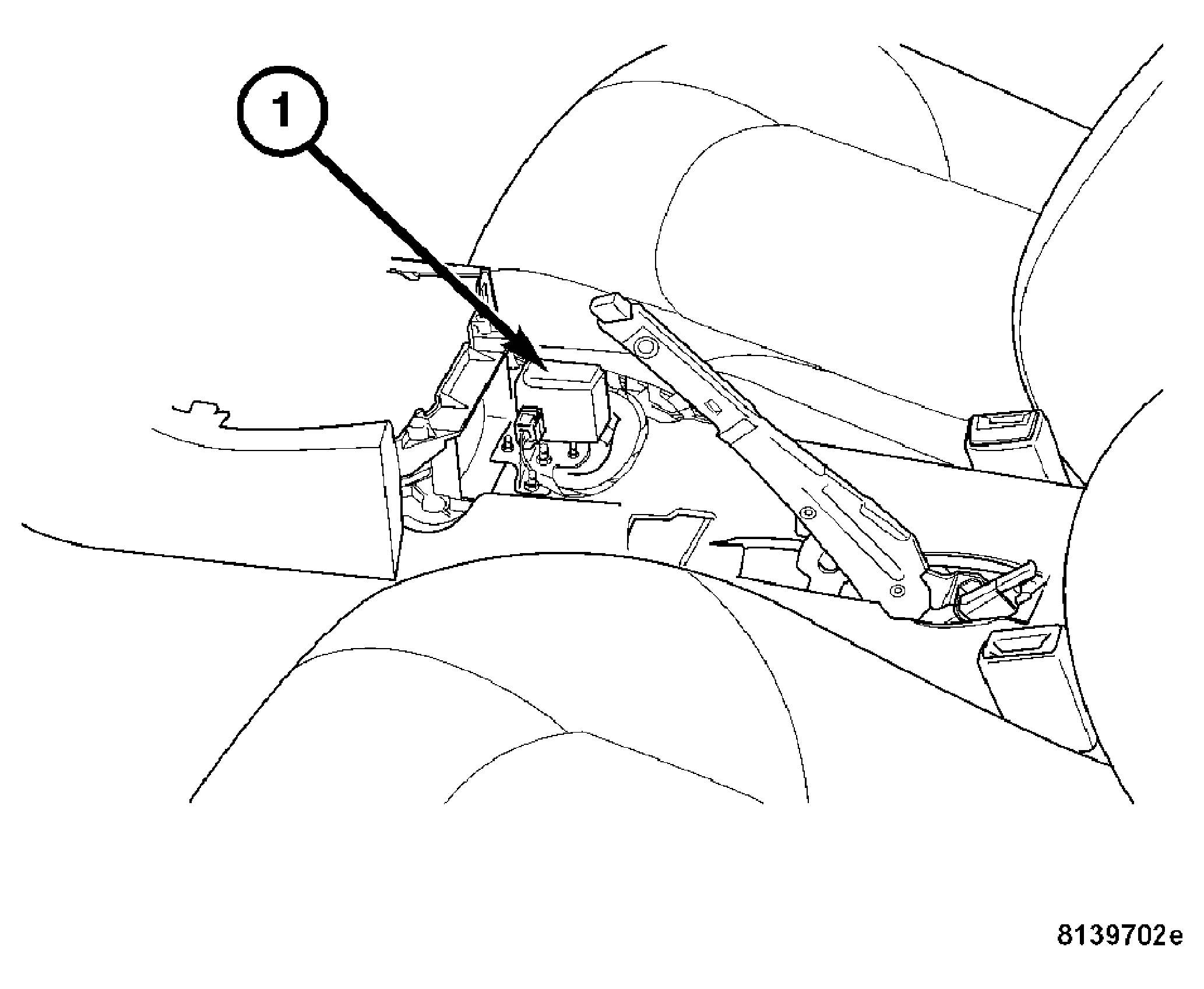

Fig 1: Removing/Installing Yaw Rate/Lateral Acceleration Sensor

Courtesy of DAIMLERCHRYSLER CORP.

1. Install the yaw rate/lateral acceleration sensor (1). Tighten the nuts to 10 N.m (89 in. lbs.).
2. Connect the yaw rate/lateral acceleration harness connector.
3. Install the rear center console. (Refer to BODY/INTERIOR/CENTER CONSOLE - INSTALLATION) .
