Installation - RHD

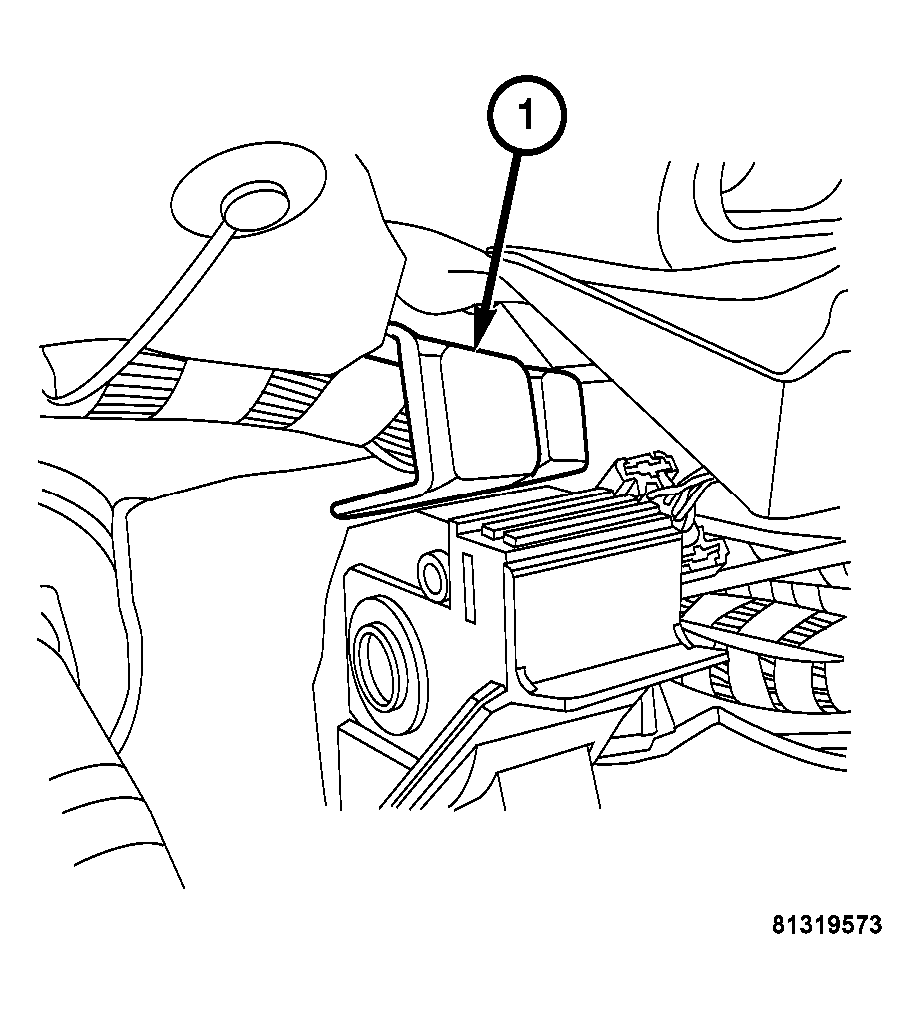

Fig 1: Identifying Accelerator Pedal Bracket
GC0032335Courtesy of DAIMLERCHRYSLER CORP.
  1. Connect the accelerator pedal harness connector.
  2. Slide the accelerator pedal into the bracket (1) and onto the welded stud.

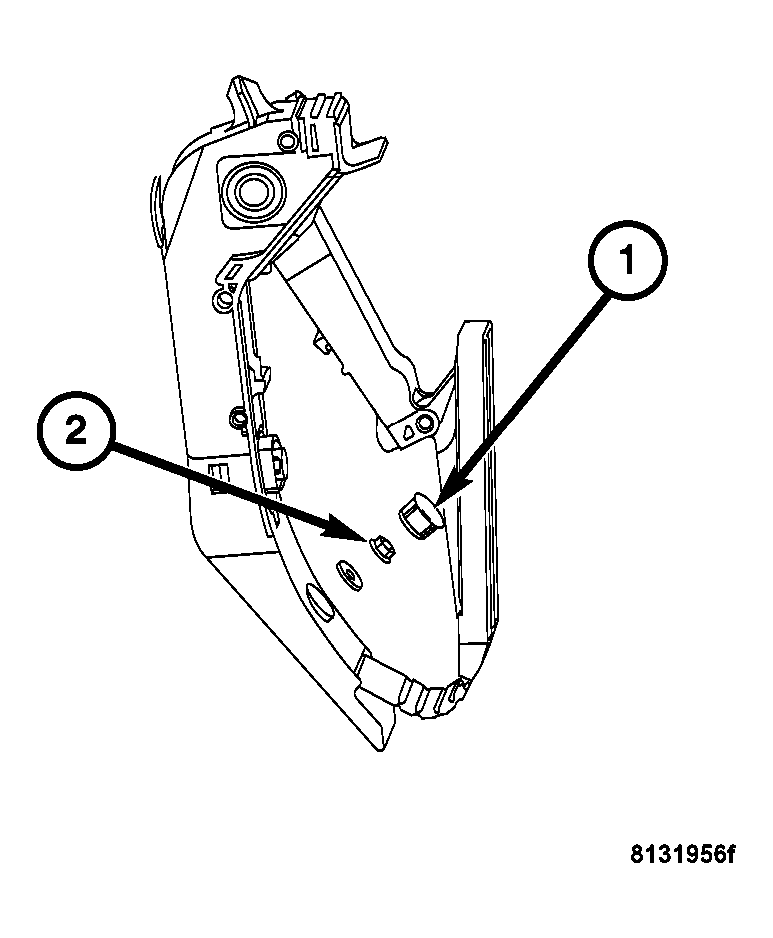

    Fig 2: Removing/Installing Lower Accelerator Nut Cover & Nut
    GC0032334Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the accelerator pedal lower nut (2). Tighten to 15 N.m (11 ft. lbs.).
  4. Install the plastic nut cover (1).
  5. Connect the negative battery cable.
