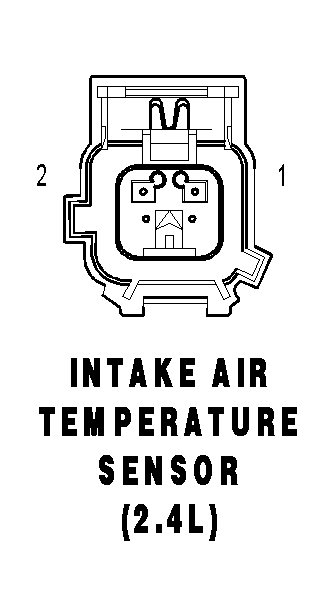

INTAKE AIR TEMPERATURE SENSOR (2.4L) - 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K900 20DB/DG |
SENSOR GROUND |
| 2 |
K21 20BR/WT |
IAT SIGNAL |
