Programming Does Not Correspond To The Vehicle Equipment: Notes

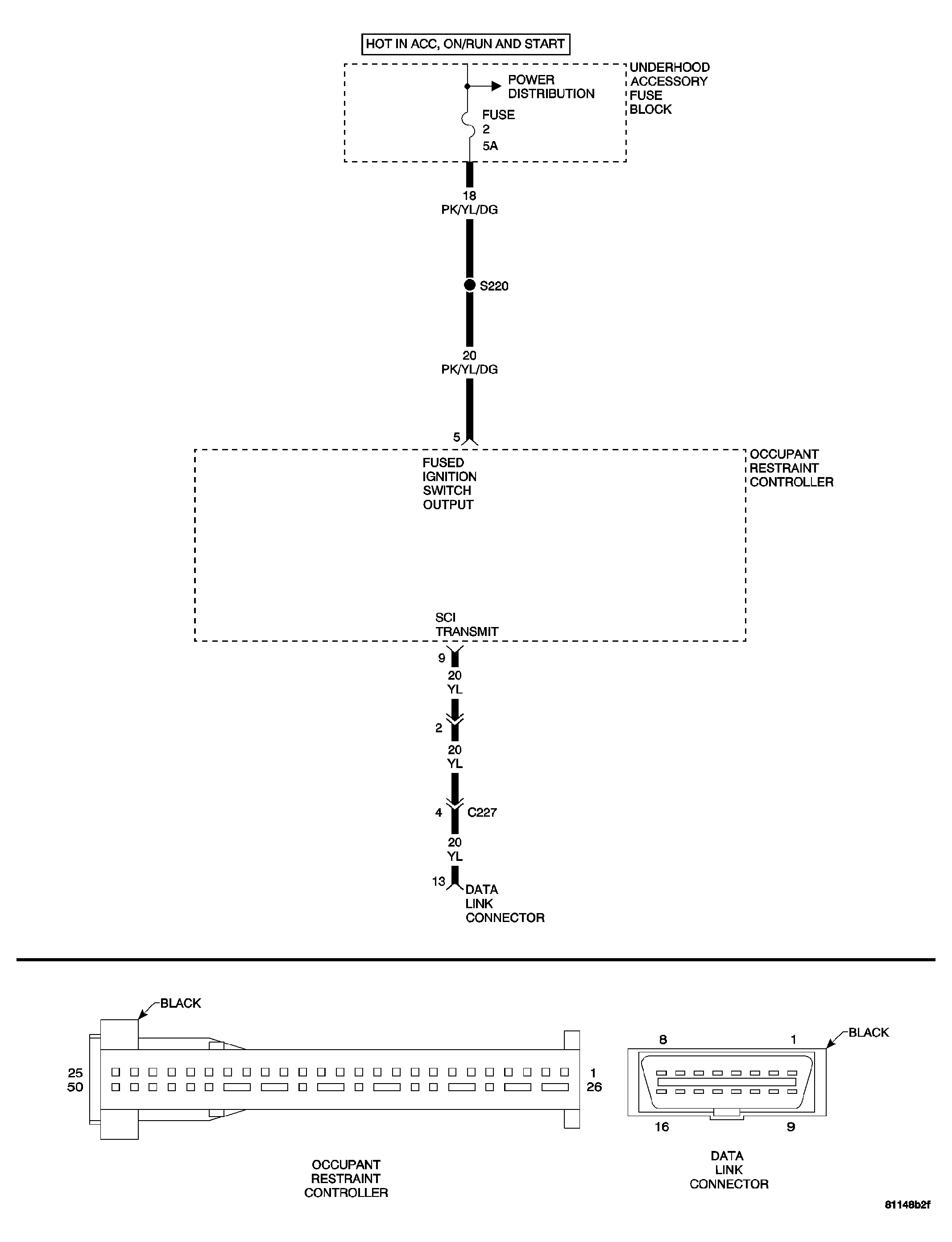

Fig 1: ORC Communication Circuit Diagram
GC0035624Courtesy of DAIMLERCHRYSLER CORP.
