Schematics And Diagrams

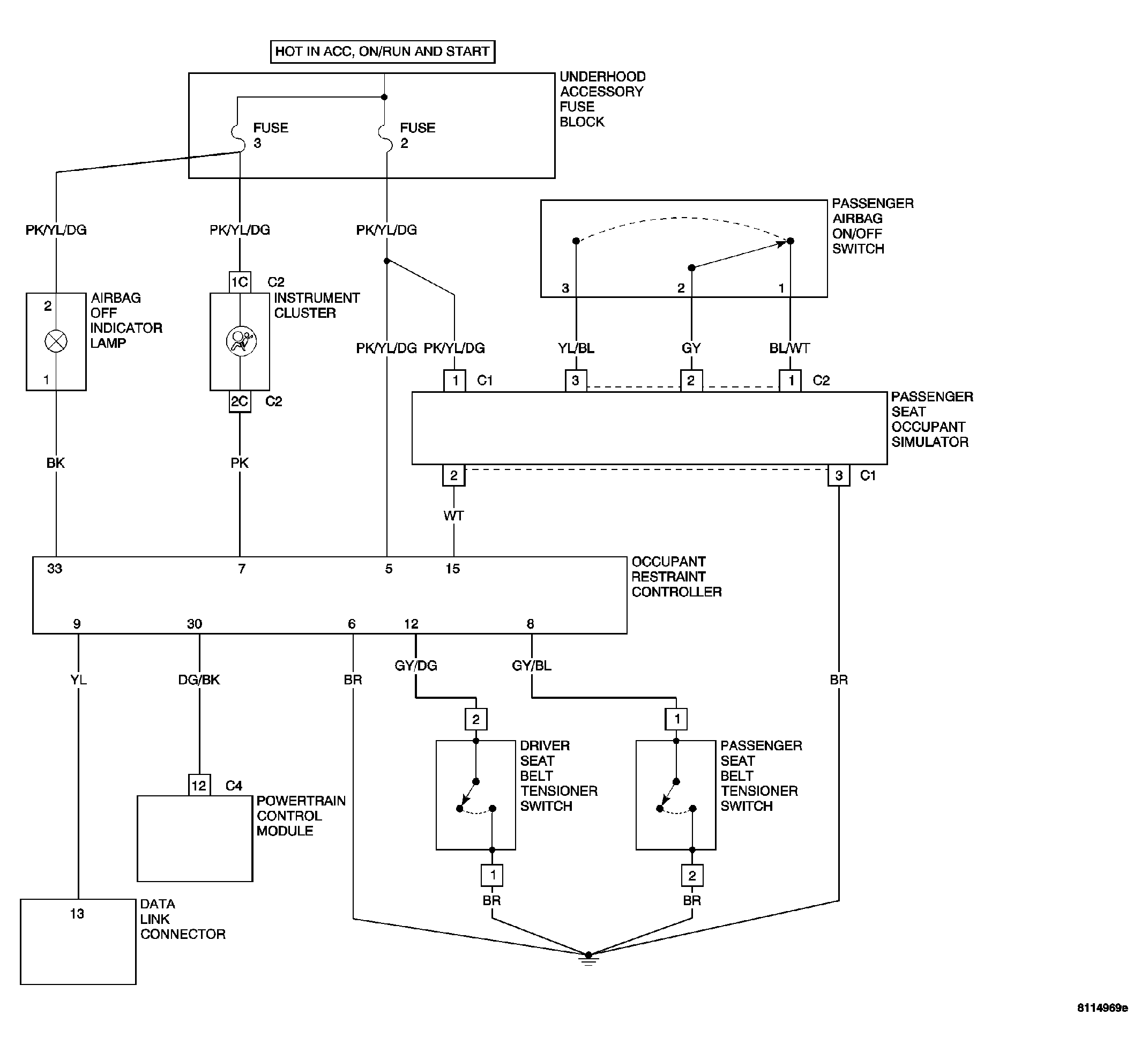

Fig 1: RESTRAINTS SYSTEM CIRCUIT DIAGRAM (1 OF 2)
GC0035572Courtesy of DAIMLERCHRYSLER CORP.

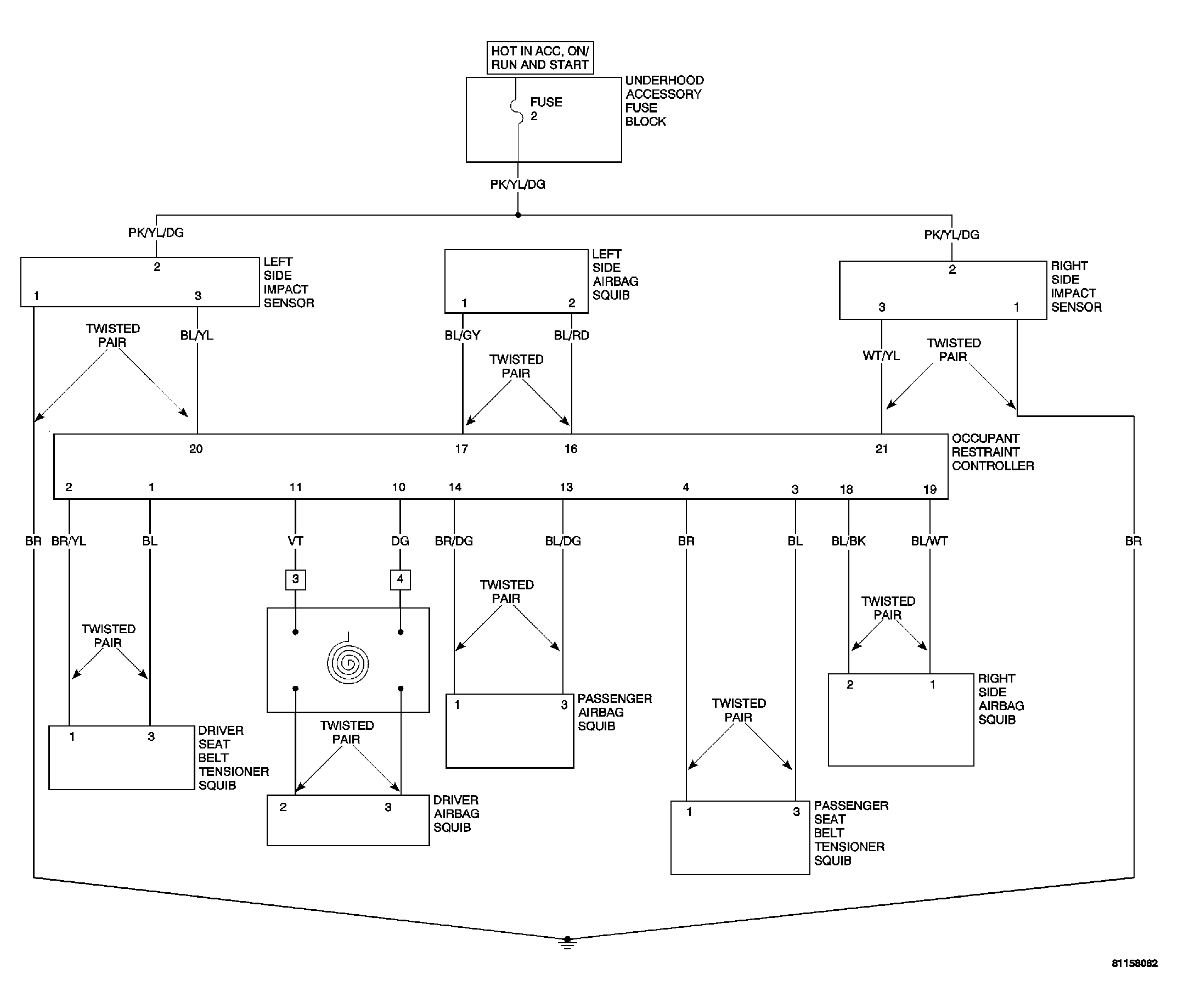

Fig 2: RESTRAINTS SYSTEM CIRCUIT DIAGRAM (2 OF 2)
GC0035573Courtesy of DAIMLERCHRYSLER CORP.
