Crossfire Limited, 2D Convertible, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Charging System
>>
Charging System
>>
Schematics And Diagrams
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematics And Diagrams

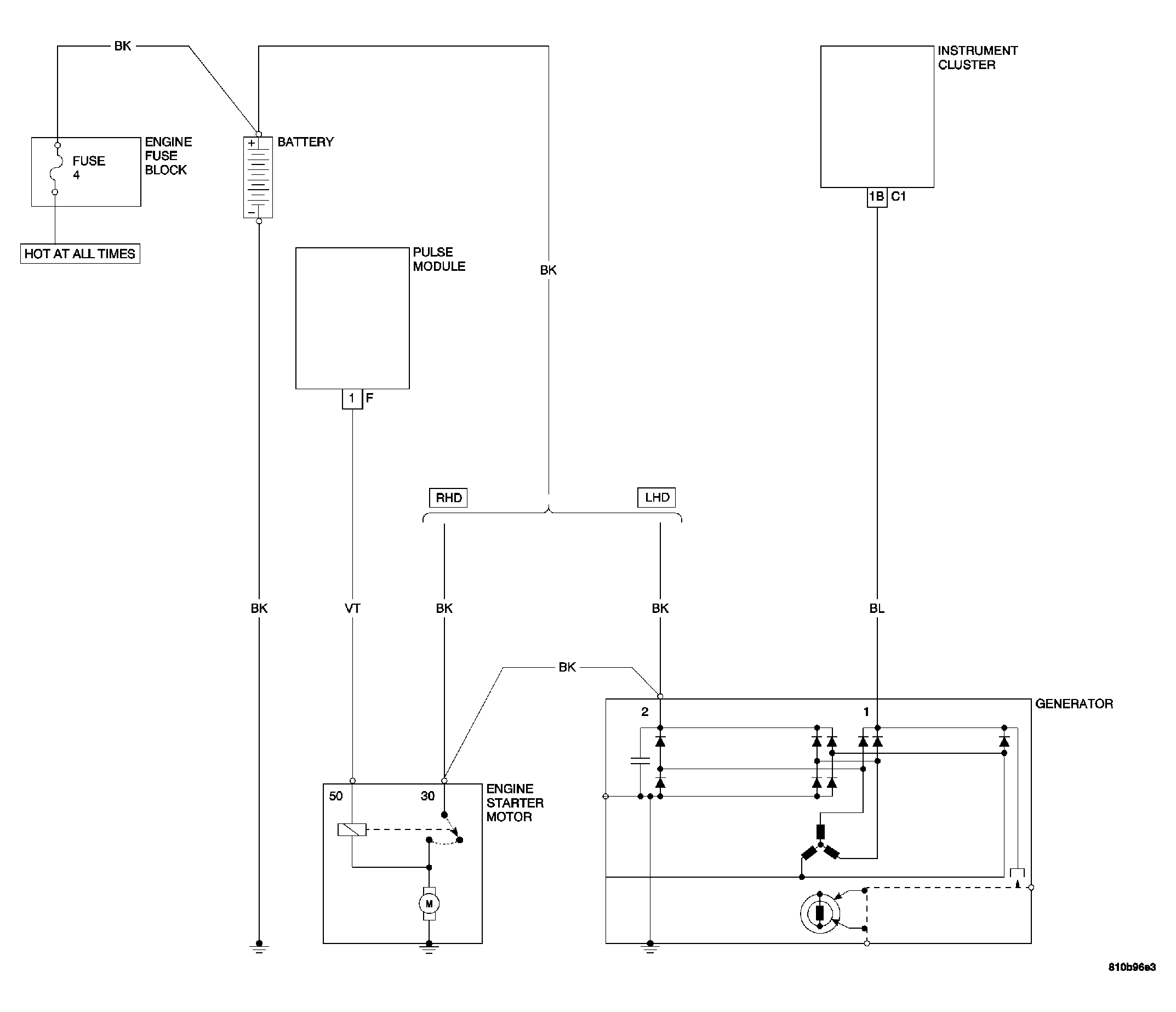

Fig 1: CHARGING SYSTEM CIRCUIT DIAGRAM
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
