Keyless Entry Relay: Service and Repair

REMOVAL

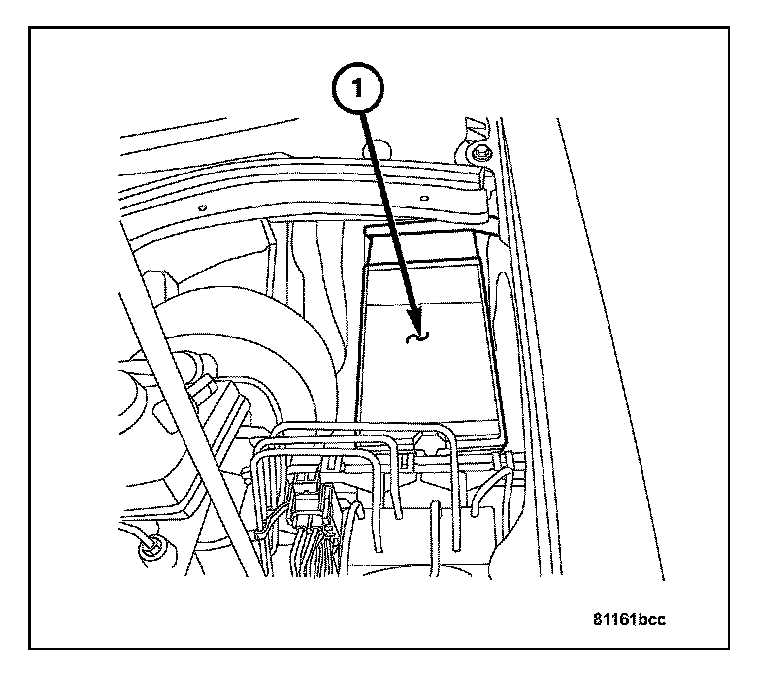

1. Remove the underhood accessory fuse block lid (1).

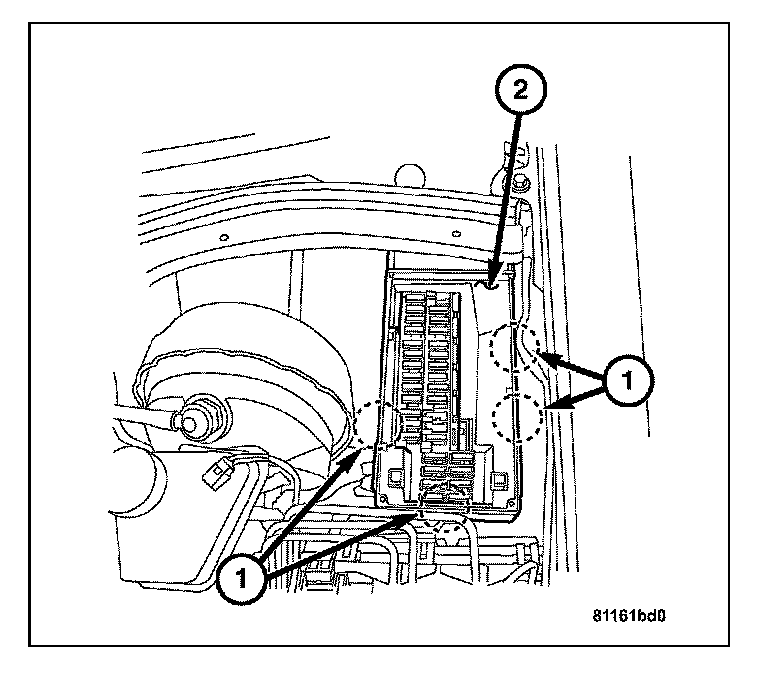

2. Carefully release the four tabs (1) to remove the underhood accessory fuse block cover panel (2).

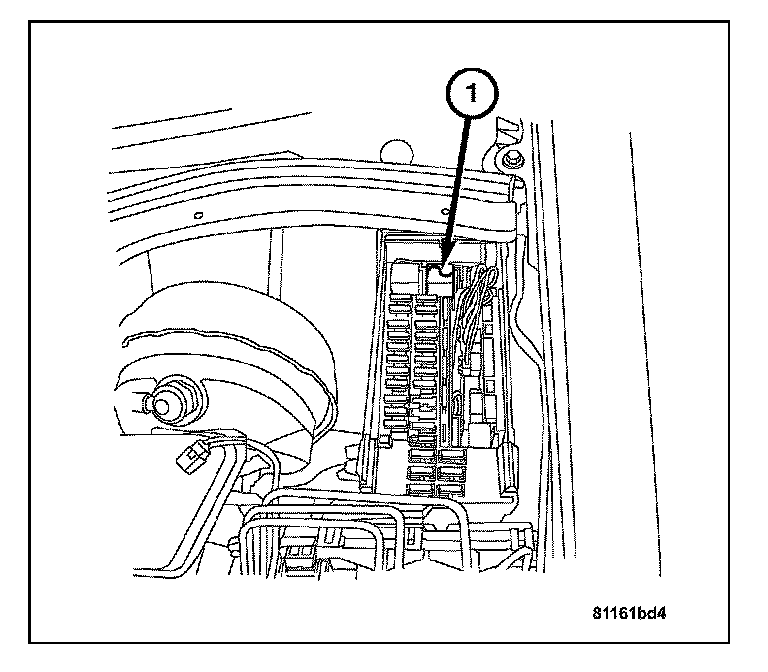

3. Remove the remote keyless entry relay (1).

INSTALLATION

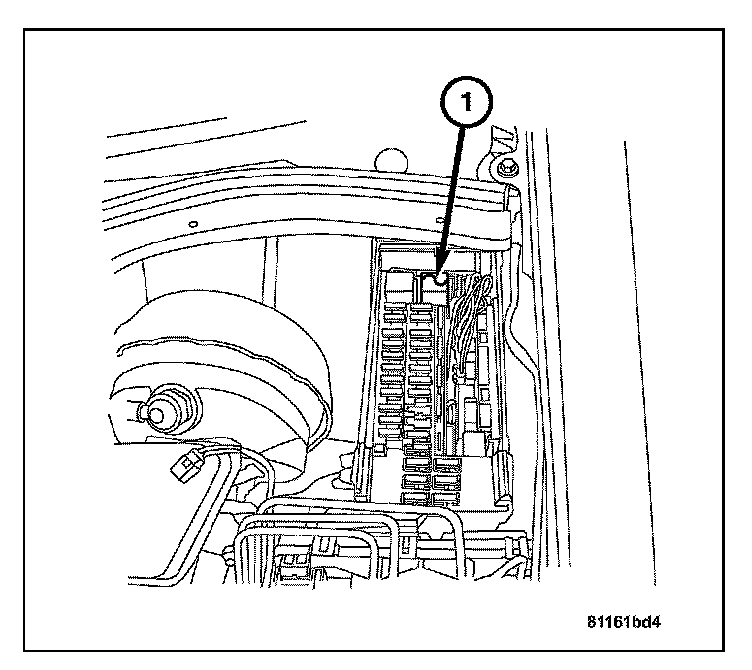

1. Install the remote keyless entry relay (1).




2. Install the underhood accessory fuse block cover panel (2) and secure it by snapping the retention tabs (1) into place.




3. Install the underhood accessory fuse block lid (1).
