Manifold Pressure/Vacuum Sensor: Service and Repair

REMOVAL




1. Disconnect the negative battery cable.
2. Remove the engine cover. Grasp both corners of the engine cover, and pull up firmly.
3. Disconnect the Manifold Absolute Pressure (MAP) sensor harness connector.

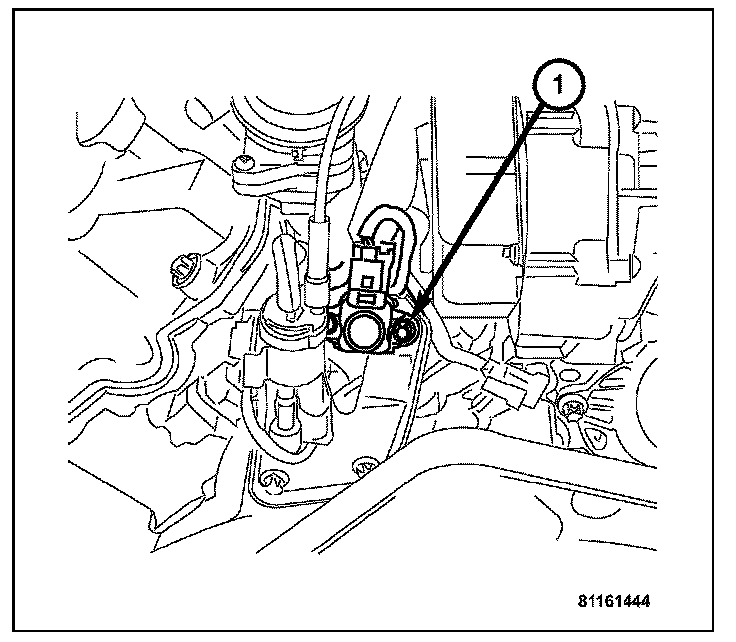

4. Remove the retaining bolt (1).
5. Remove the MAP sensor.

INSTALLATION




1. Install the MAP sensor.

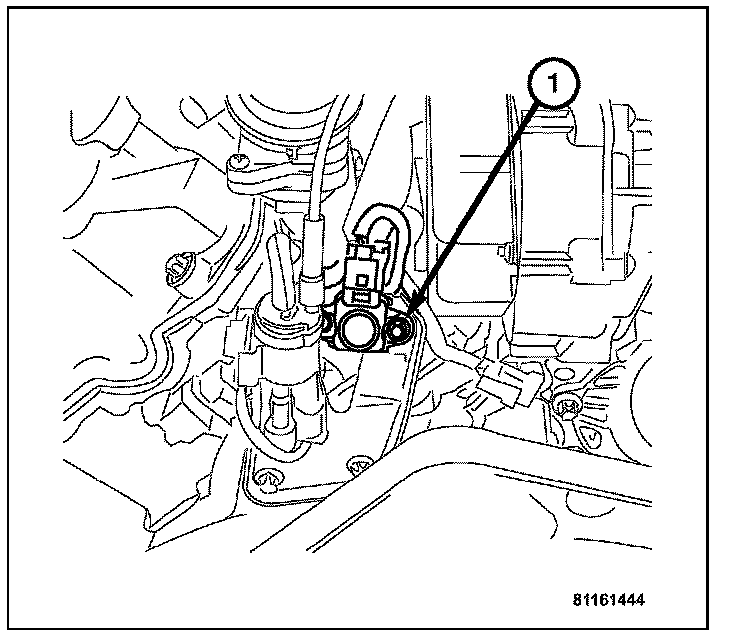

2. Install the bolt (1).
3. Connect the Manifold Absolute Pressure (MAP) harness connector.
4. Install the engine cover. Align the engine cover retaining clips to the rubber mounts, and push down firmly to connect engine cover to rubber mounts.

NOTE: To ease the installation of the engine cover, apply a small amount of lubricant to the engine cover rubber mounts.

5. Connect the negative battery cable.
