Power Distribution: Relay: Removal

Disconnect and isolate the battery negative cable.
Remove cover from Power Distribution Center (PDC).
Using special tool C-4817, grip the relay by the sides and pull upward with an even effort. See Fig 1.

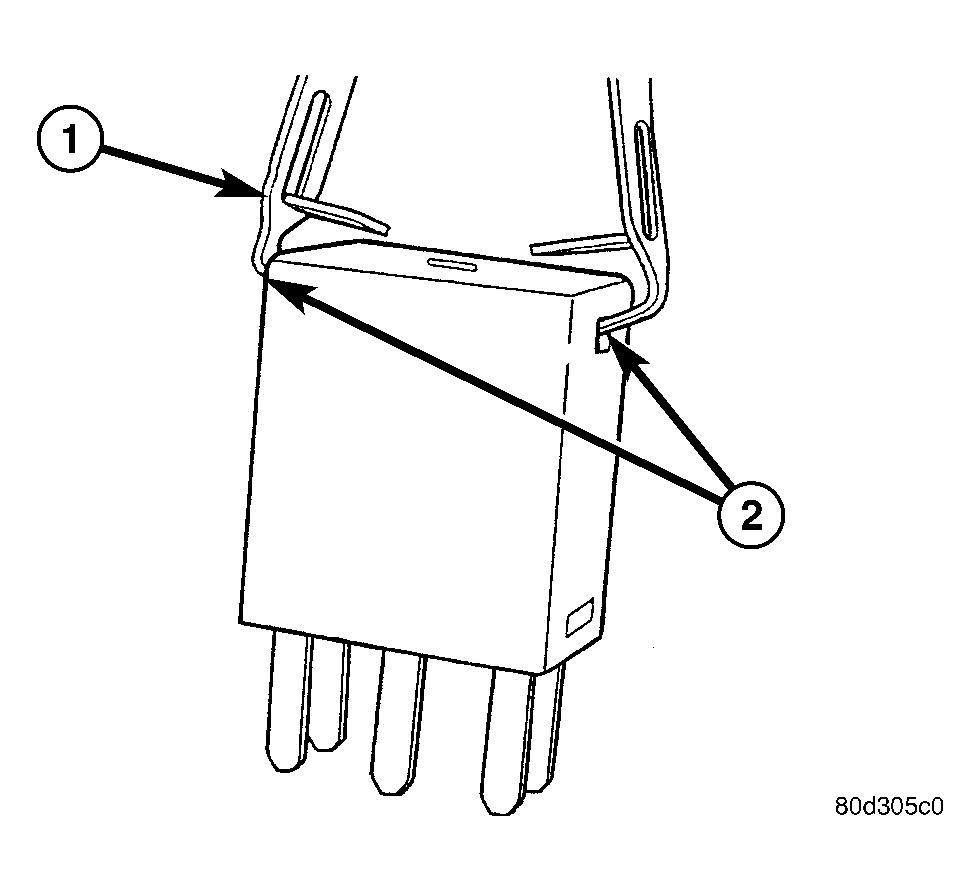

Fig 1: Relay Removal

Courtesy of DAIMLERCHRYSLER CORP.

1 - SPECIAL TOOL C-4817

2 - RELAY
