Ambient Temp Sensor: Removal

Working through the hole in the top center of the grille, remove the one retaining nut from the appropriate ambient temperature sensor. See Fig 1.

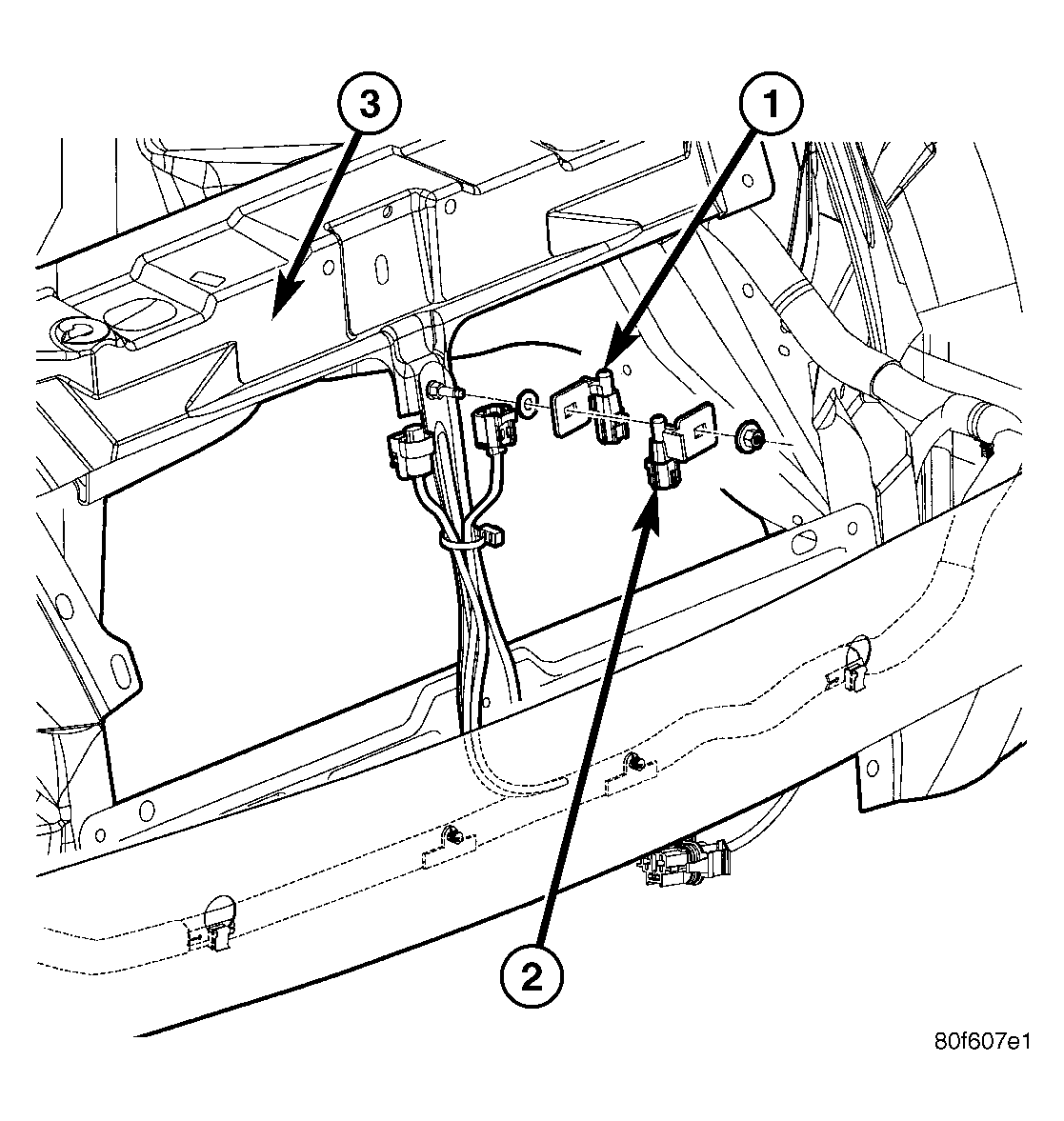

Fig 1: Ambient Air Temperature Sensor Location

Courtesy of DAIMLERCHRYSLER CORP.

1 - Air Temperature Sensor - NGC Engine Controller

2 - Air Temperature Sensor - Overhead Console

3 - Radiator Closure Panel

Disconnect the ambient air temperature sensor electrical connector and remove the sensor from the vehicle.
