Multi-Function Switch - Gray 20 Way

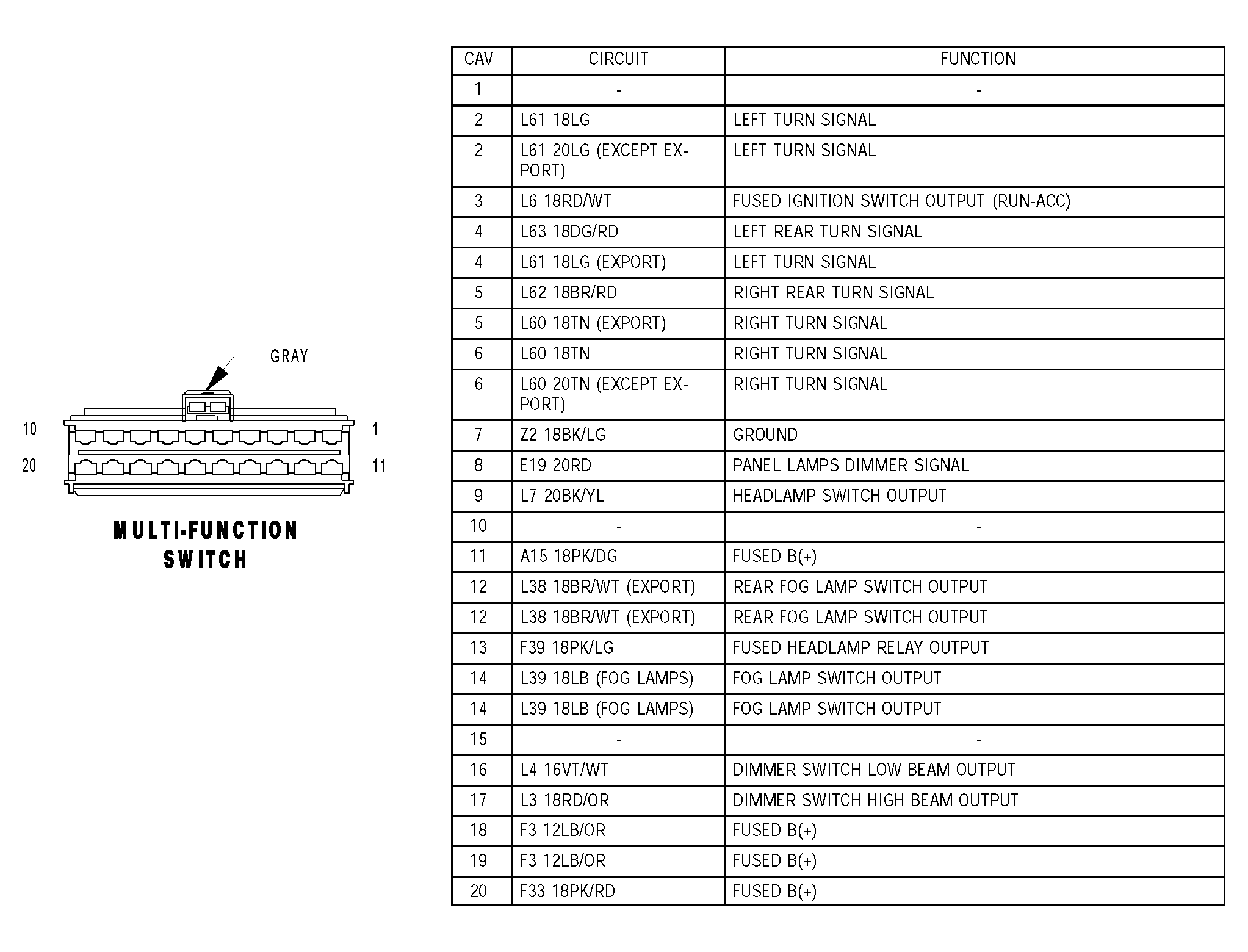

Fig 1: Identifying Multi-Function Switch - Connector Pinouts
G04549086Courtesy of DAIMLERCHRYSLER CORP.
