Clutch Interlock/UPSTOP Switch: Description

The clutch interlock/upstop switch is an assembly consisting of two switches: an engine starter inhibit switch (interlock) and a clutch pedal upstop switch. See Fig 1. The switch assembly is located in the clutch/brake pedal bracket assembly, each switch being fastened by four plastic wing tabs. See Fig 2.

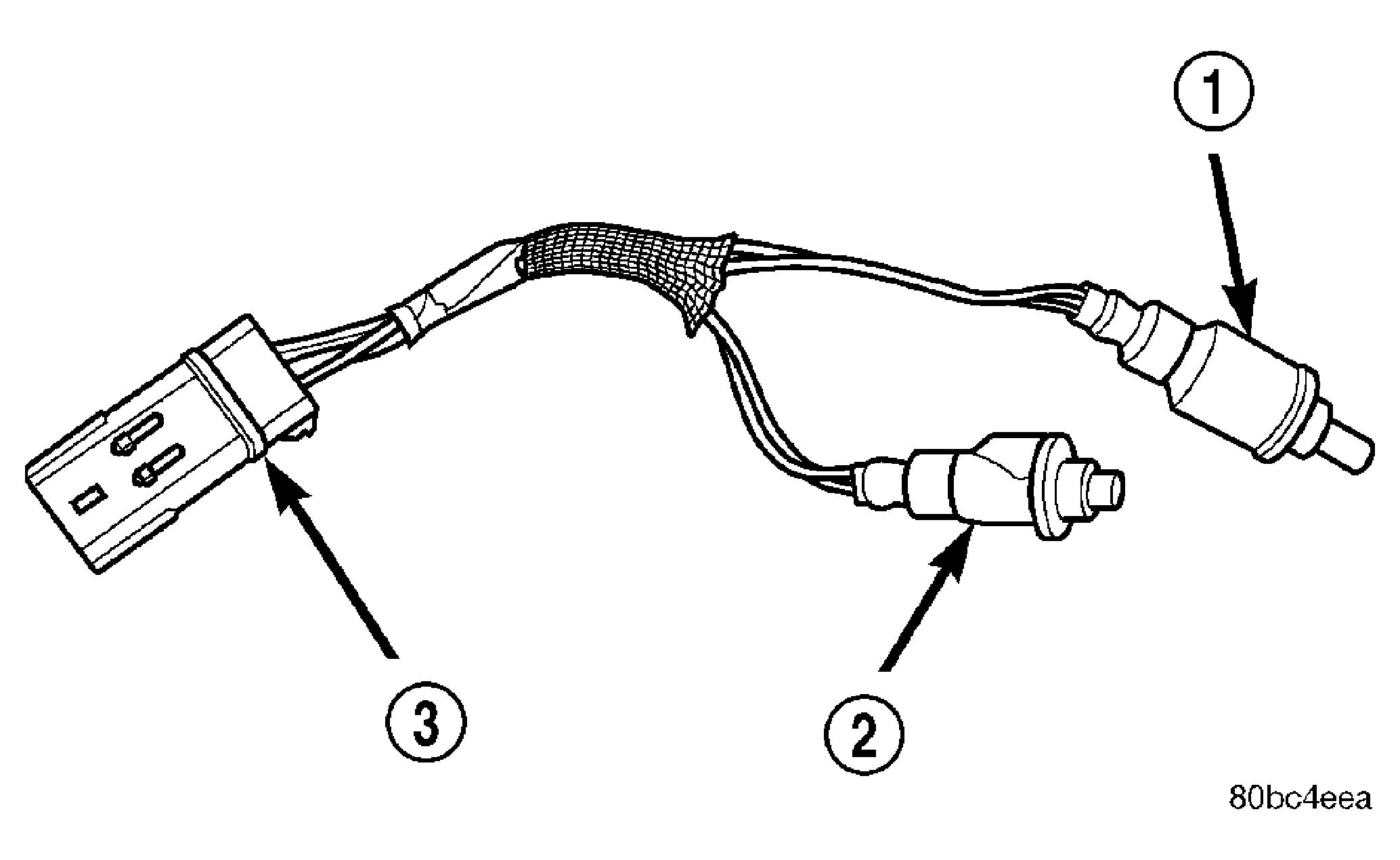

Fig 1: Clutch Interlock/Upstop Switch

Courtesy of DAIMLERCHRYSLER CORP.

1 - UPSTOP SWITCH (IF EQUIPPED)

2 - INTERLOCK SWITCH

3 - CONNECTOR

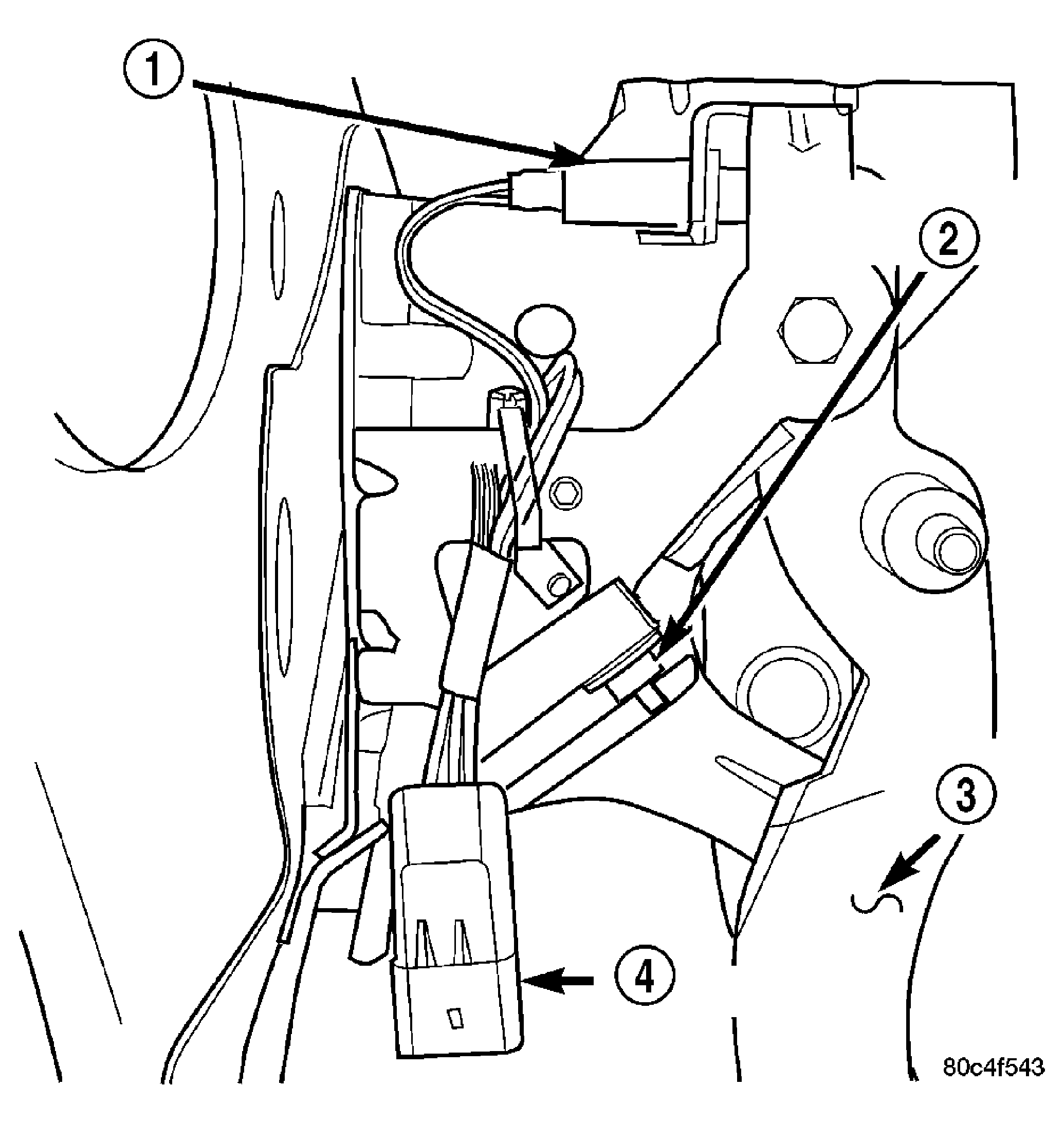

Fig 2: Clutch/Brake Pedal Bracket

Courtesy of DAIMLERCHRYSLER CORP.

1 - UPSTOP SWITCH (IF EQUIPPED)

2 - INTERLOCK SWITCH

3 - CLUTCH PEDAL

4 - CONNECTOR
