Clutch System: Flywheel: Installation

  1. Clean the surfaces of the flywheel and pressure plate to make certain that all oil, grease, and rust have been removed.

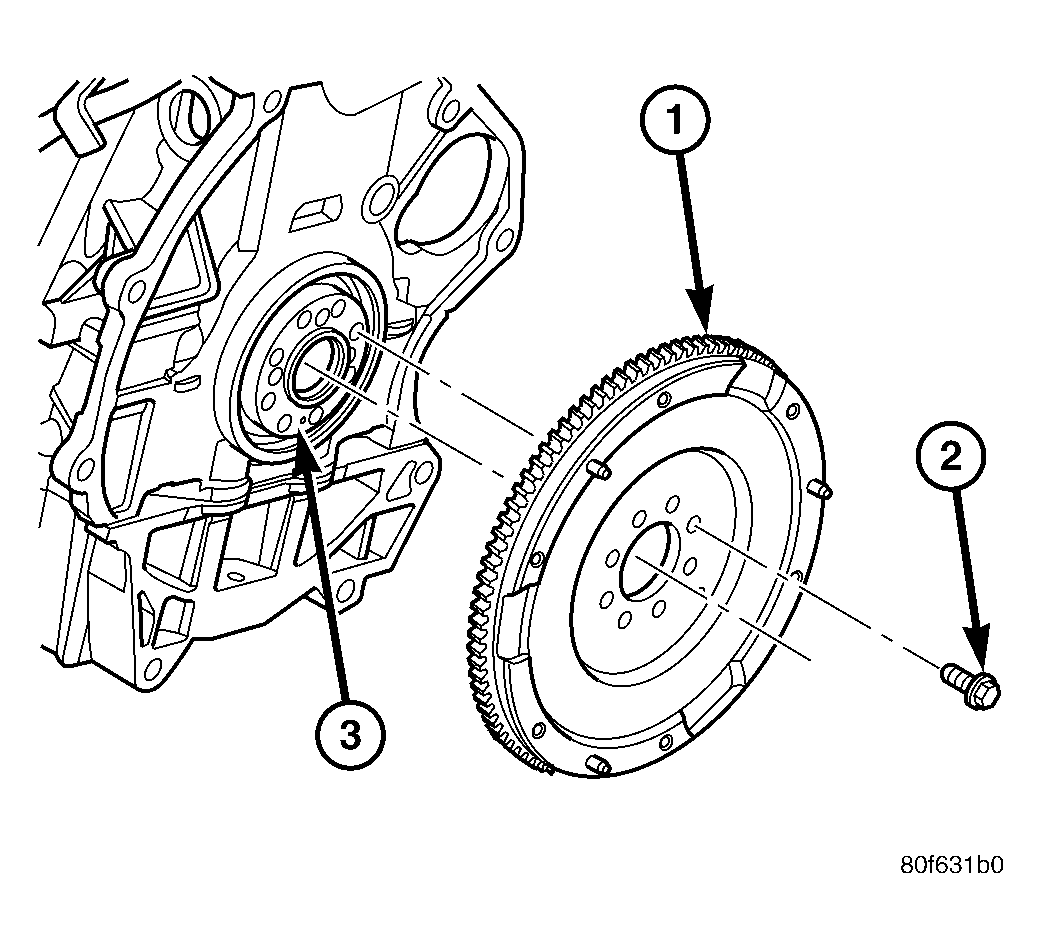

  2. 2.2L Diesel Engine Equipped Models & 2.4L. See  Figure :  Install flywheel to crankshaft. Install eight (8) flywheel-to-crankshaft bolts and torque to 45 N.m (33 ft. lbs.) plus an additional 1/4 turn (90°).1.6L Engine Equipped Models. See  Figure :   Install and torque the flywheel-to-crankshaft bolts to 95 N.m (70 ft. lbs.).
  3. Install clutch pressure plate and disc (Refer to CLUTCH/CLUTCH DISC - INSTALLATION) .
  4. Install transaxle assembly (Refer to TRANSMISSION/TRANSAXLE/MANUAL - INSTALLATION) or (Refer to TRANSMISSION/TRANSAXLE/MANUAL - INSTALLATION) .
