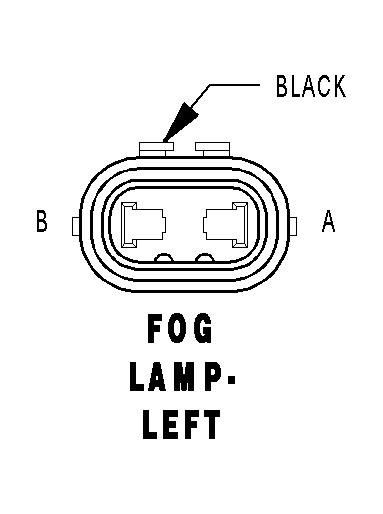

Left Fog Lamp Connector End View
FOG LAMP-LEFT - BLACK 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| A |
L89 18WT/YL |
LEFT FRONT FOG LAMP DRIVER |
| B |
Z349 18BK/YL |
GROUND |
