Wheel Speed Sensor - Front: Installation

  1. Apply bearing grease (supplied with part) to sensor head shaft and O-ring.
    2. CAUTION: Ensure that sensor mounting surface on bearing is clean before sensor installation.
  2. Push sensor head into mounting hole in hub and bearing and align mounting screw hole.

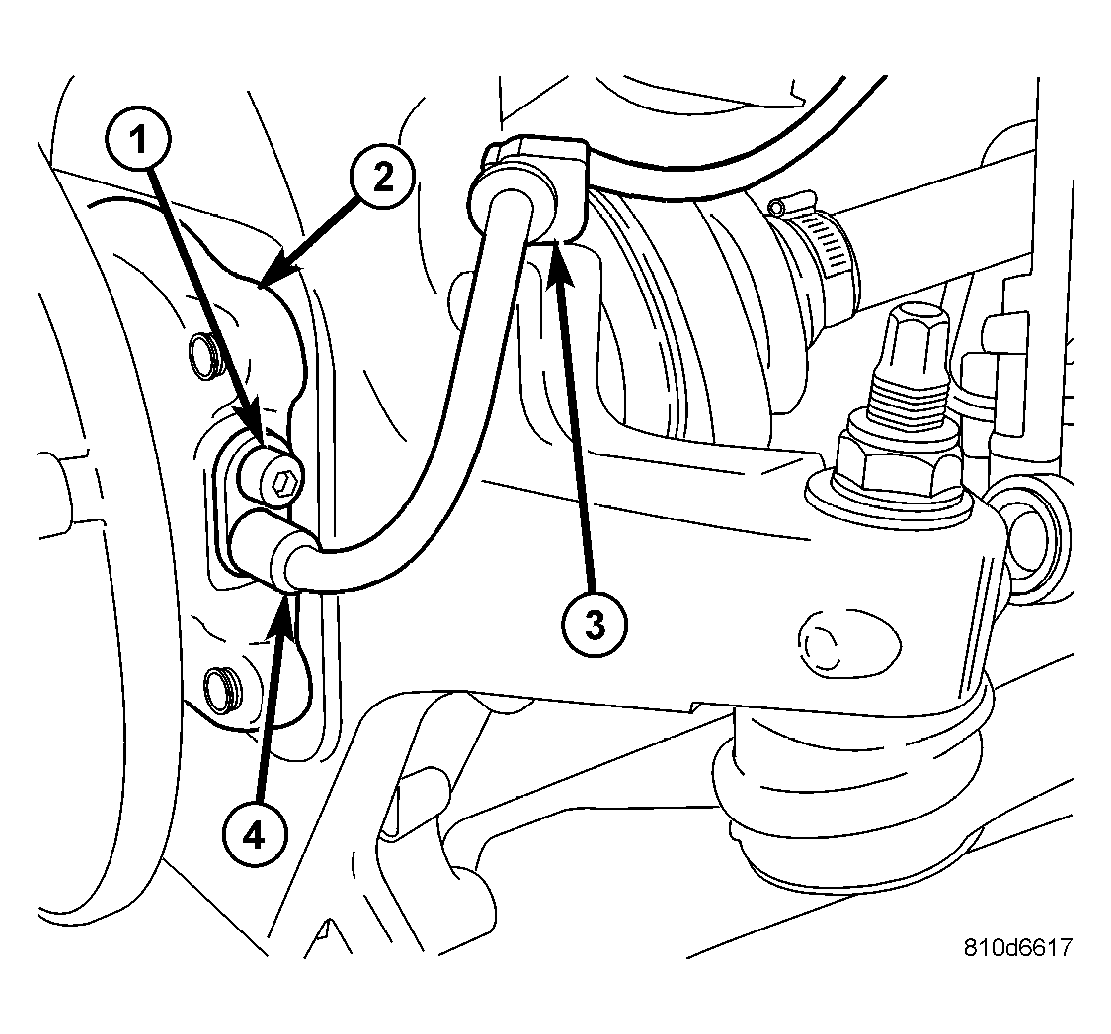

  3. Install NEW mounting screw. See Figure. Tighten mounting screw to 20 N.m (15 ft. lbs.) torque.
  4. Place wheel speed sensor cable grommet into routing clip at knuckle and close clip. See Figure.

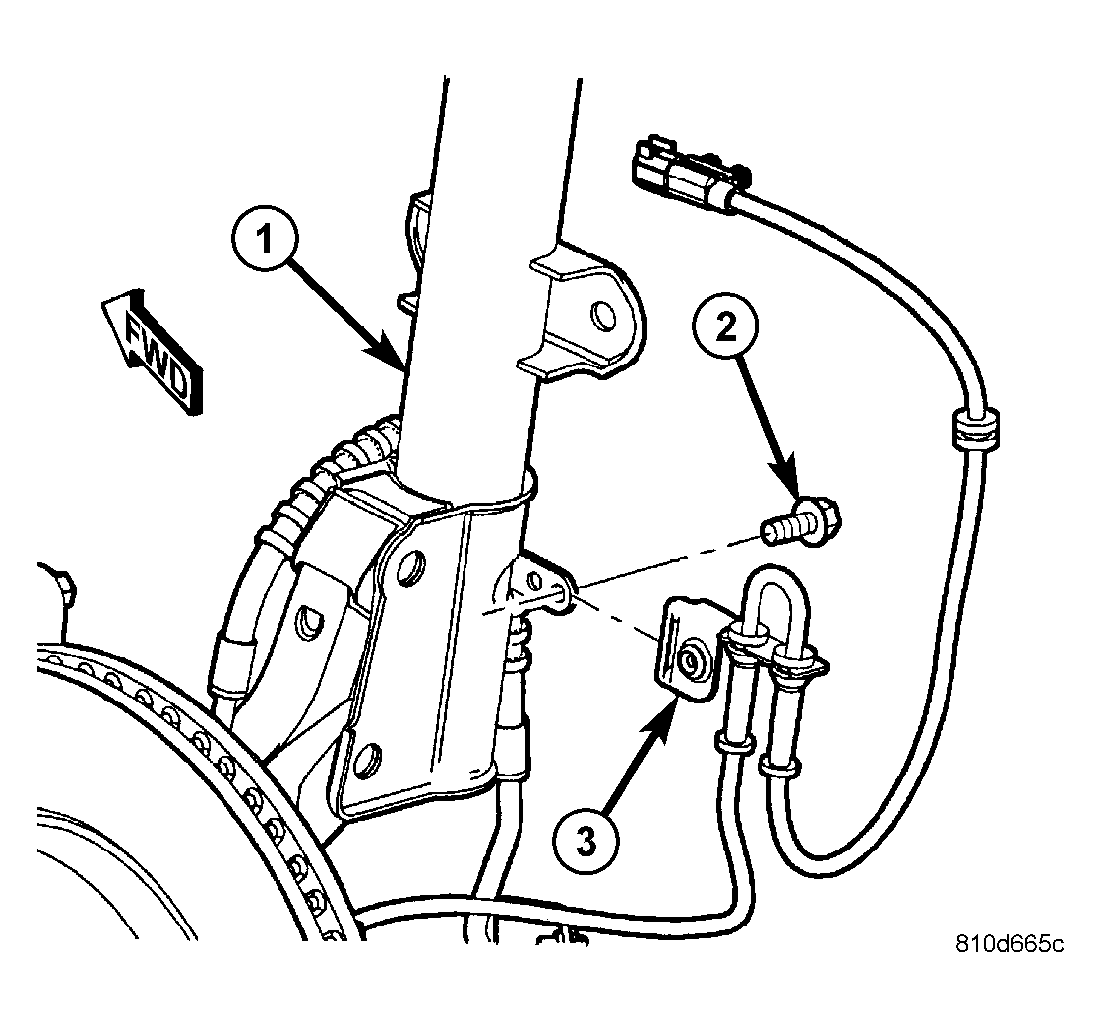

  5. Attach wheel speed sensor routing bracket to strut assembly. See Figure. Tighten screw to 13 N.m (115 in. lbs.) torque.

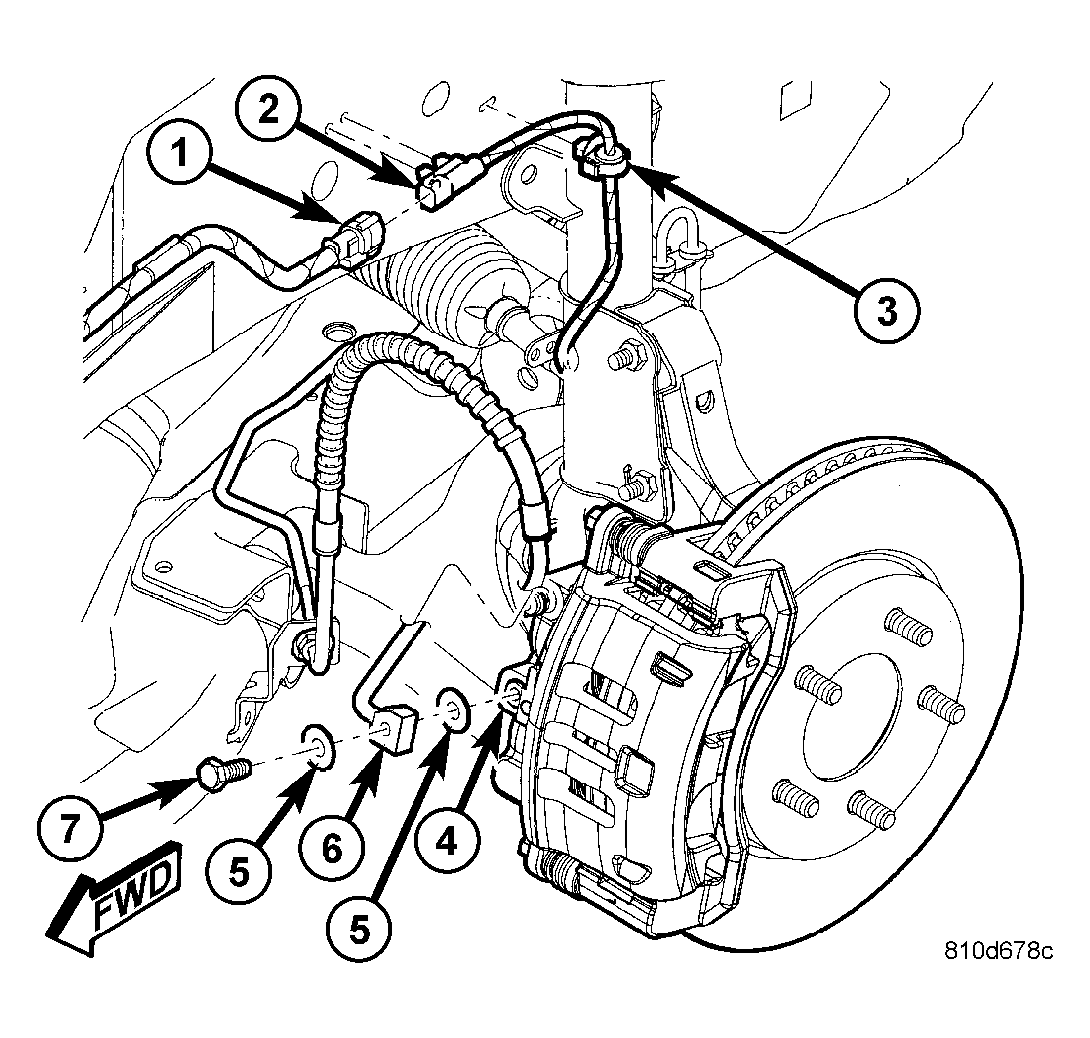

  6. Clip wheel speed sensor connector and routing clip to frame rail outer reinforcement. See Figure.
  7. Connect vehicle wiring harness to wheel speed sensor connector. See Figure.
  8. Install brake rotor as well as all components necessary to access it. (Refer to BRAKES/HYDRAULIC/MECHANICAL/ROTOR - INSTALLATION)
  9. Verify that wheel speed sensor cable is properly routed and not coming into contact with rotor or other moving parts.
  10. Road test vehicle to ensure proper operation of the base brakes and ABS.
