Wheel Speed Sensor - Rear: Installation

  1. Apply bearing grease (supplied with part) to sensor head shaft and O-ring.
    2. CAUTION: Ensure that sensor mounting surface on bearing is clean before sensor installation.
  2. Push sensor head into mounting hole in hub and bearing and align mounting screw hole.

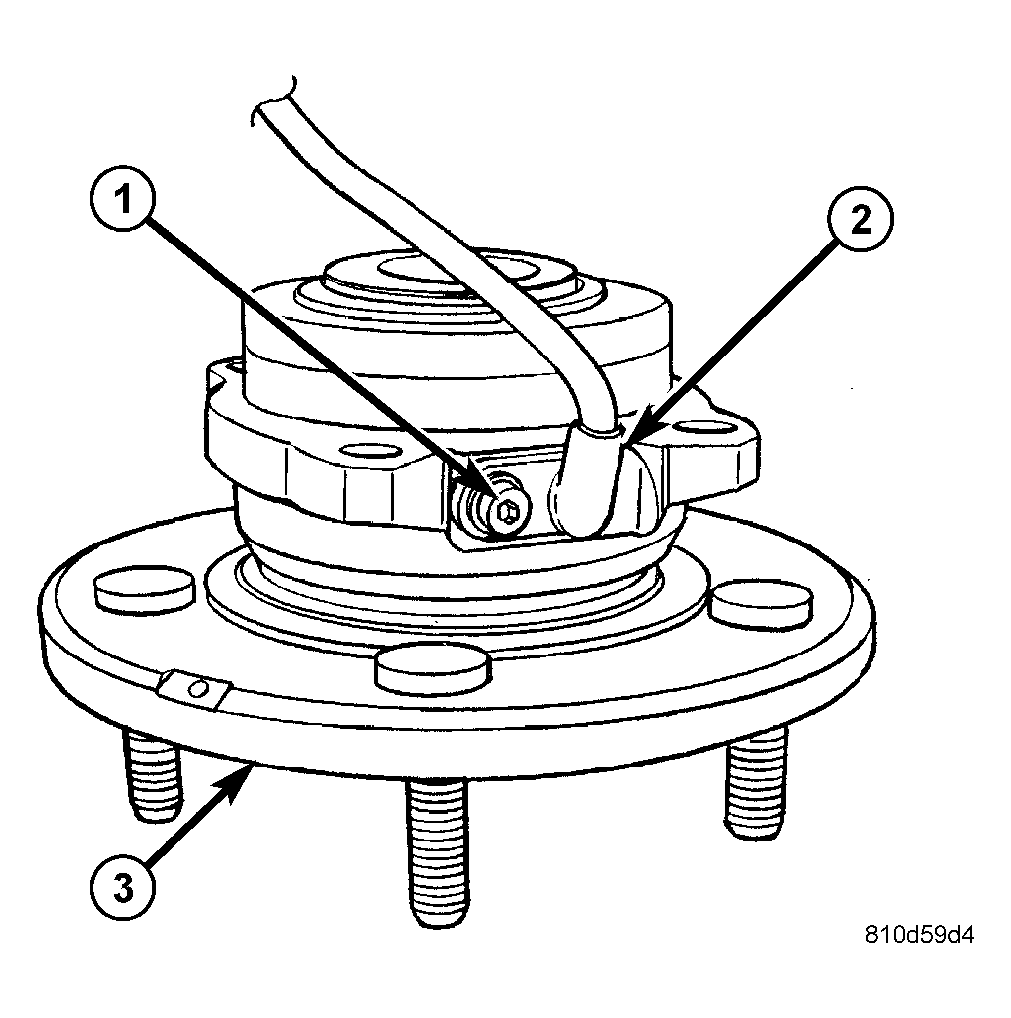

  3. Install NEW mounting screw. See Figure. Tighten mounting screw to 20 N.m (15 ft. lbs.) torque.
  4. Install hub and bearing with wheel speed sensor as well as all components necessary to access it. (Refer to SUSPENSION/REAR/HUB / BEARING - INSTALLATION)
  5. Road test vehicle to ensure proper operation of the base brakes and ABS.
