Oil Pan, Engine

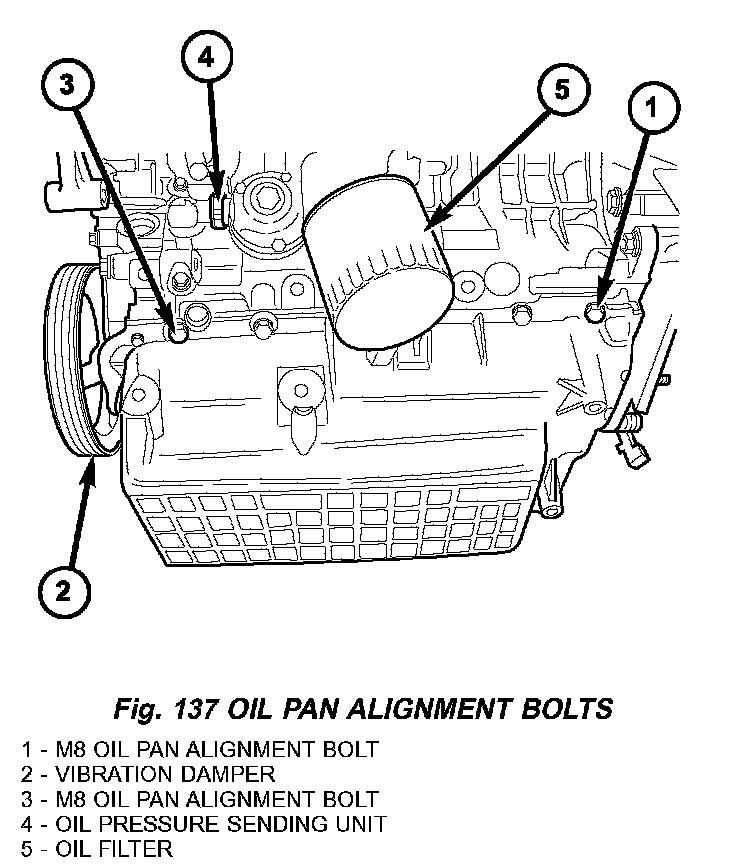

Oil Pan
-M6 Bolts 12 Nm (105 inch lbs.)
-M8 Bolts 28 Nm (250 inch lbs.)
Oil Pan Drain Plug 27 Nm (20 ft. lbs.)
