Air Bag Control Module

Occupant Classification Module:

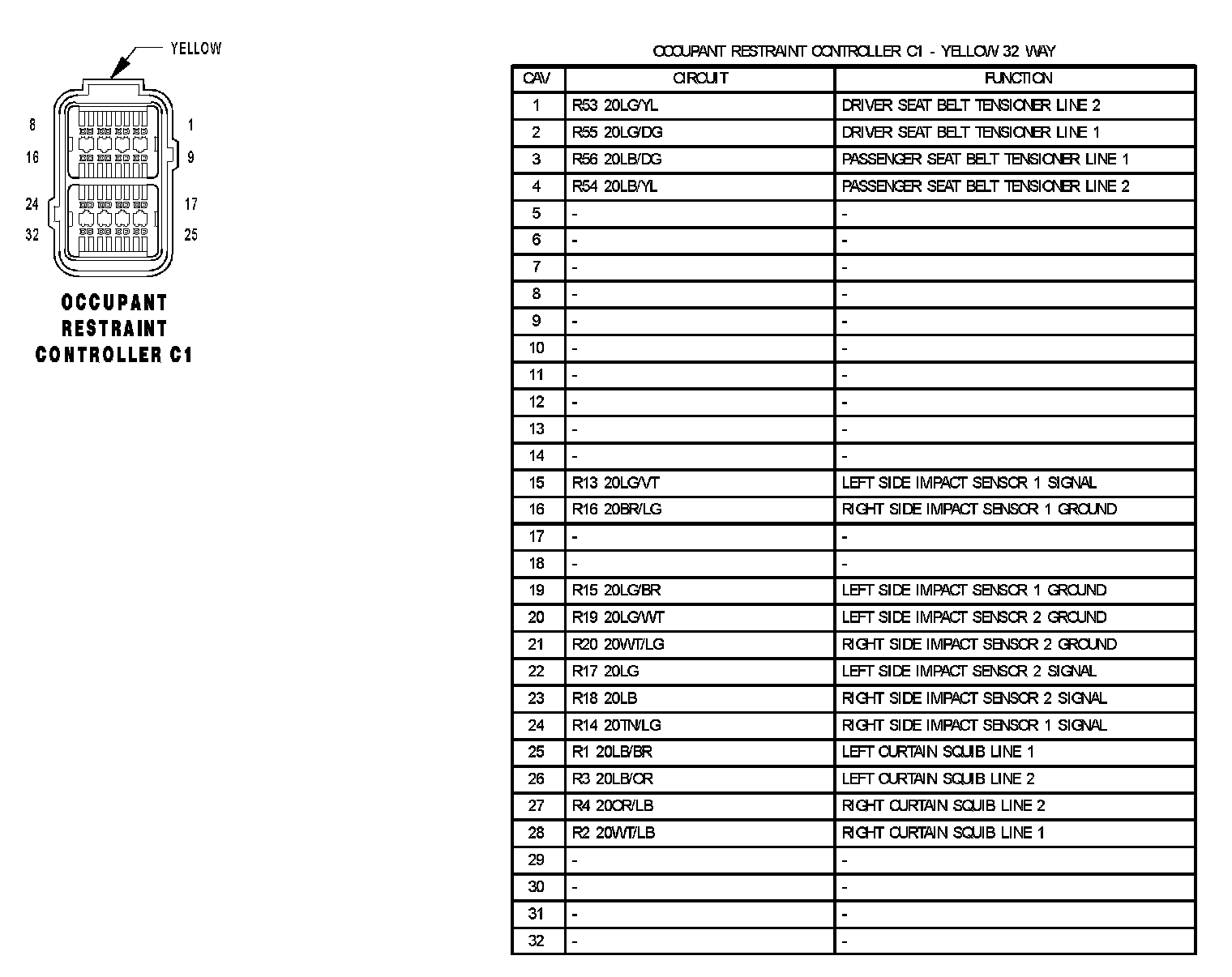

Occupant Restraint Controller:

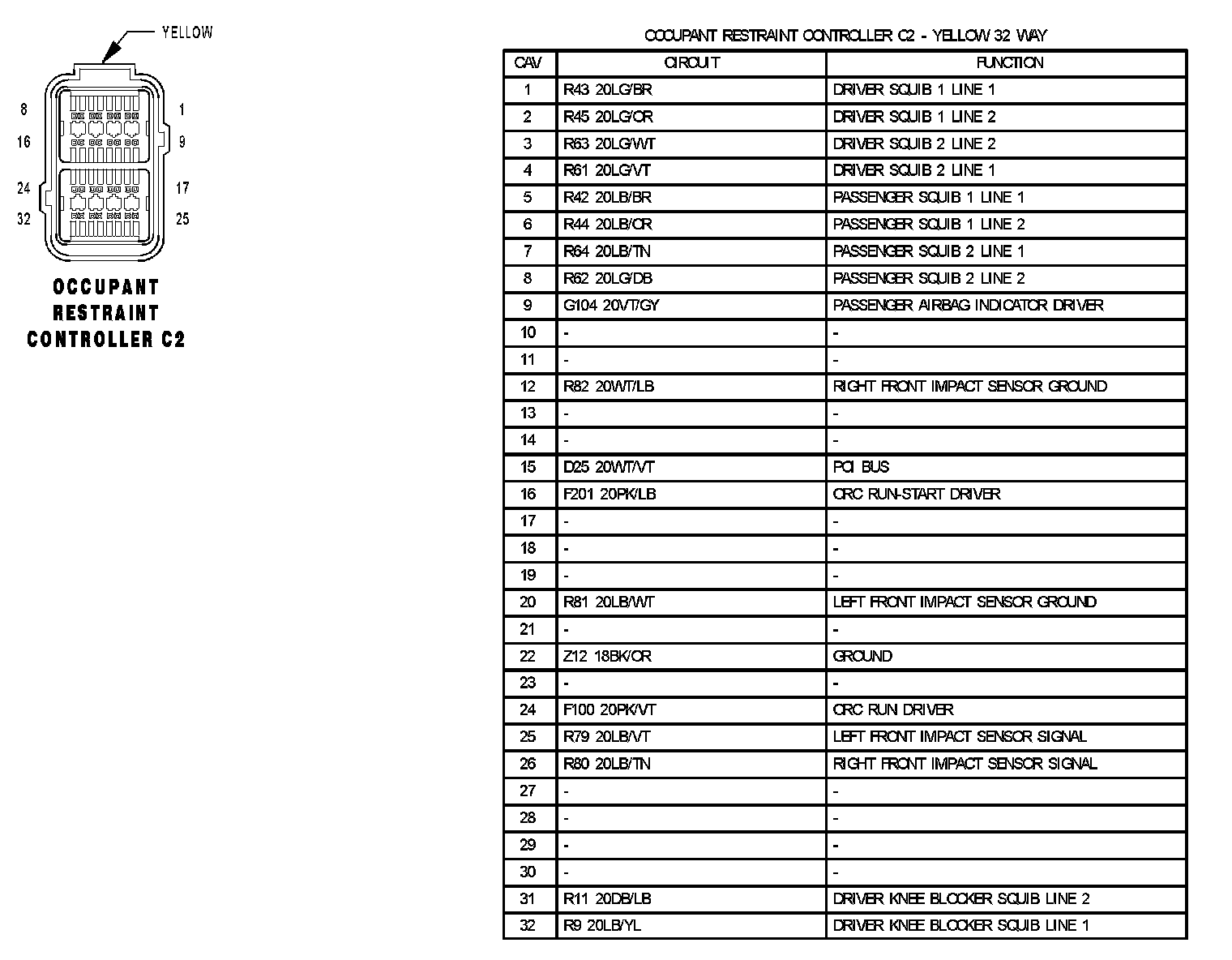

Occupant Restraint Controller C2:
