Fuel Level Sending Unit / Sensor: Installation

Insert level sensor wires into bottom of opening in module.
Wrap wires into groove in back of level sensor.
While feeding wires into guide grooves, slide level sensor up into channel until it snaps into place. Ensure tab at bottom of sensor locks in place.
Install level sensor wires in connector. Push the wires up through the connector and then pull them down until they lock in place. Ensure signal and ground wires are installed in the correct position.

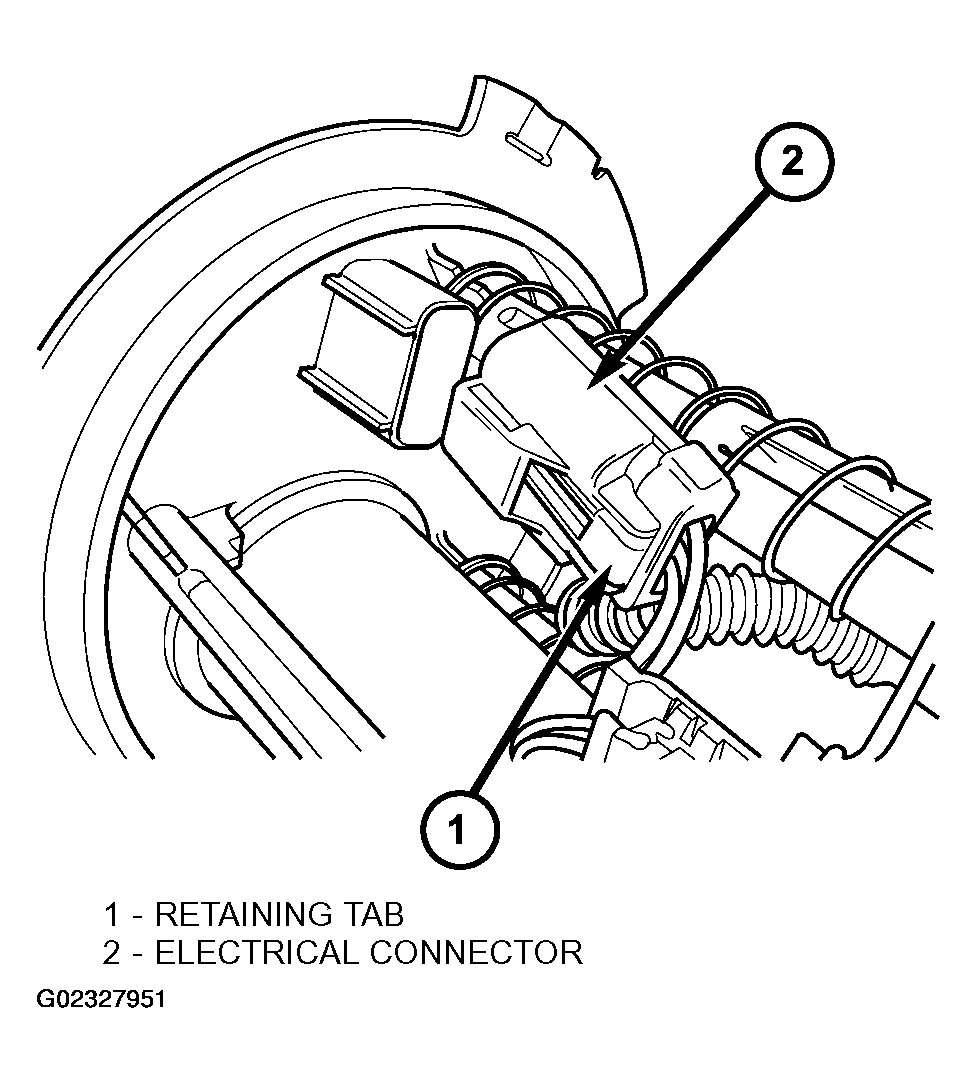

Fig 1: Electrical Connector
Courtesy of DAIMLERCHRYSLER CORPORATION

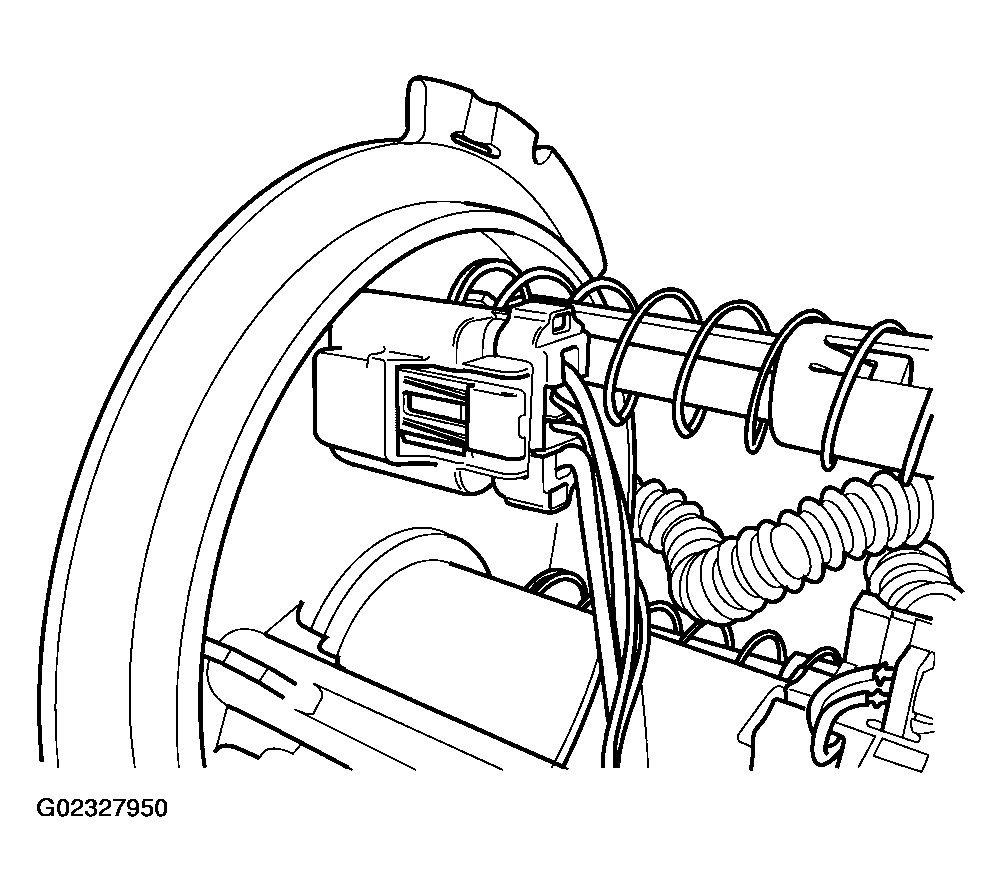

Fig 2: Fuel Pump/Level Sensor Electrical Connector
Courtesy of DAIMLERCHRYSLER CORPORATION
Install locking wedge on connector.
Push connector up into bottom of fuel pump module electrical connector.
Install fuel pump module. Refer to FUEL PUMP MODULE .

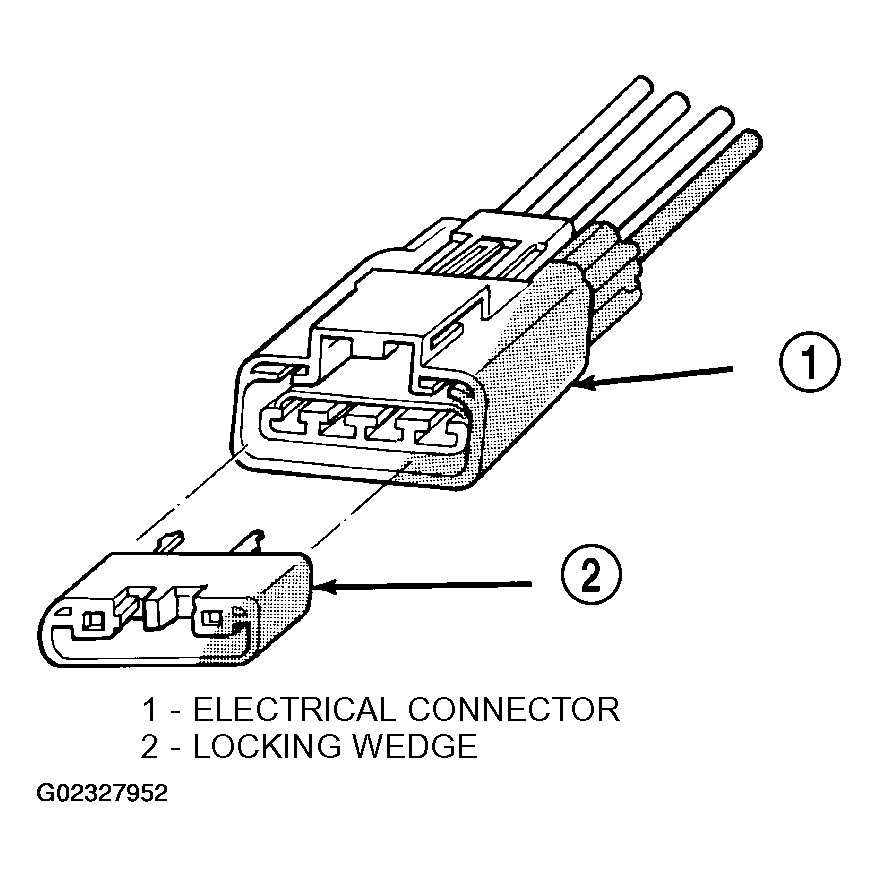

Fig 3: Wire Terminal Locking Wedge
Courtesy of DAIMLERCHRYSLER CORPORATION

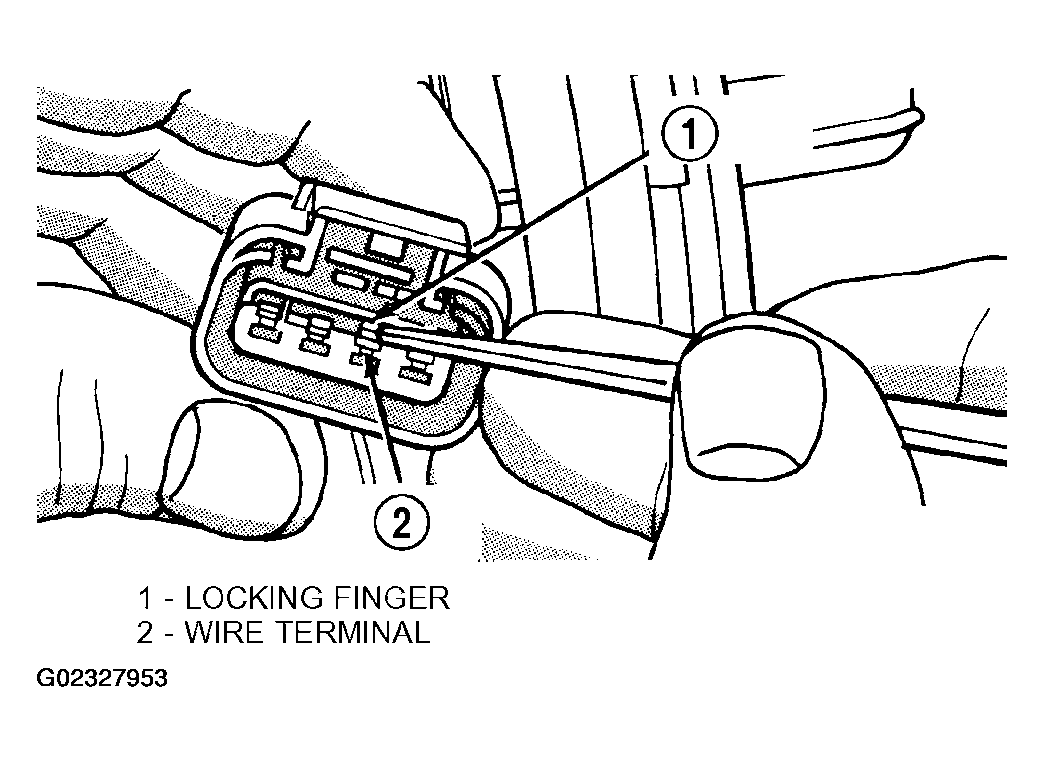

Fig 4: Removing Wires From Connector
Courtesy of DAIMLERCHRYSLER CORPORATION

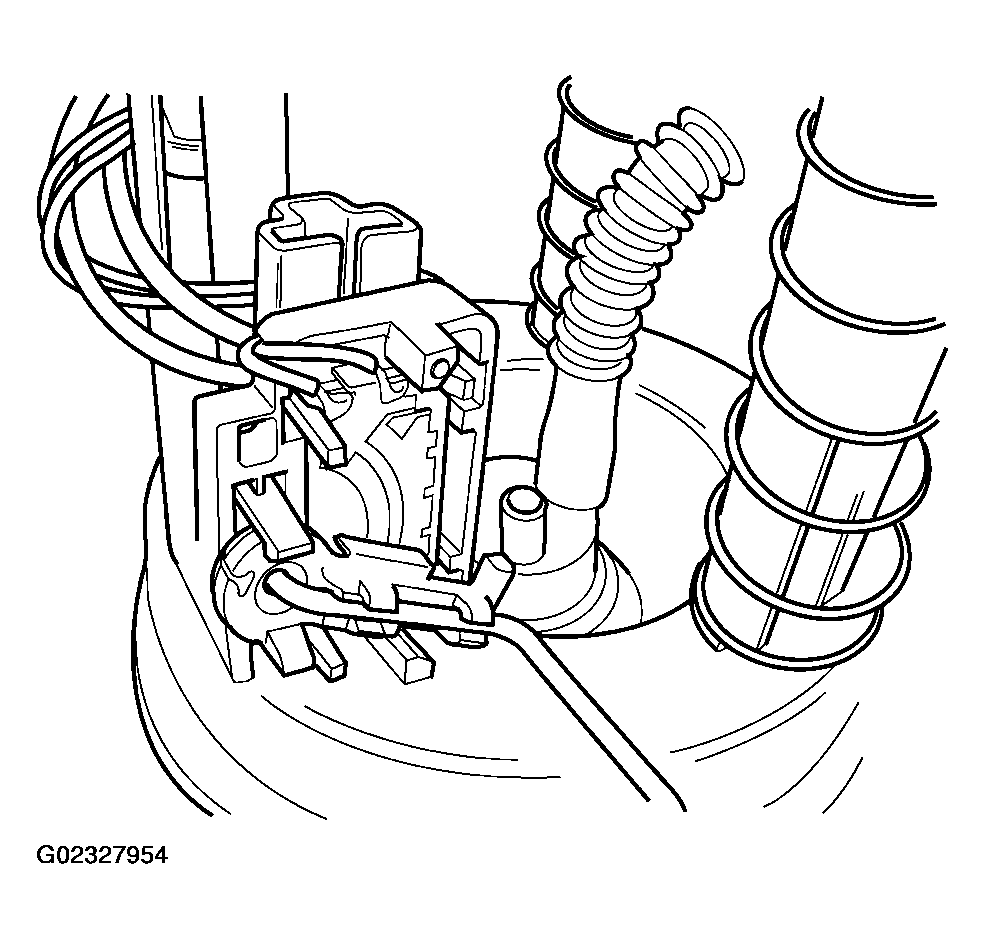

Fig 5: Level Sensor
Courtesy of DAIMLERCHRYSLER CORPORATION

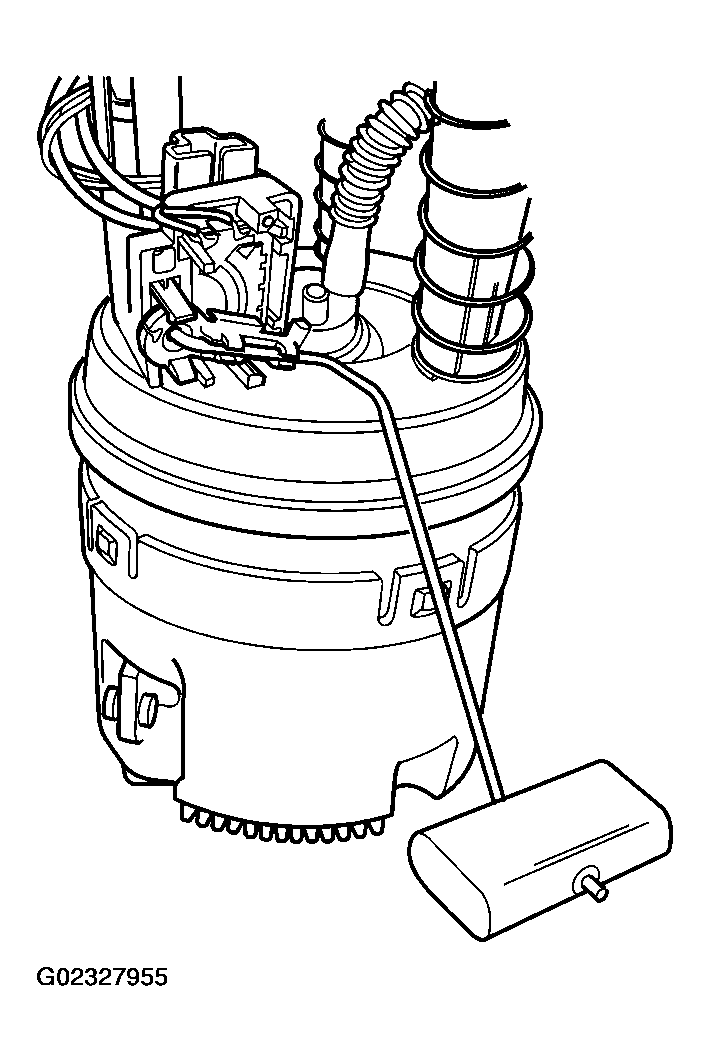

Fig 6: Level Sensor Arm
Courtesy of DAIMLERCHRYSLER CORPORATION
