Map Sensor: Description

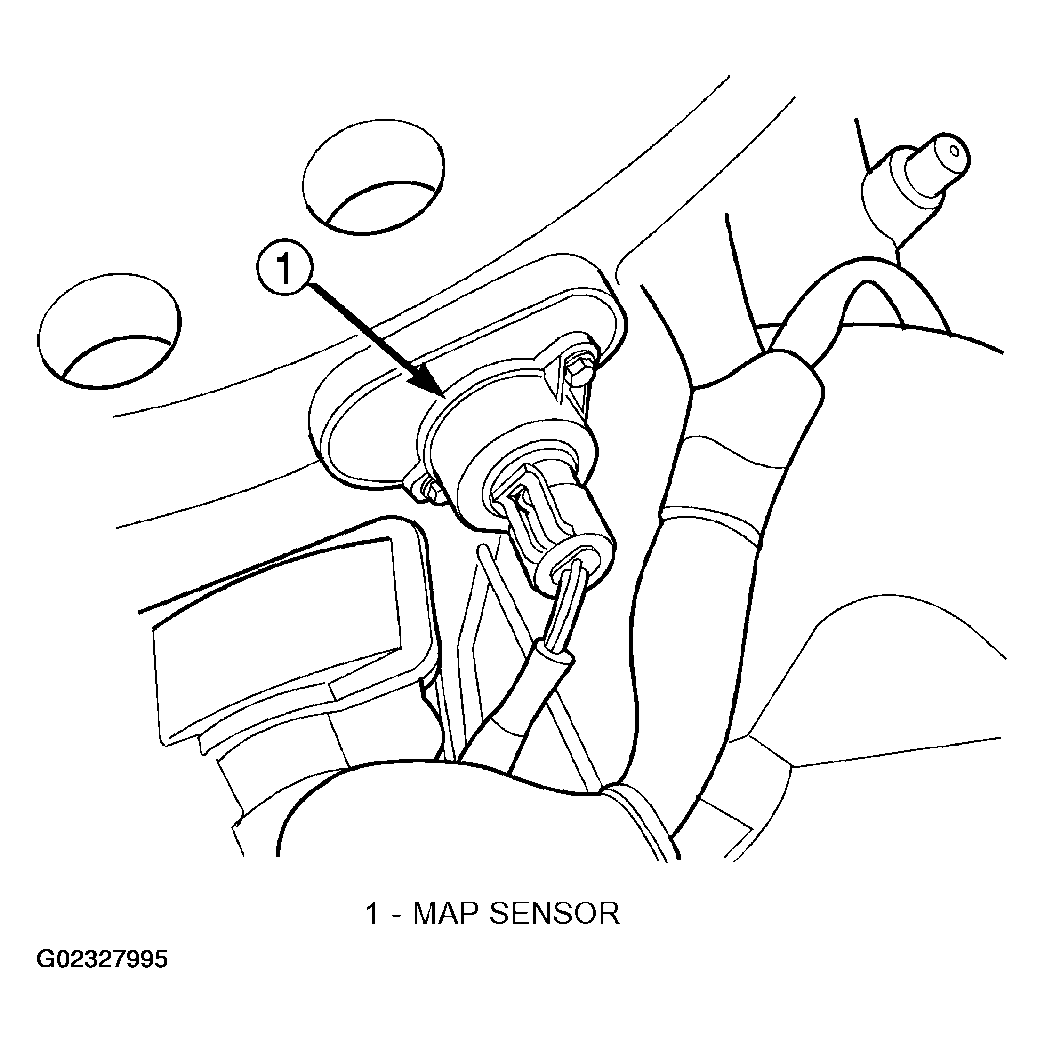

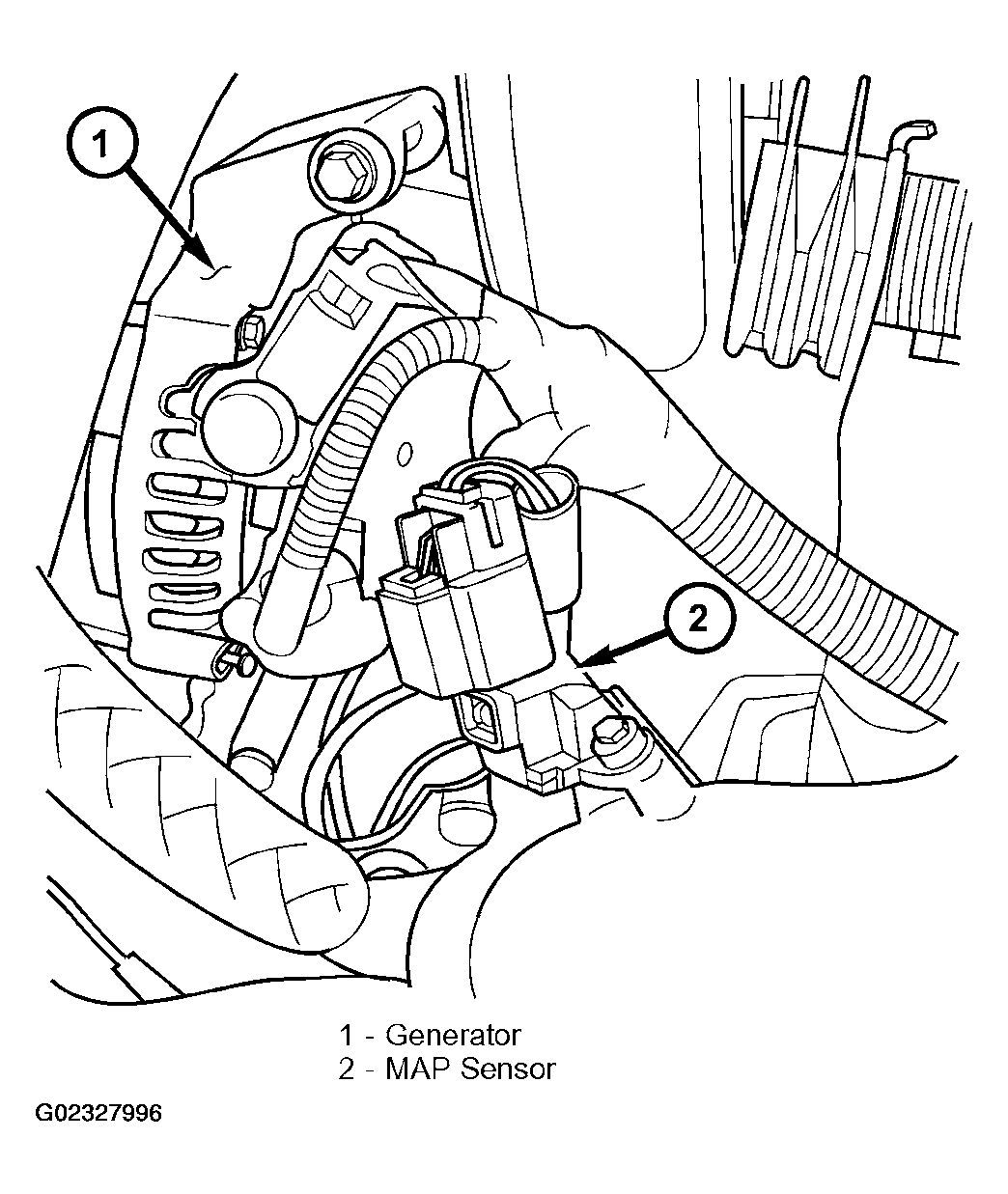

The MAP sensor mounts to the driver side of the intake manifold plenum (Figure) or (Figure).
