Disassembly And Assembly

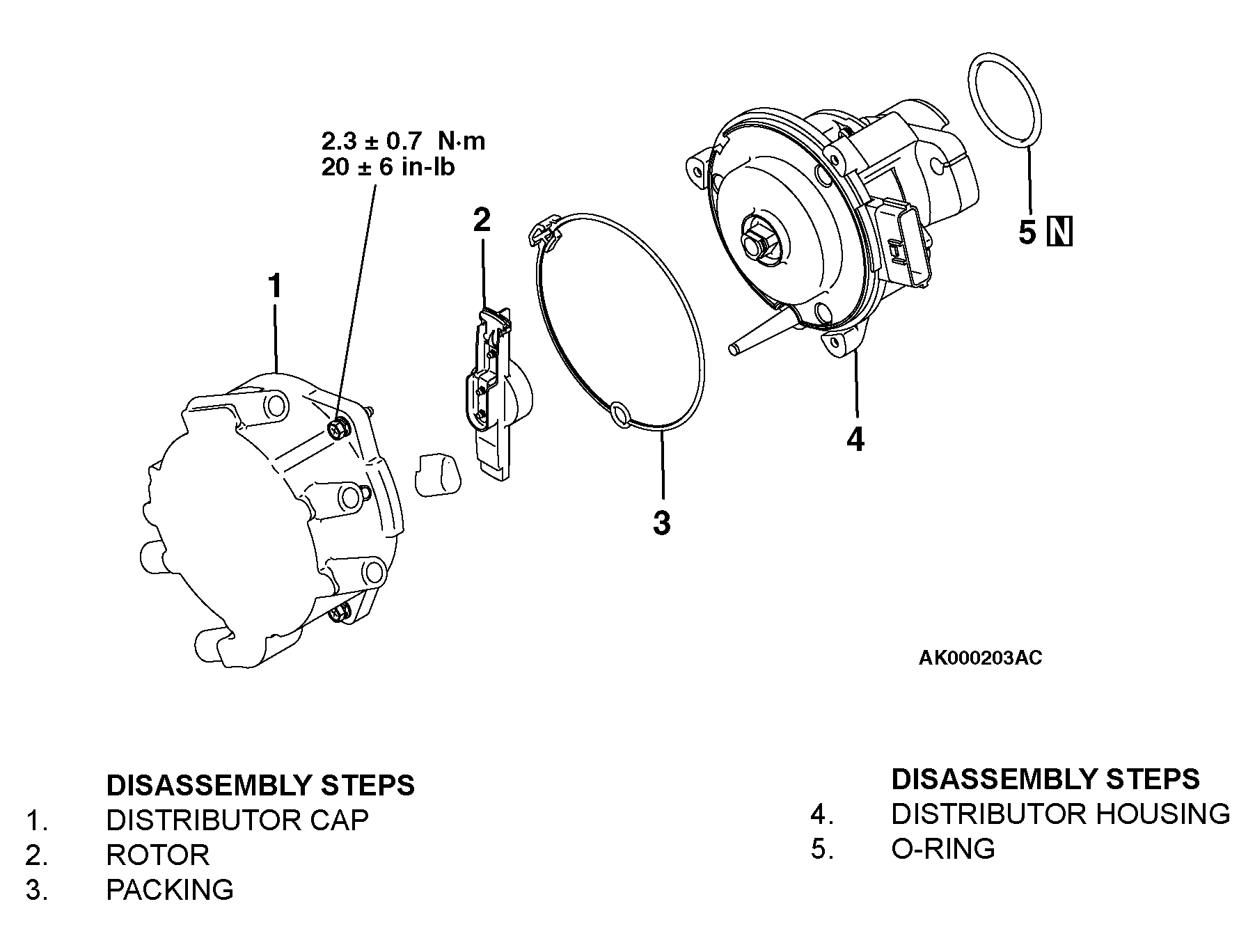

Fig 1: Exploded View Of Ignition System And Torque Specification
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
