O2 Sensor Locations - 2.7L

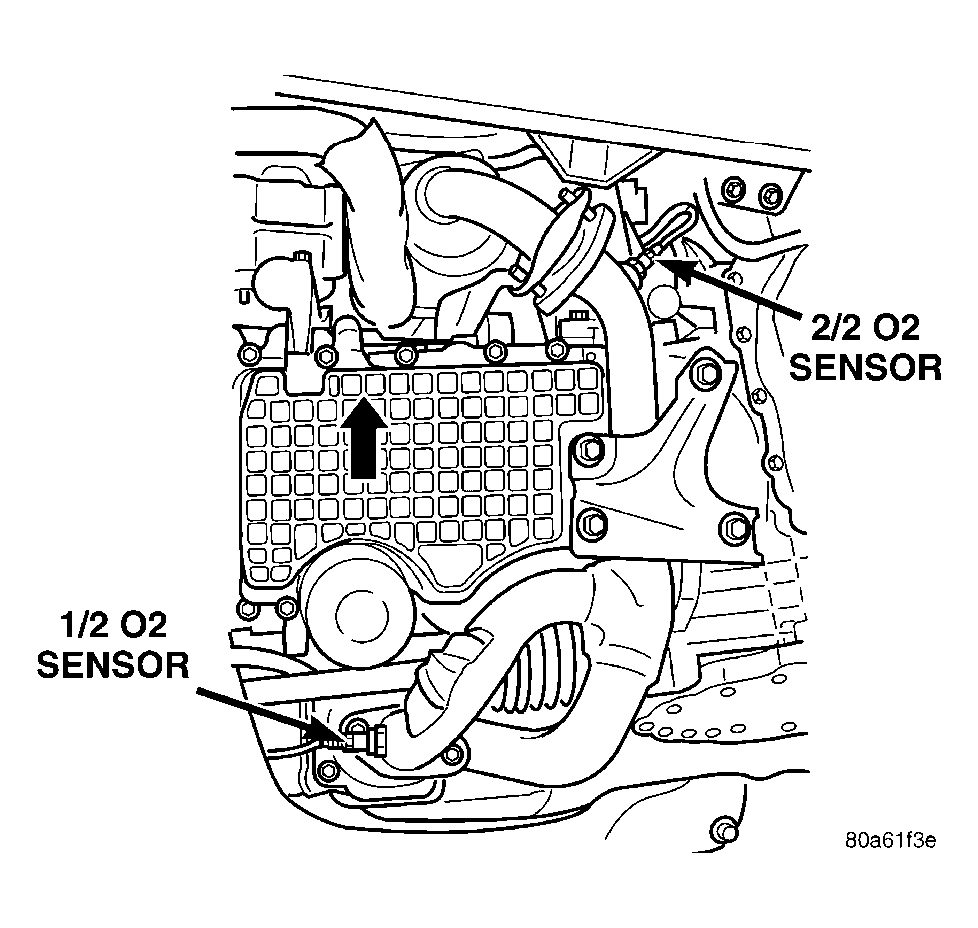

Fig 1: Identifying 1/2 and 2/2 O2 Sensor Component Location - 2.7L
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
