Battery Tray: Installation

  1. Position the battery tray in the vehicle.
  2. Connect the engine vacuum harness hose on the battery tray mounted vacuum reservoir.
  3. Position drainage hose and install the battery tray retaining fasteners. See Fig 1.

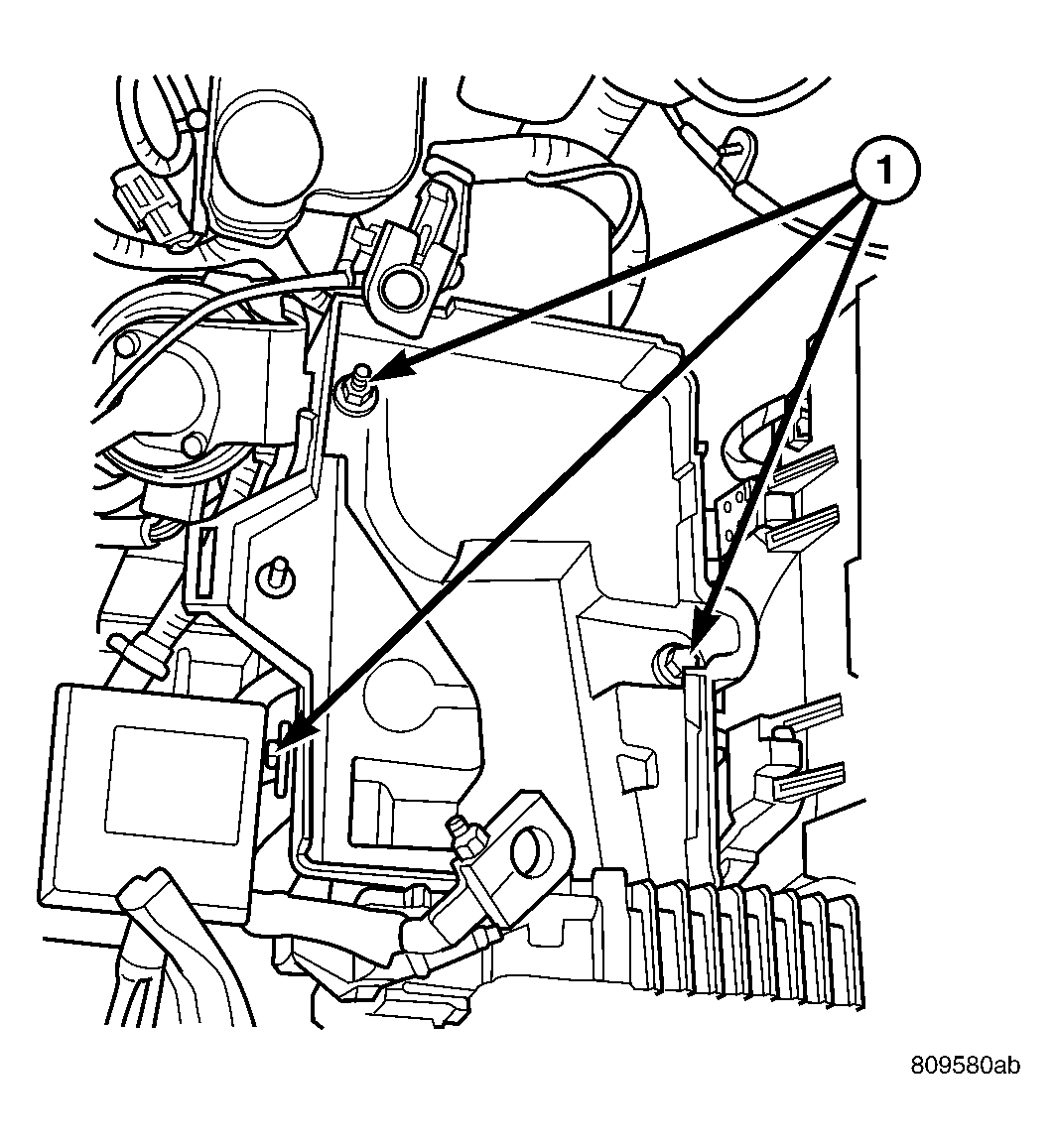

    Fig 1: Battery Tray Position & Orientation
    GC0024679Courtesy of DAIMLERCHRYSLER CORP.
    1 - BATTERY TRAY RETAINING FASTENERS
  4. Install the battery in the vehicle. (Refer to ELECTRICAL/BATTERY SYSTEM/BATTERY - INSTALLATION) .
  5. Connect the battery positive cable.
  6. Connect the battery negative cable.
