300 Base, 42RLE/VLP
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - DTCS P0481 To P0580
>>
Diagnosis And Testing
>>
P0571-Brake Switch 1 Performance
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

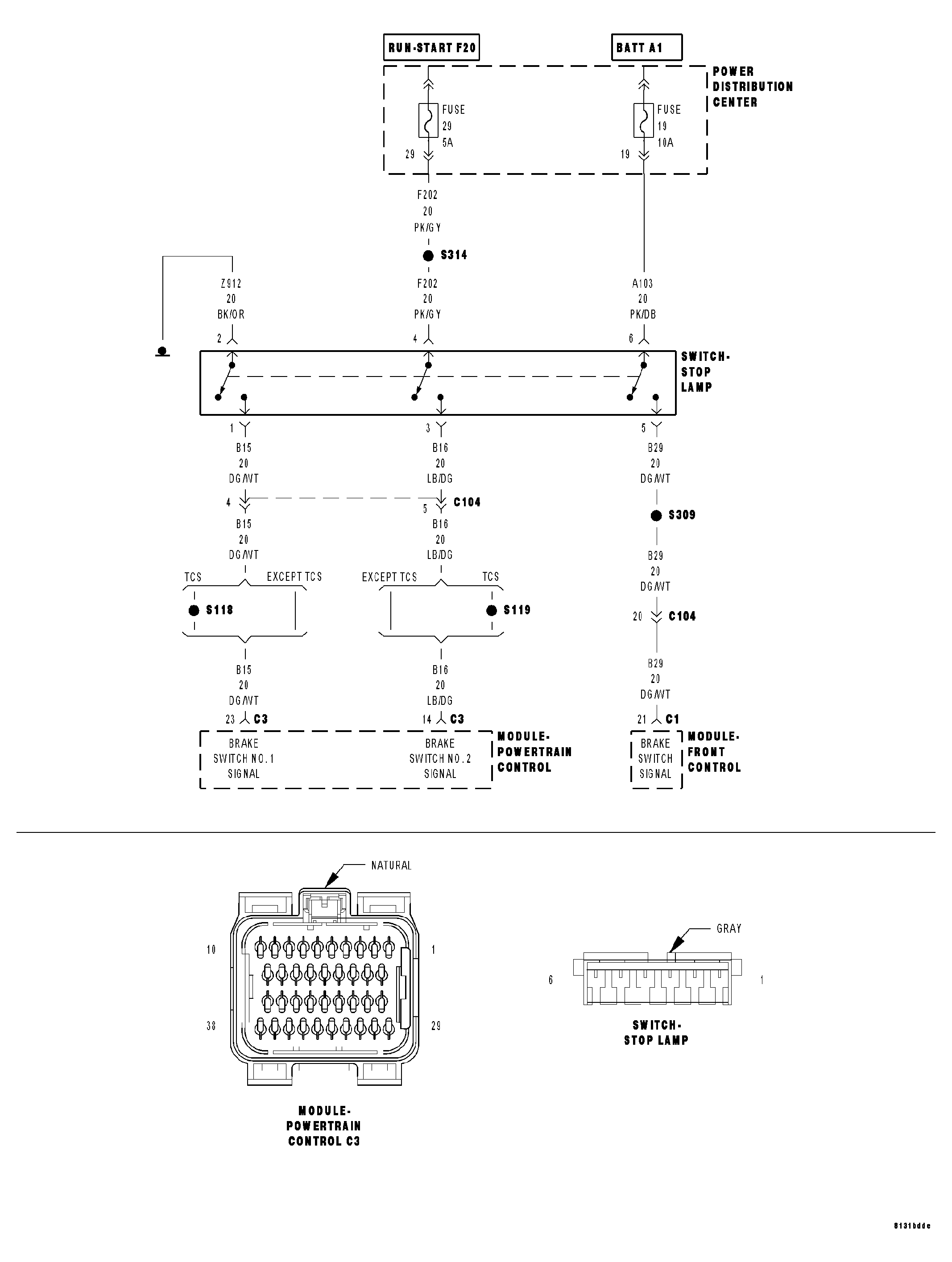

Fig 1: Stop Lamp Switch Circuit Schematic
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
