Home
>>
Chrysler
>>
2006
>>
300 Base, 42RLE/VLP
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - DTCS P0700 To P1897
>>
Diagnosis And Testing
>>
P1004-Short Runner Valve Control Performance
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

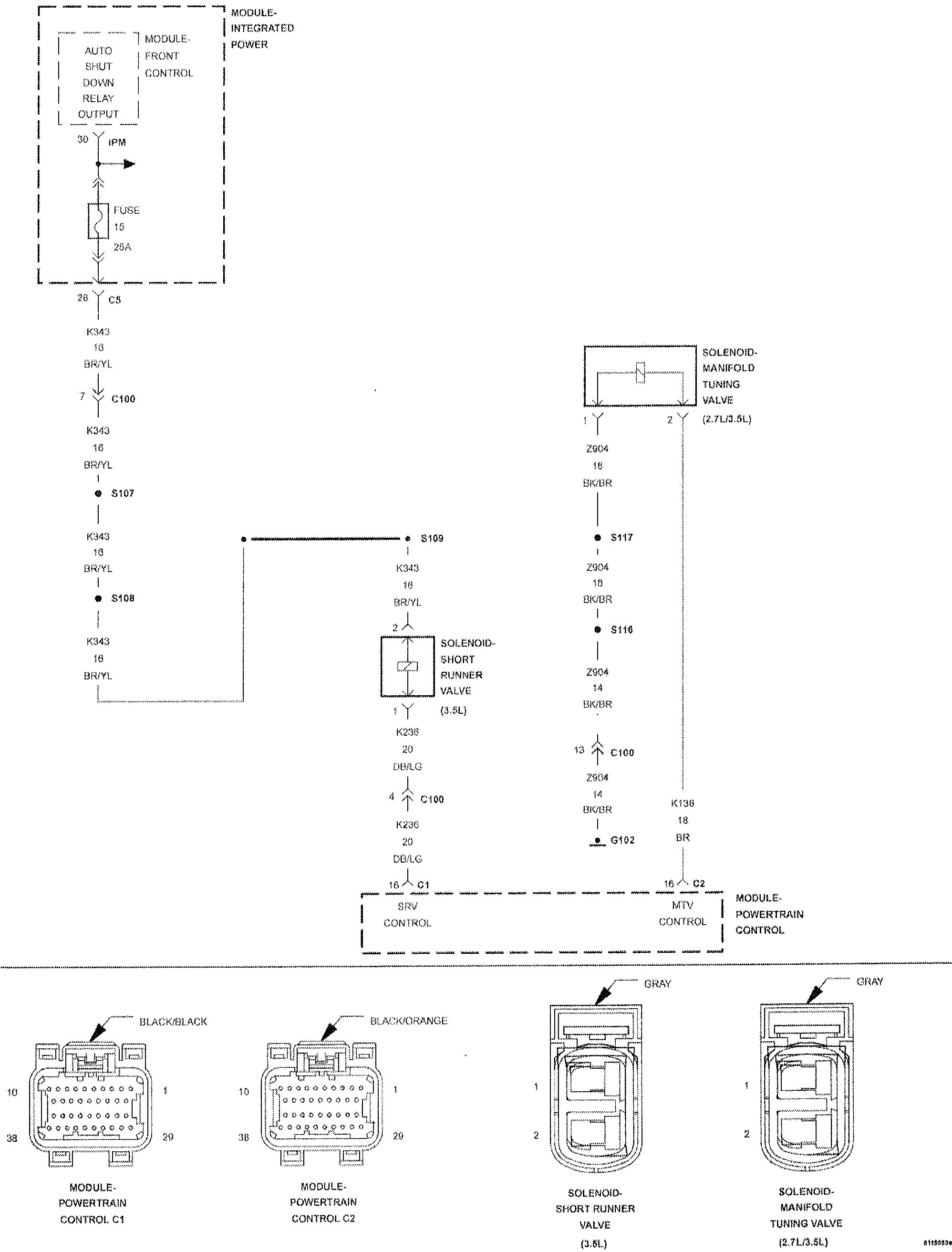

Fig 1: Short Runner Valve Control Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
