Air Pump: Removal: Notes

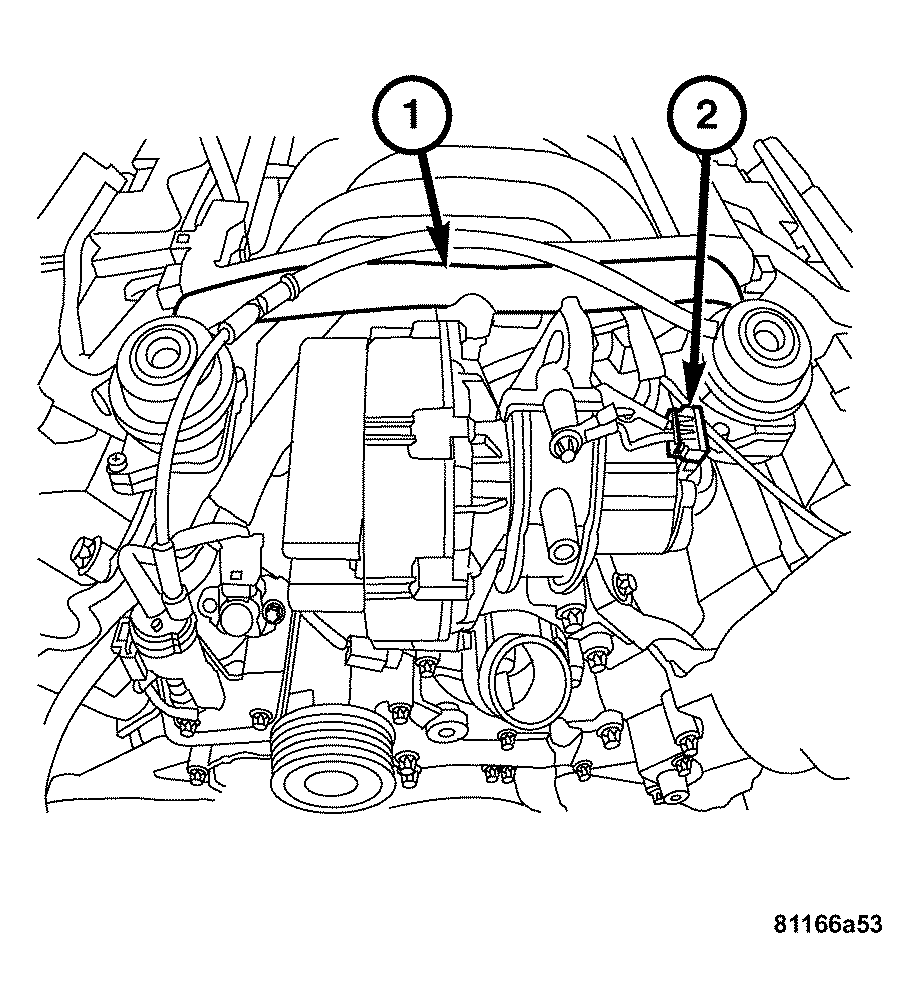

Fig 1: Locating Switchover Tube & Harness Connector

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect the negative battery cable.
Remove the air cleaner housing.
Disconnect the air pump switchover tube (1).
Disconnect the air pump harness connector (2).

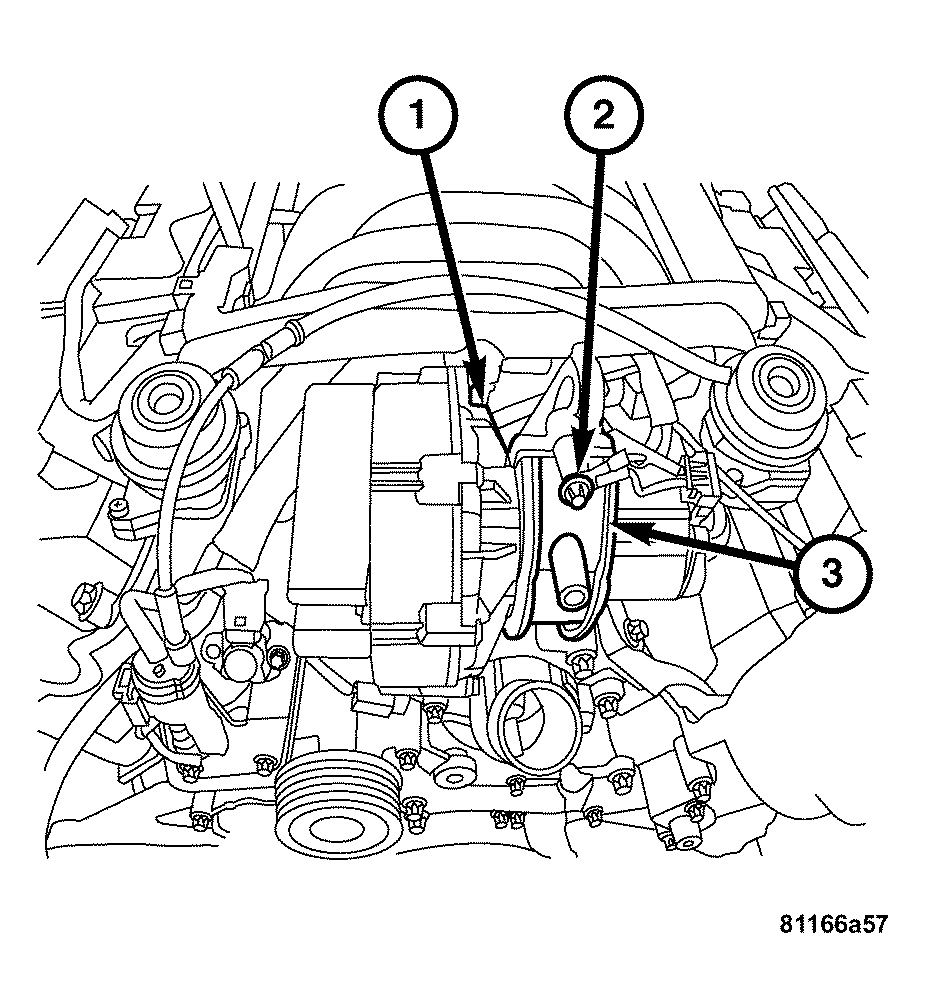

Fig 2: Locating Retaining Bolt & Bracket (3.2L)
Courtesy of DAIMLERCHRYSLER CORP.
Remove the air pump retaining bolt (2).
Remove the air pump (1) from the air pump retaining bracket (3).
