Stabilizer Bar: Description

WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

The bar extends across the front underside of the chassis and connects to the frame crossmember. The ends of the bar mount to the lower suspension arm. All mounting points of the stabilizer bar are isolated by bushings. See Fig 1.

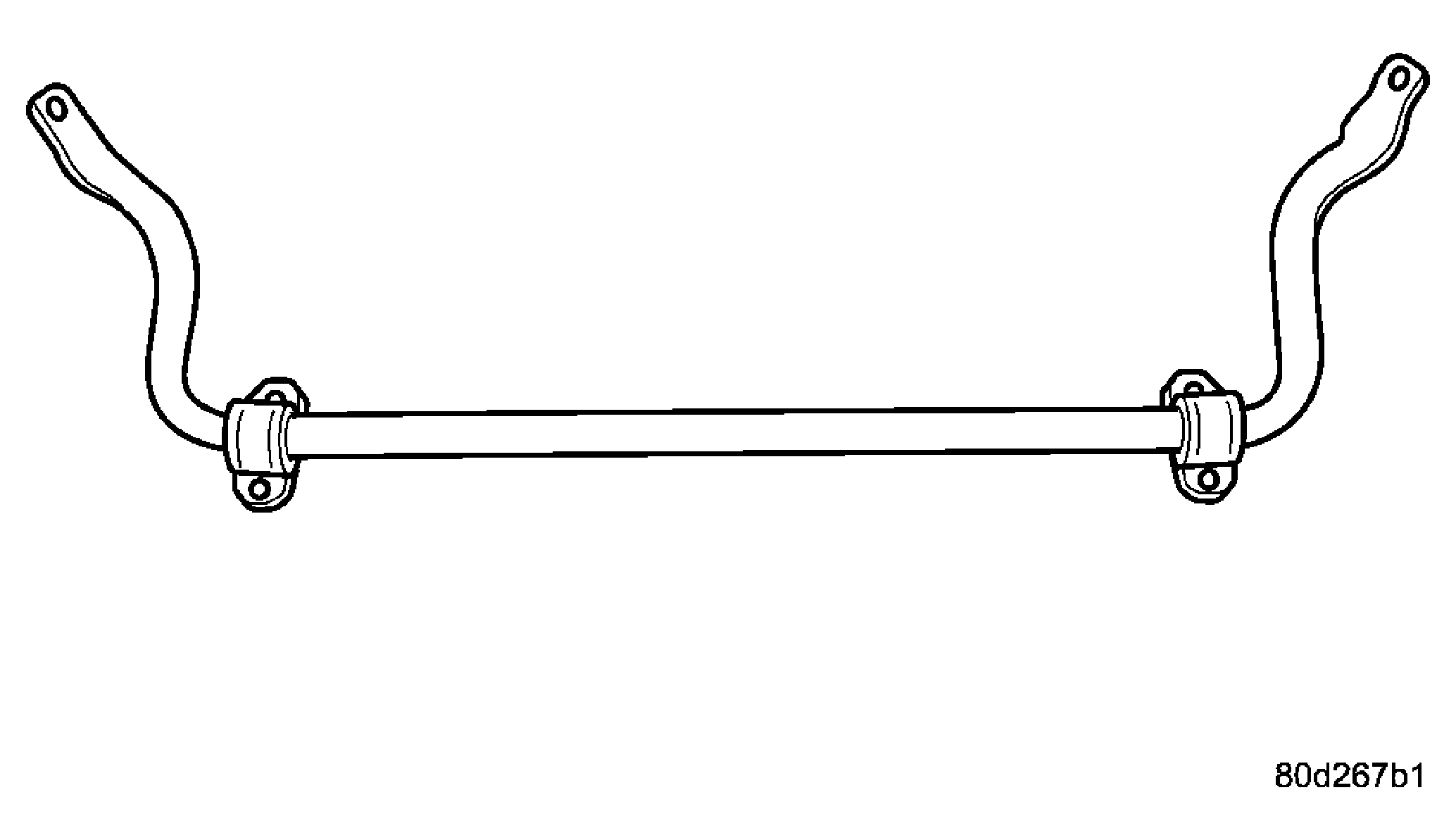

Fig 1: Stabilizer Bar
GC0036751Courtesy of DAIMLERCHRYSLER CORP.
