Stabilizer Link: Installation

WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

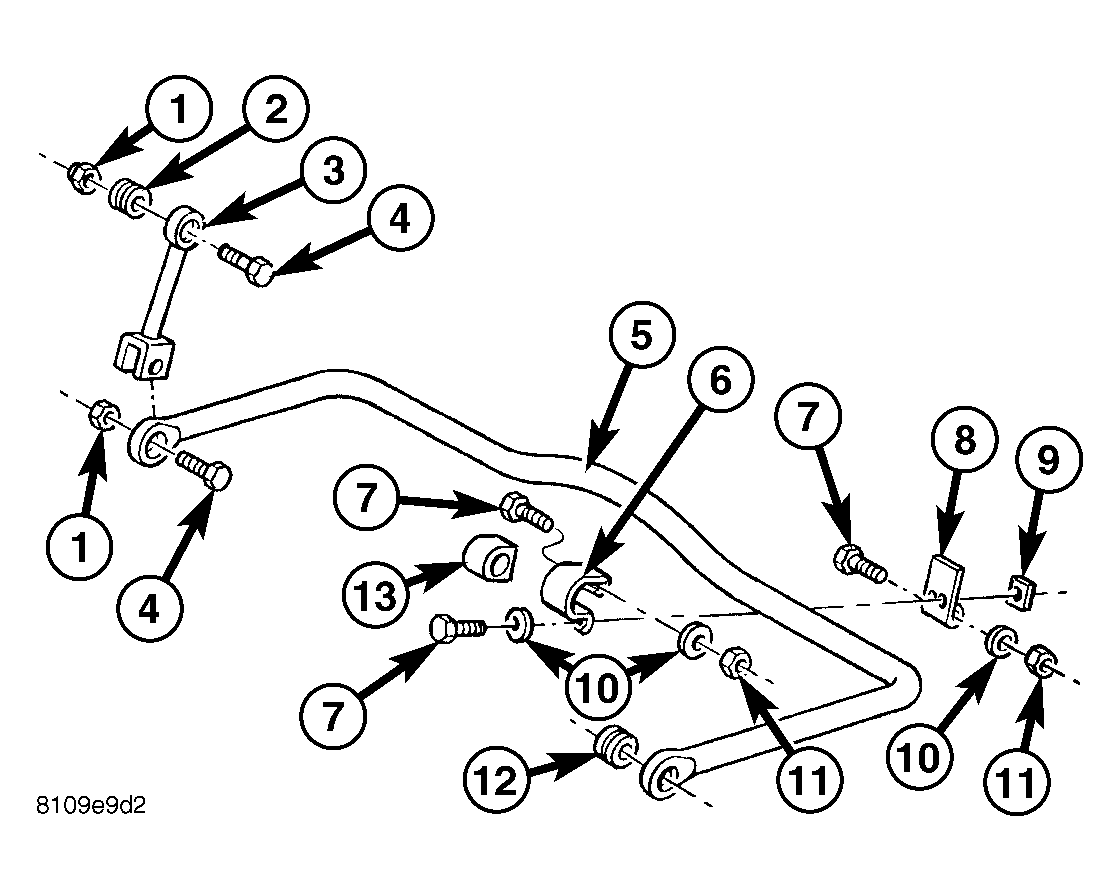

  1. Install the stabilizer bar to the stabilizer links and tighten to 95 N.m (60 ft. lbs.). See Figure.
  2. Lower the vehicle.
  3. Install the stabilizer link to the frame. Tighten to 95 N.m (60 ft. lbs.).
