Lower Control Arm: Installation

Fig 1: Locating Rear Lower Control Arm & Bolts

Courtesy of DAIMLERCHRYSLER CORP.

CAUTION: Vehicle must be at normal ride height before tightening components to specified torque.

Install the bolt attaching the rear lower control arm (4) to the rear wheel carrier. Tighten to 70 N.m (52 ft. lbs.)

Fig 2: Rear Shock Absorber Mounting
Courtesy of DAIMLERCHRYSLER CORP.
Install the rear shock absorber (1). (Refer to SUSPENSION/REAR/SHOCK - INSTALLATION) .

Fig 3: Locating Rear Spring
Courtesy of DAIMLERCHRYSLER CORP.
Install the rear spring (1). (Refer to SUSPENSION/REAR/SPRING - INSTALLATION) .

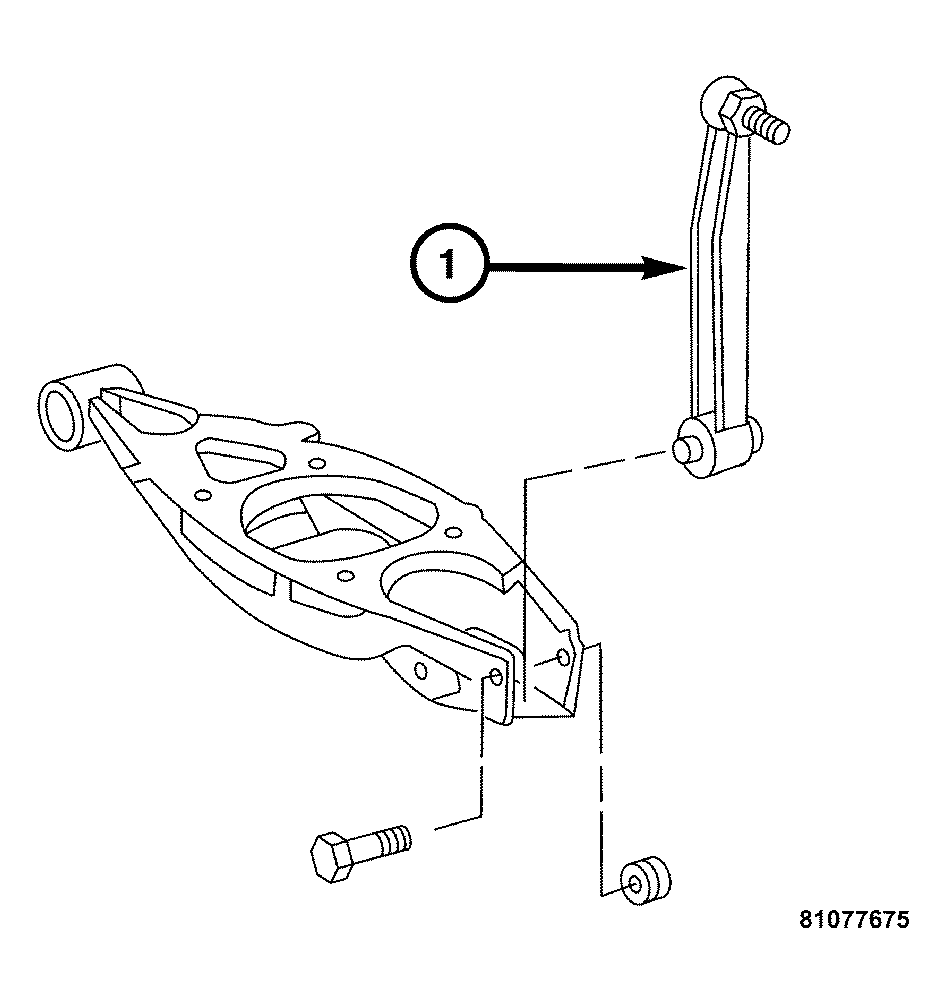

Fig 4: Locating Rear Stabilizer Bar Link
Courtesy of DAIMLERCHRYSLER CORP.
Install the rear lower control arm to the vehicle. Tighten to 70 N.m (52 ft. lbs.).
Install the rear stabilizer bar link (1) to the rear lower control arm. Tighten to 20 N.m (15 ft. lbs.).

Fig 5: Locating Cover Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Install the rear lower control arm plastic shield bolt (1).
Install the wheel and tire assembly.
Check vehicle alignment. (Refer to SUSPENSION/WHEEL ALIGNMENT - STANDARD PROCEDURE) .
