Component Locations

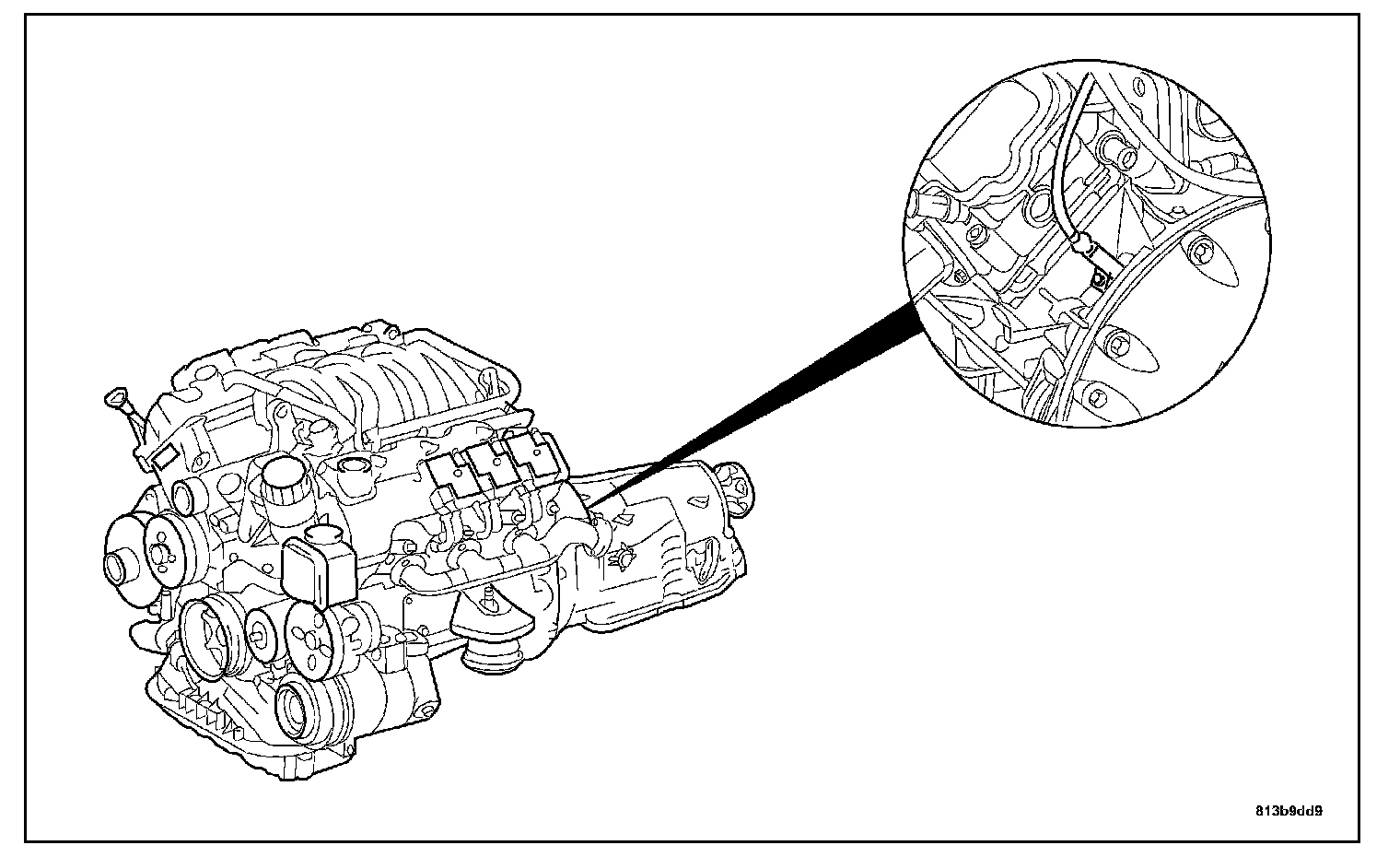

The Crankshaft Position Sensor (1) is located on the left side of the engine just forward of the transmission housing.
